MCS-U 300

€100,000.00
Tax excluded

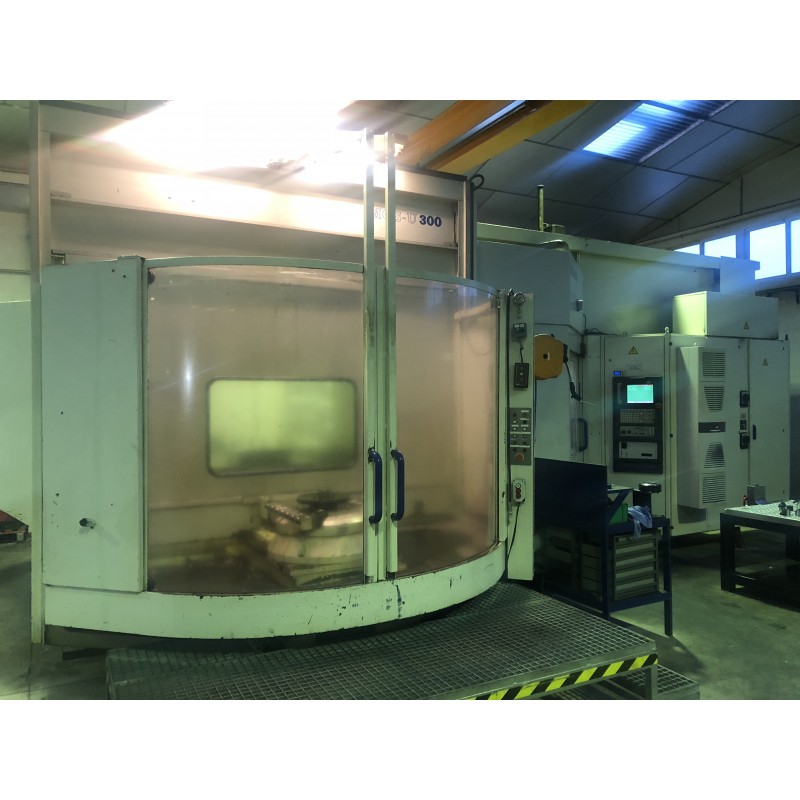

HELLER MCS-U 300 MACHINING CENTER
Share
Price €100,000.00
Condition Used - Working

Machine data

Condition Used - Working
Price type Fixed price

Technical specifications

Weight 23.500 kg
X travel 1.000 mm
Y travel 800 mm
Z travel 110 mm
Spindle speed 6.000 rpm
Tool changer slots 84

Occasional seller

J
Juan Roman Vilaplana Private seller
Member since 2018
1 ad online

SEND REQUEST

MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300

MACHINE TRAVELS X 1000 mm Y 800 mm Z 110 mm
X-Y-Z axis measurement DIRECT WITH LINEAR SCALES

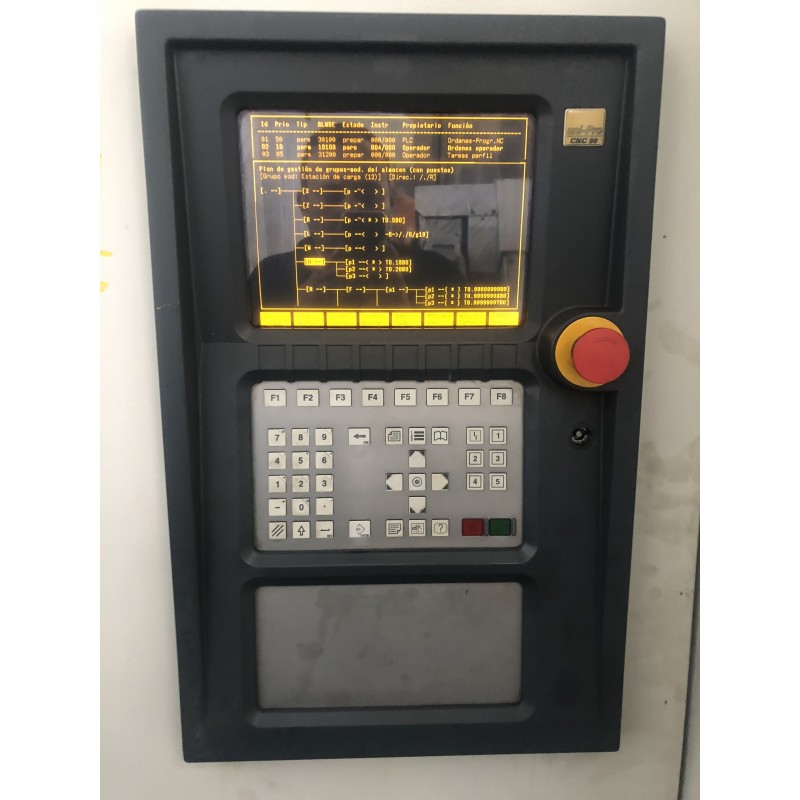

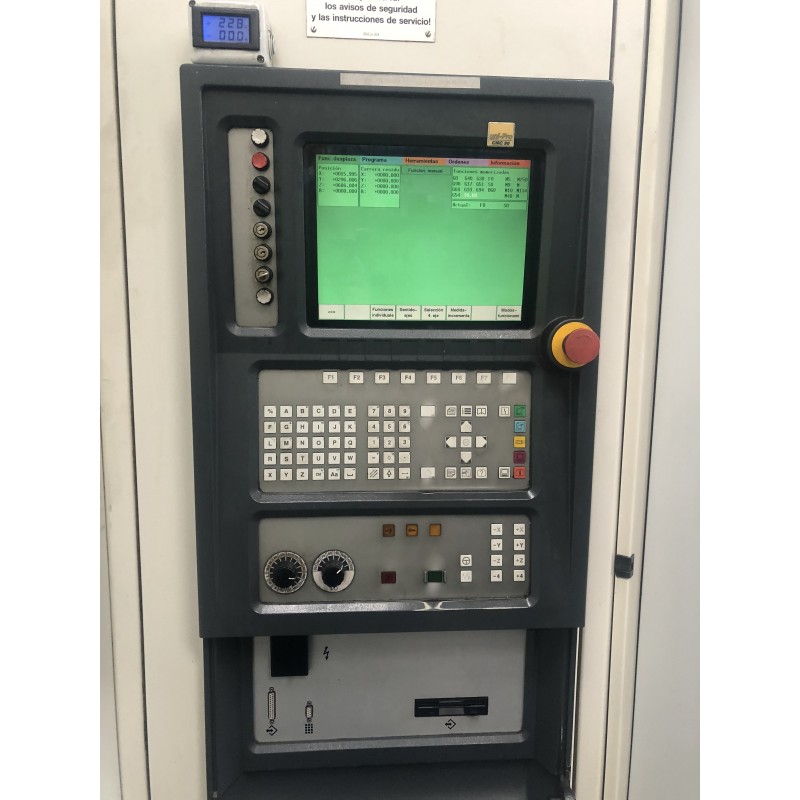

CNC heller uni-pro CNC90
Feeds 1-24,000 mm/min
Acceleration 2.0 m/s²
Taper din 69871 SK 50

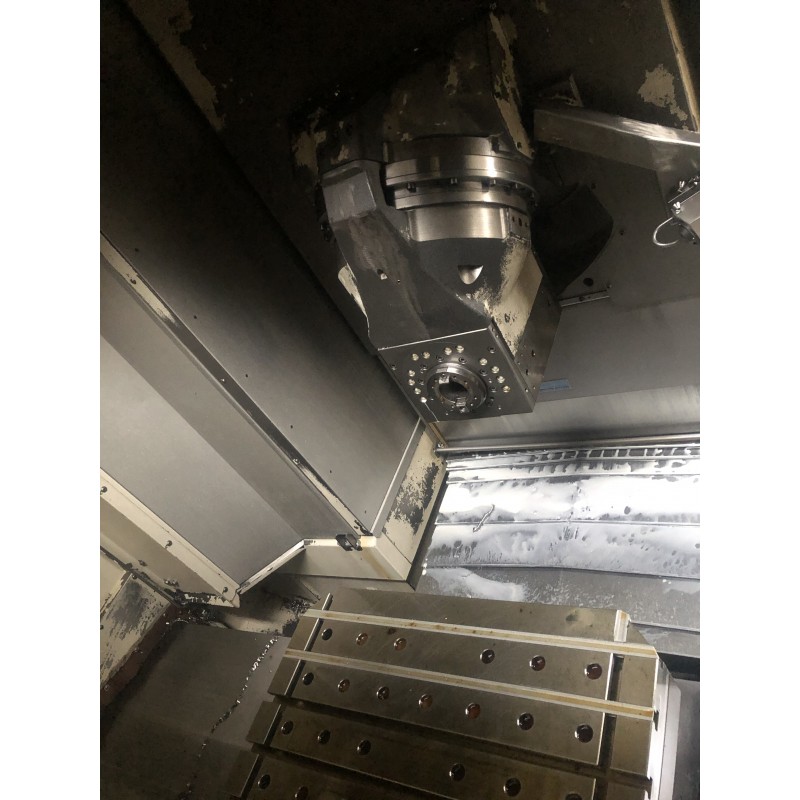

Spindle tilt Y/Z
Speed range 45-4,500 rpm 45-6,000 rpm

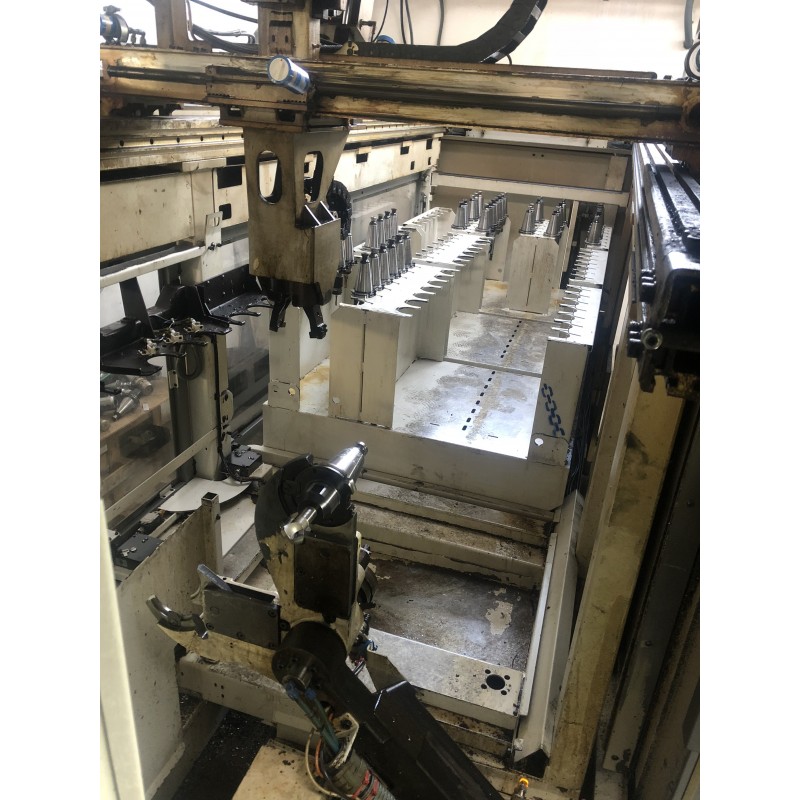

Tool magazine 84 units (100 all positions occupied)

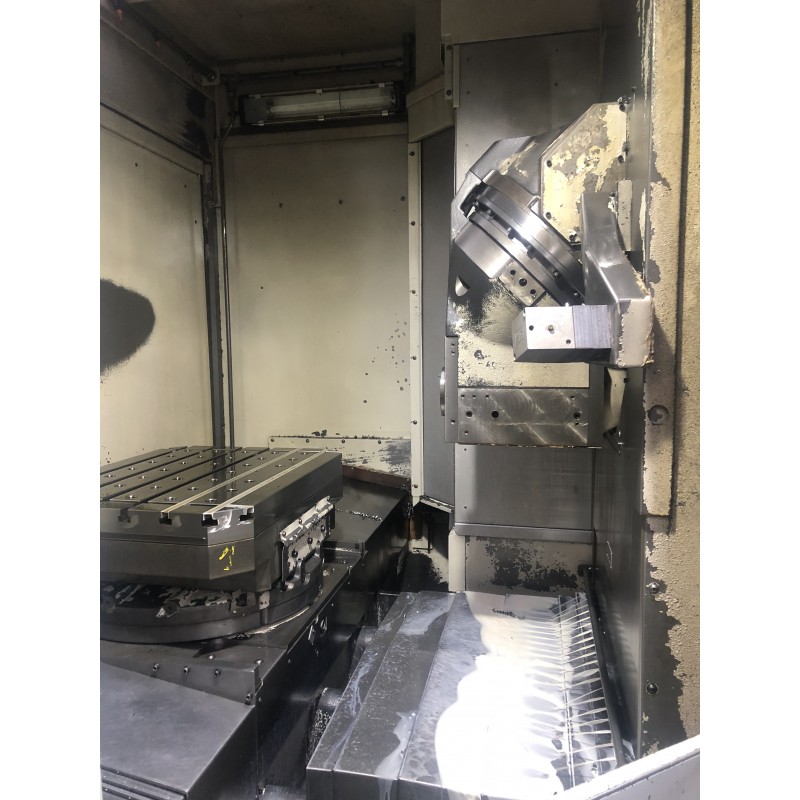

Table size 800x630 mm
Table rotation 360º x1
Pallet magazine (quantity 5)
Maximum table load 1250 kg
Chip conveyor (quantity 2)
Internal and external coolant 2 to 50 bar
Coolant tank capacity 600 liters
Machine weight 23,500 kg
Power 87 Kva
Compressed air 6 bar

  • Year: 1996
  • Cone type:: ISO-50
  • X travel (mm): I need the text you want me to translate. Please provide the Spanish text you'd like me to translate into English.
  • Y travel (mm): 800
  • Z travel (mm): I'm sorry, but you haven't provided any text to translate. Please provide the Spanish text you'd like me to translate into English.
  • Rotation speed (rpm): 6000
  • Power (kW): I need the text you want me to translate. Please provide it.
  • Chip extractor: YES
  • Table size (width) (mm): 800
  • Table size (length) (mm): 630
  • Tool changer (num tools): 86
  • Weight (kg): 23,000
  • Seller's country: España
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • X Travel: 1,000 - 2,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: Up to 300 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Tool changer: More than 60
  • Condition: Array
  • Weight: 0.000000
