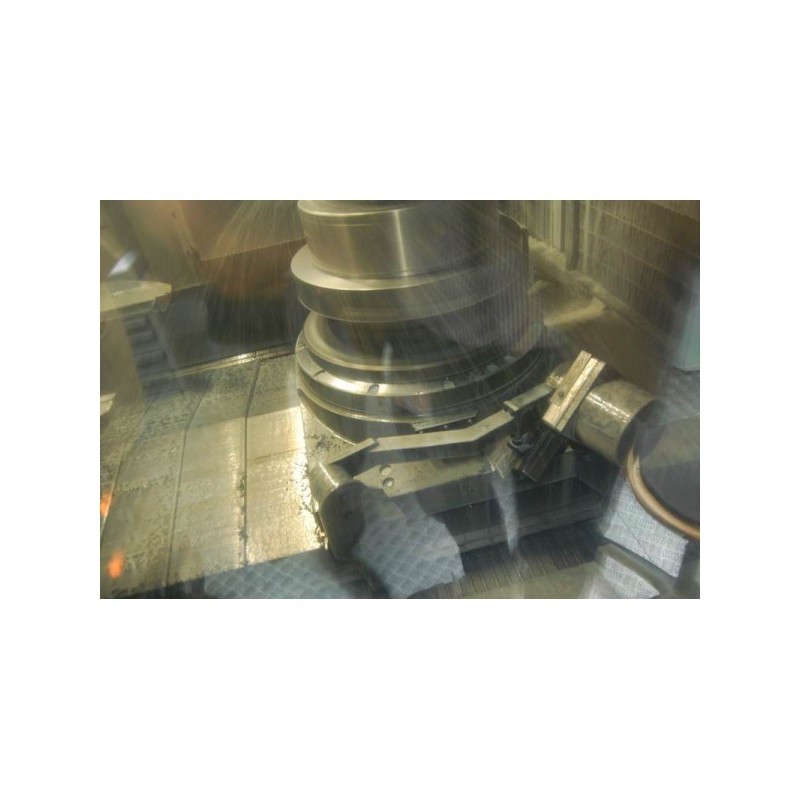

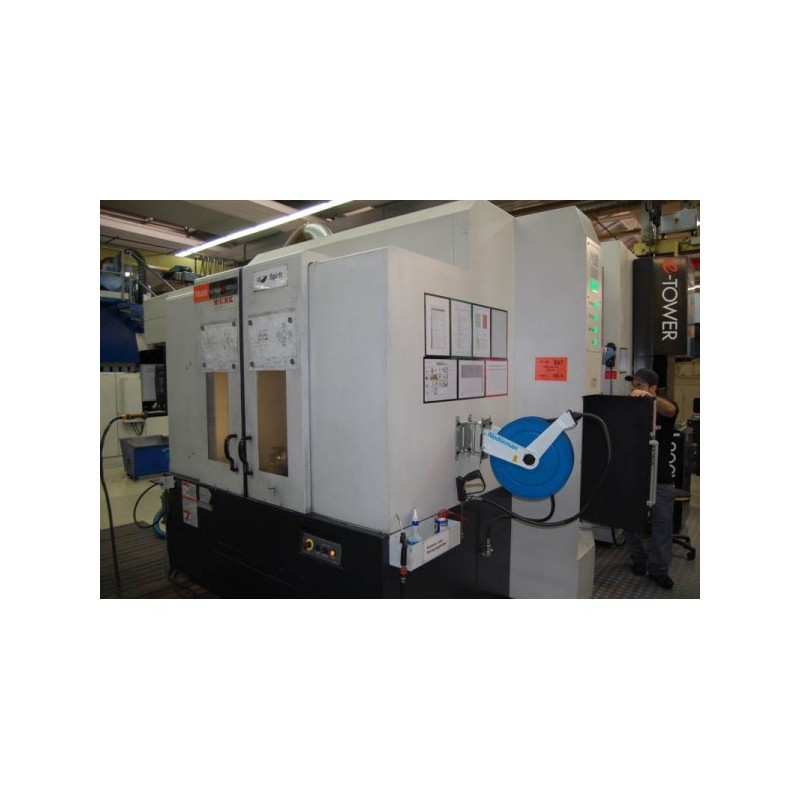

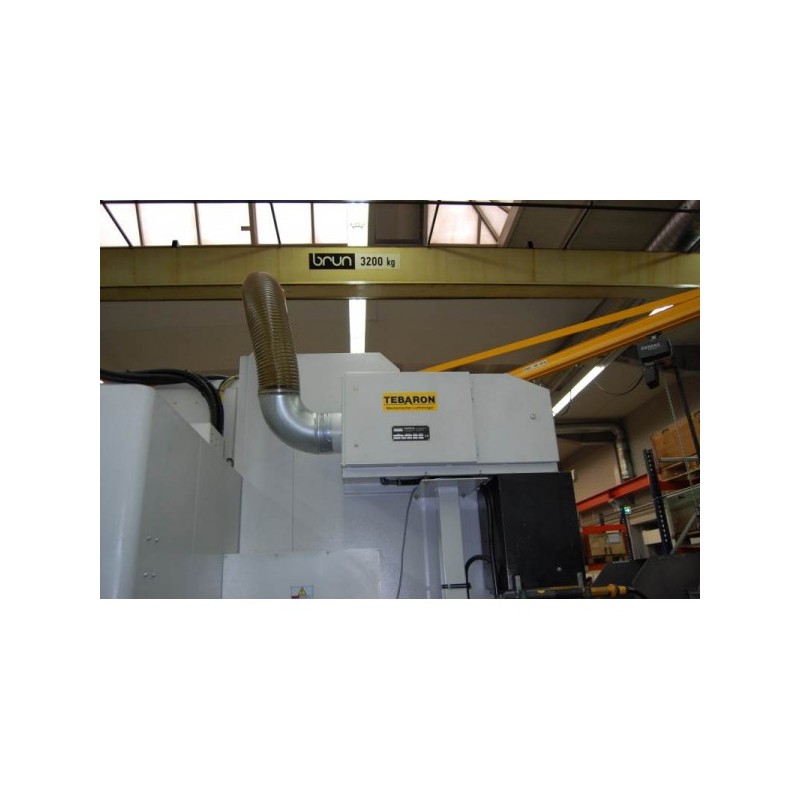

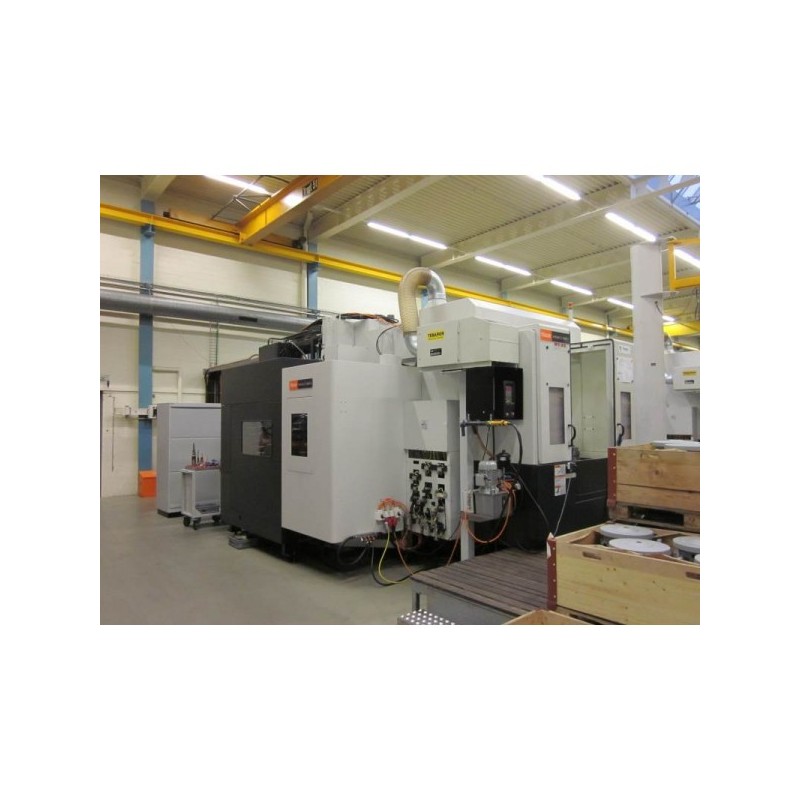

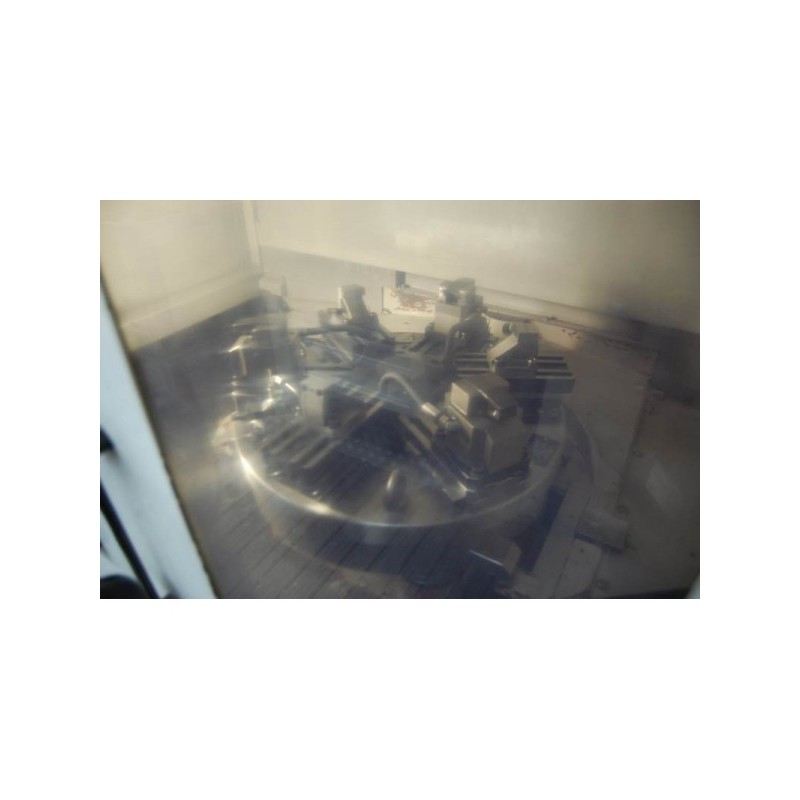

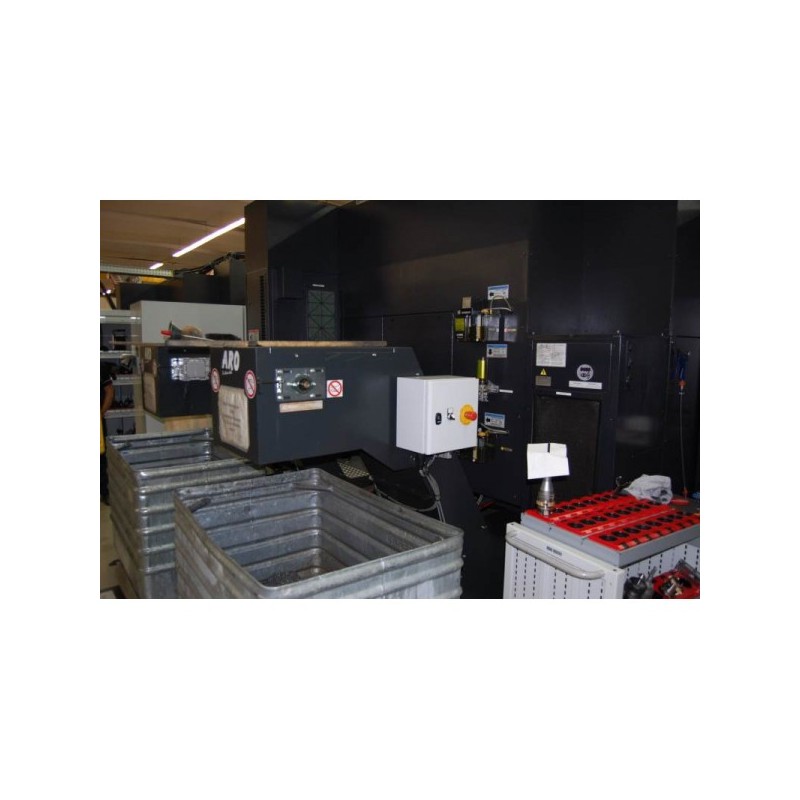

MAZAK model INTEGREX e-800V/5 II

USE 5-AXIS HORIZONTAL MACHINING CENTER WITH ROTARY TABLE AND ROTOPALLET
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Spindle power 26 kW
Tool changer slots 80

Occasional seller

M
MASTER GROUP Srl Private seller
Member since 2017
54 ads online

SEND REQUEST

MAZAK mod. INTEGREX e-800V/5 II
MAZAK mod. INTEGREX e-800V/5 II
MAZAK mod. INTEGREX e-800V/5 II
MAZAK mod. INTEGREX e-800V/5 II
MAZAK mod. INTEGREX e-800V/5 II
MAZAK mod. INTEGREX e-800V/5 II

YEAR: 2008
Y-axis travel: 1100 mm
Y-axis travel: 800 mm
Z-axis travel: 900 mm
SPINDLE: 12000 rpm; 26 kw; GREAT ADVANTAGE BT40
PALLET: N.2; 610 mm; 1000 rpm
MAXIMUM ALLOWED LOAD: 680 Kg
TOOL MAGAZINE: CHAIN-TYPE/80 POS
CONTROL UNIT: MAZATROL MATRIX
ACCESSORIES: HIGH-PRESSURE COOLANT; FUME EXTRACTOR; CHIP CONVEYOR; LASER TOOL PRESETTER; PORTABLE HANDWHEEL
NOTE: B AXIS HEAD + 120 ° /-30 °; MAX part dimensions: Diam 730 mm - height 1000 mm; DUAL CHIP CONVEYOR

  • Seller's country: Italia
  • State: Used - Functional
  • High: Up to 1,500 mm
  • Y travel: More than 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: More than 60
  • Condition: Array
  • Weight: 0.000000
