MCS-U 300

€100,000.00
Tax excluded

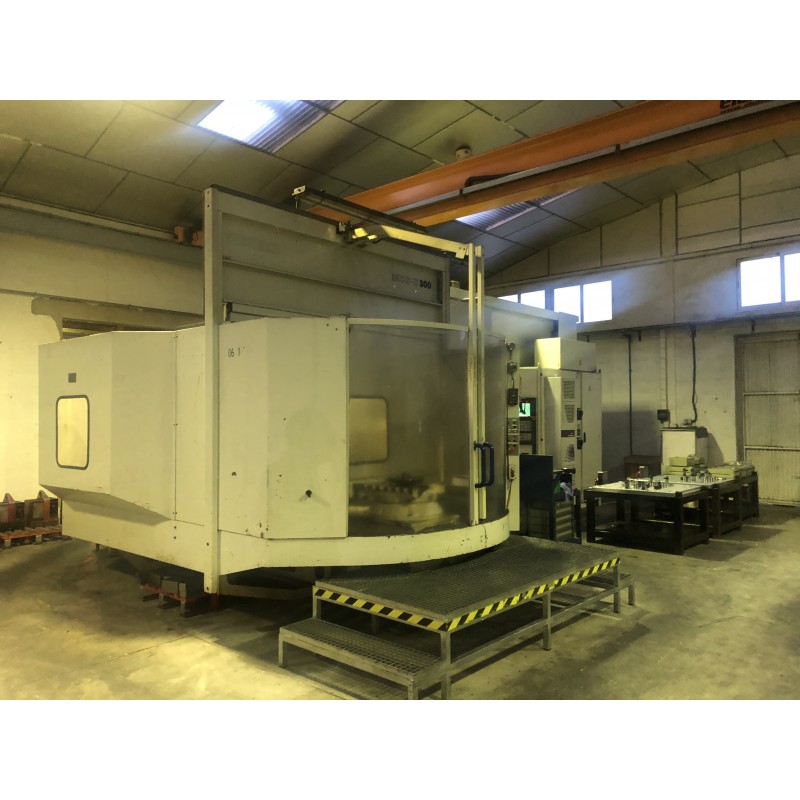

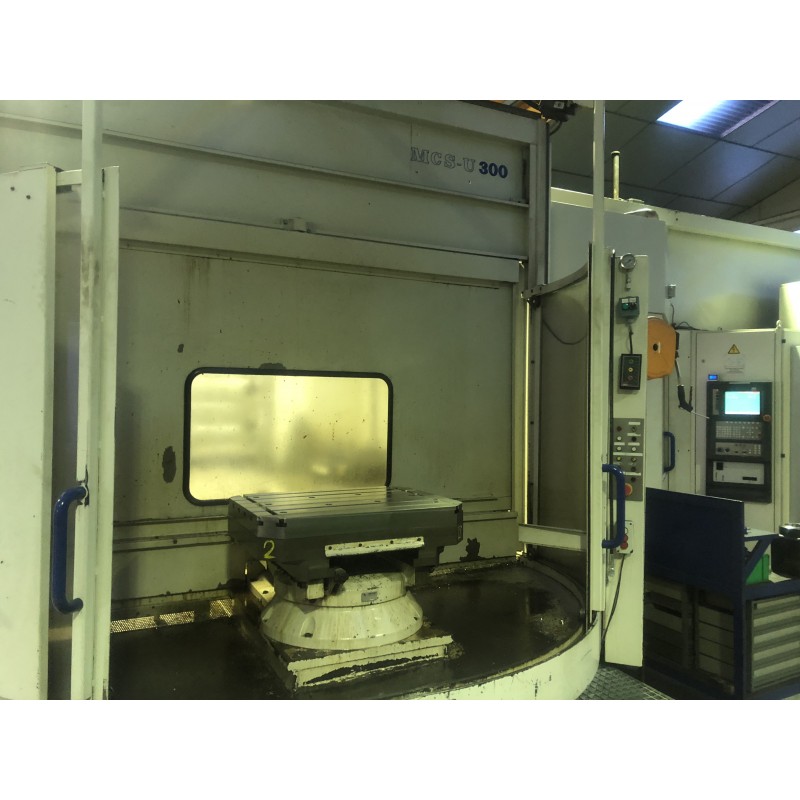

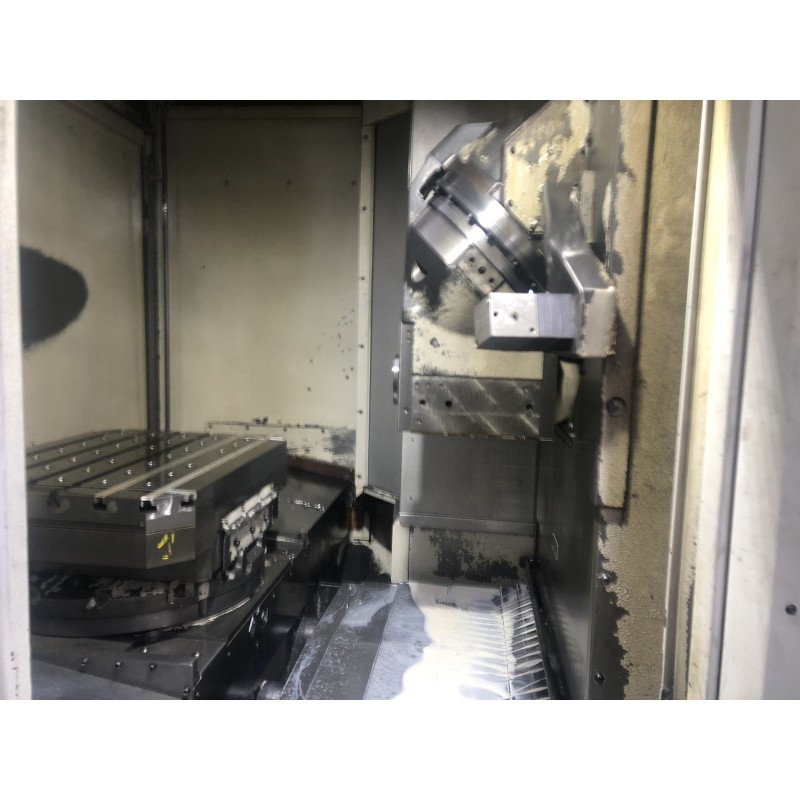

HELLER MCS-U 300 MACHINING CENTER
Share
Price €100,000.00
Condition Used - Working

Machine data

Condition Used - Working
Price type Fixed price

Technical specifications

Weight 23.500 kg
X travel 1.000 mm
Y travel 800 mm
Z travel 110 mm
Spindle speed 6.000 rpm
Tool changer slots 84

Occasional seller

J
Juan Roman Vilaplana Private seller
Member since 2018
1 ad online

SEND REQUEST

MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300
MCS-U 300

MACHINE TRAVELS X 1000 mm Y 800 mm Z 110 mm

X-Y-Z axis measurement DIRECT WITH LINEAR SCALES

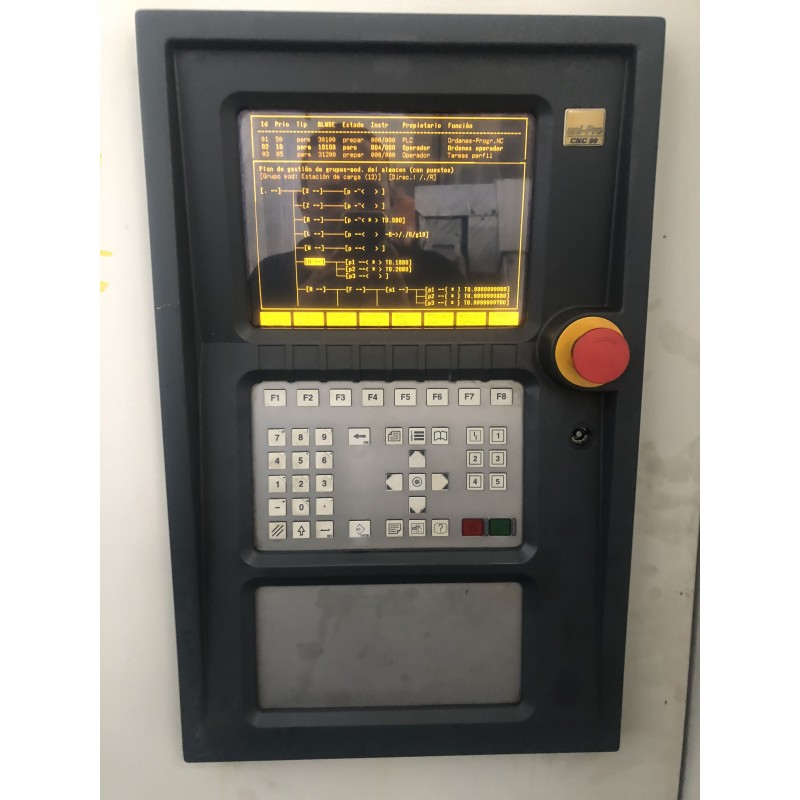

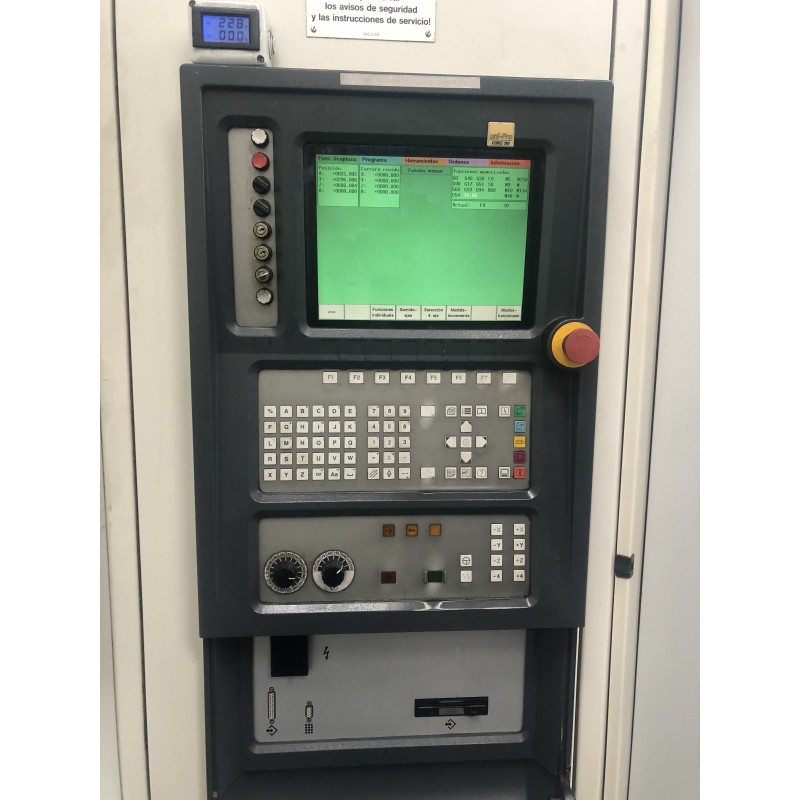

CNC heller uni-pro CNC90

Feed rates 1-24,000 mm/min

Acceleration 2.0 m/s²

DIN 69871 SK 50 taper

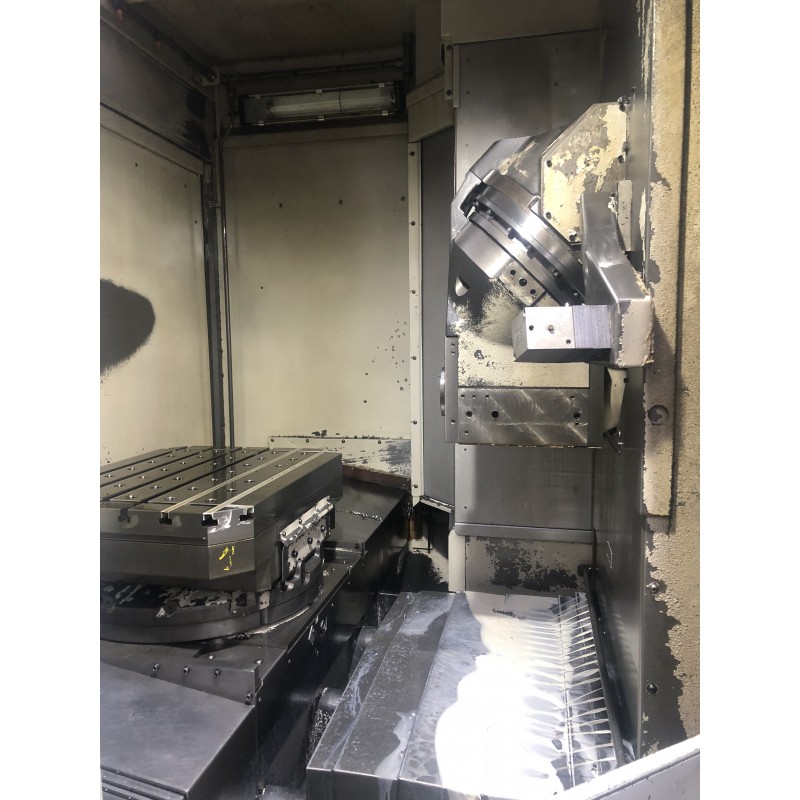

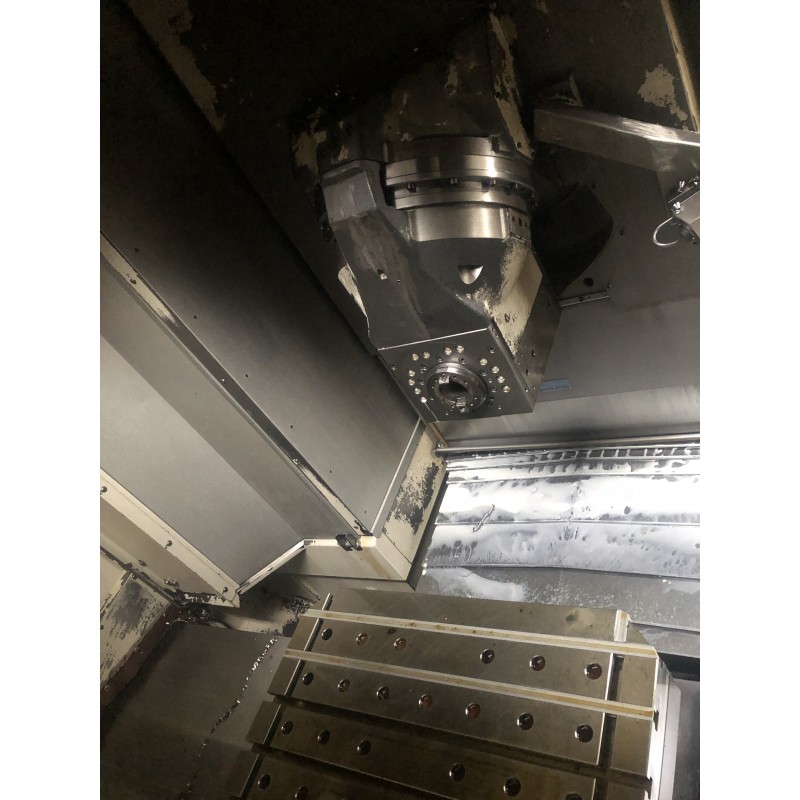

Spindle head rotation Y/Z

Speed range 45-4,500 rpm 45-6,000 rpm

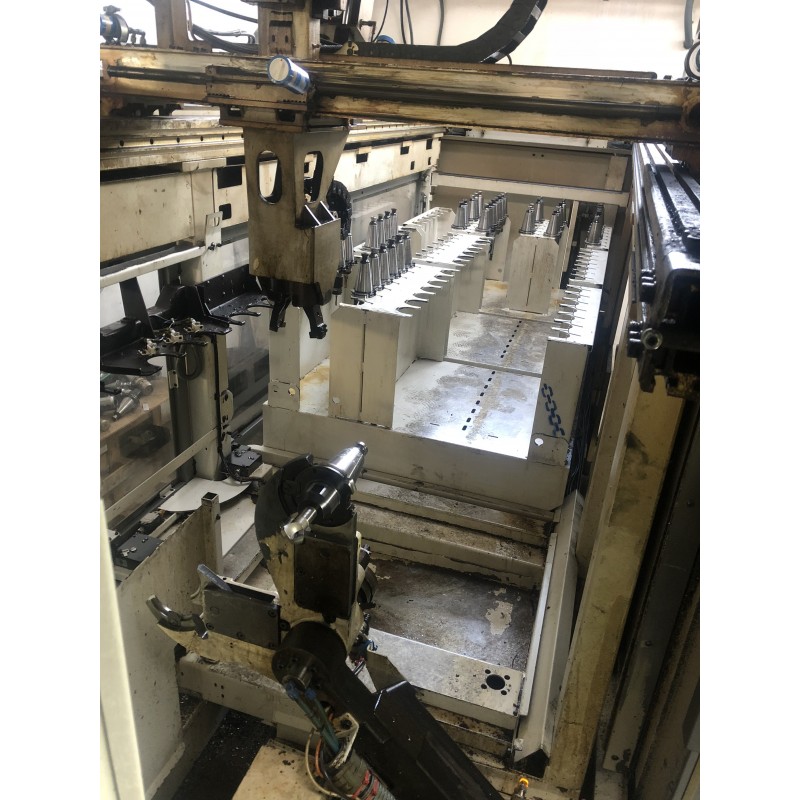

Tool magazine 84 units (100 when all positions occupied)

Table size 800x630 mm

Table rotation 360º x1

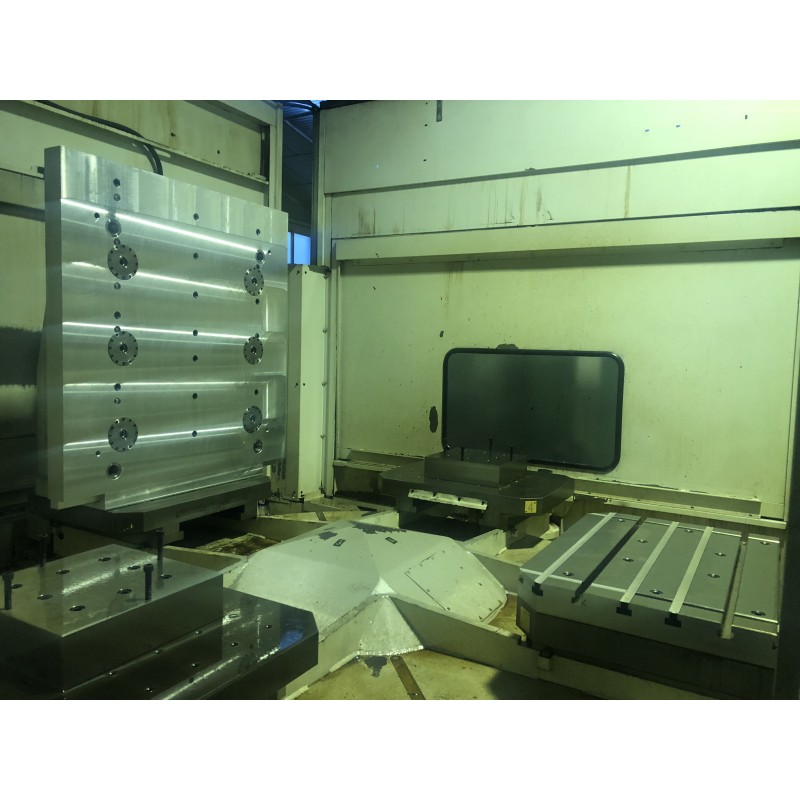

Pallet magazine (quantity 5)

Maximum table load 1250 kg

Chip conveyor (quantity 2)

Internal and external coolant 2 to 50 bar

Coolant tank capacity 600 liters

Machine weight 23,500 kg

Power 87 kVA

Compressed air 6 bar

  • Year: 1996
  • Cone type:: ISO-50
  • X travel (mm): I need the text you want me to translate. You only wrote "1000". Please provide the full text.
  • Y travel (mm): 800
  • Z travel (mm): I'm sorry, but you haven't provided any text to translate. Please provide the text you'd like me to translate from Spanish to English.
  • Rotation speed (rpm): 6000
  • Power (kW): I need the text you want me to translate. Please provide it.
  • Chip extractor: YES
  • Table size (width) (mm): 800
  • Table size (length) (mm): 630
  • Tool changer (num tools): I'm sorry, but the text you provided for translation appears to be incomplete. It only contains "86", which could be a number, a code, or part of a larger text. Could you please provide the full text you'd like me to translate from Spanish to English?
  • Weight (kg): 23,000
  • Seller's country: Spain
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • X Travel: 1,000 - 2,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: Up to 300 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Tool changer: More than 60
  • Condition: Array
  • Weight: 0.000000
