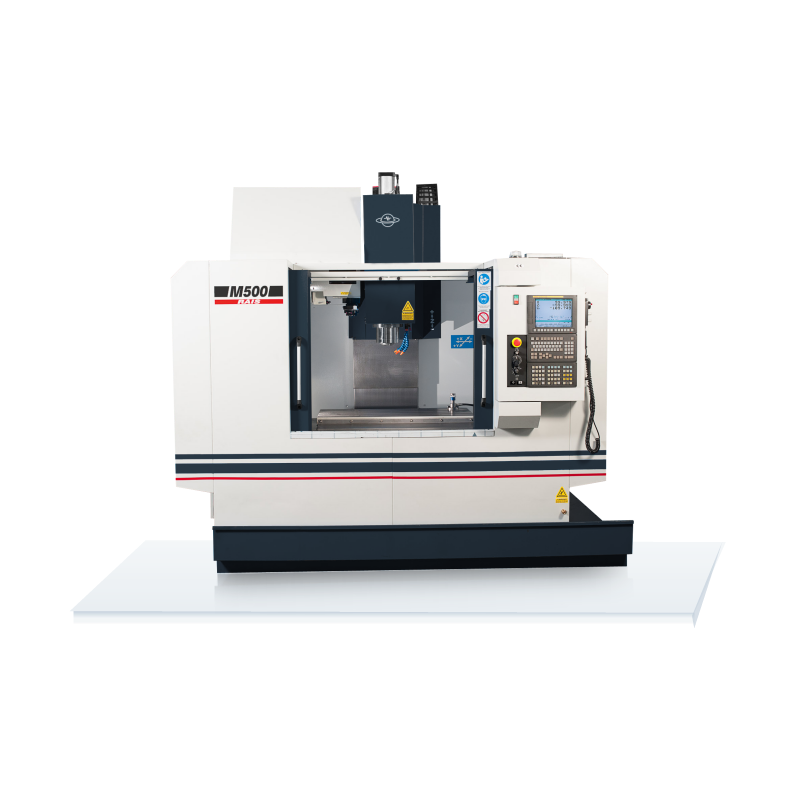

M500

MACHINE CAPACITY AND ADVANTAGES
24 Fast ATC tool change magazine - 2.8 sec.
High-quality gray cast iron castings. Optimal ribbed base, column, spindle housing, and table. Guaranteed for maximum rigidity and minimal deflection under applied load conditions.
Cartridge-type spindle, maintenance-free. High-precision bearings (class P4). Maximum axial clamping force eliminates vibrations under heavy cutting conditions.
Linear guides along all three axes: size 35, zero backlash. Stable cutting under full load conditions. Minimal friction when in motion. High precision and high speed without the need for adjustment during operational life.
All ball screws - high precision, class P3, Ø40 mm OD, with double nut, preloaded to control backlash. High positioning accuracy and smooth operation.
Directly coupled to AC servo motors on ball screws in all axes: guaranteed excellent interpolation accuracy.
Telescopic covers along all three axes: long service life for ball screws and linear guides; fast and efficient chip flushing with coolant.
Fully enclosed electrical cabinet with heat exchanger, in compliance with CE requirements.
Fully enclosed splash guard. Swiveling CNC control panel. Maximum convenience for setup and operation.
Automatic air blast during tool change ensures cleanliness of the taper and spindle holder.
New machine
Manufactured in the EU
Note: We provide adjustment upon request.
