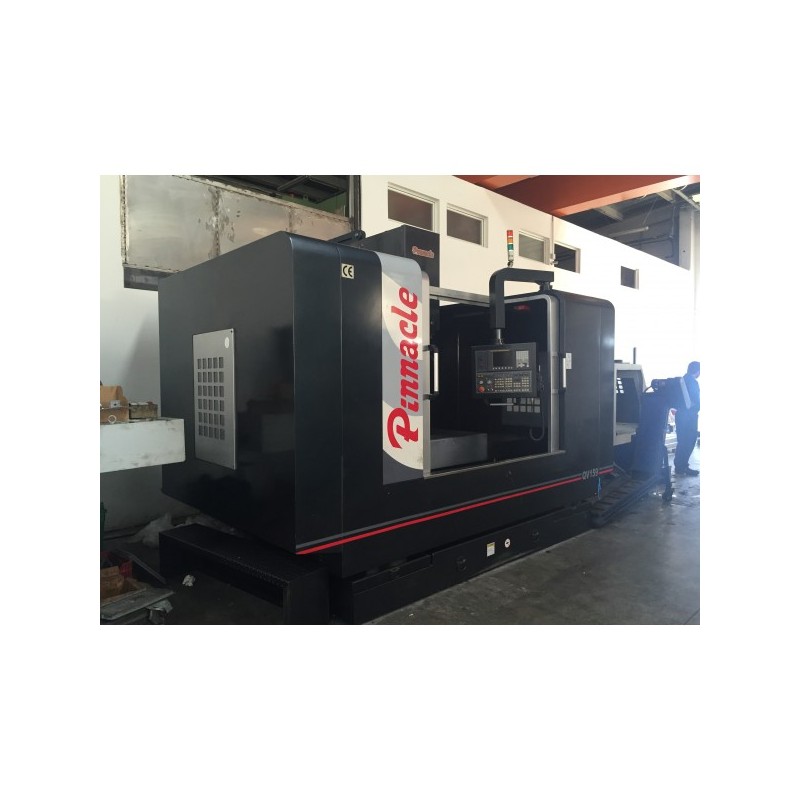

PINNACLE QV159

CNC machining center
Control type: FANUC Oi MC
Table dimensions: 1700 x 850mm
Axis travels X/Y/Z: 1500mm, 900mm, 850mm
Maximum table load: 2000Kg
ISO 40 taper
Spindle speed: 12000 rpm
Spindle power: 15Kw
Rapid traverse rates: 16/16/12 m/min
24-position RANDOM tool changer
Operating hours: 8500
Spindle hours: 4500
Year of manufacture: 2008
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 2.000 kg
Length 1.700 mm
Width 850 mm
Control type CNC
CNC control brand Fanuc
X travel 1.500 mm
Y travel 900 mm
Z travel 850 mm
Spindle power 15 kW
Tool changer slots 24

Occasional seller

W
Worldnet Comerce Private seller
Member since 2017
32 ads online

SEND REQUEST

PINNACLE QV159

CNC machining center
Control type: FANUC Oi MC
Table dimensions: 1700 x 850mm.
Axis travels X/Y/Z: 1500mm, 900mm, 850mm.
Maximum table load: 2000Kg
ISO 40 taper,
Spindle speed: 12000 rpm.
Spindle power: 15Kw,
Rapid traverse rates: 16/16/12 m/min.
RANDOM tool changer with 24 positions
Operating hours: 8500
Spindle hours: 4500
Year of manufacture: 2008.

  • Year: 2008
  • Cone type:: BT-40
  • X travel (mm): 1500
  • Y travel (mm): 900
  • Z travel (mm): 850
  • Chip extractor: YES
  • Seller's country: España
  • State: Used - Functional
  • Weight: 1,000 - 2,500 kg
  • Long: 1,000 - 2,000 mm
  • Width: Up to 1,000 mm
  • Control type: CNC
  • X Travel: 1,000 - 2,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: 20 - 30
  • CNC control brand: Fanuc
  • Condition: Array
  • Weight: 0.000000
