CF25/25 (625027)

Correa

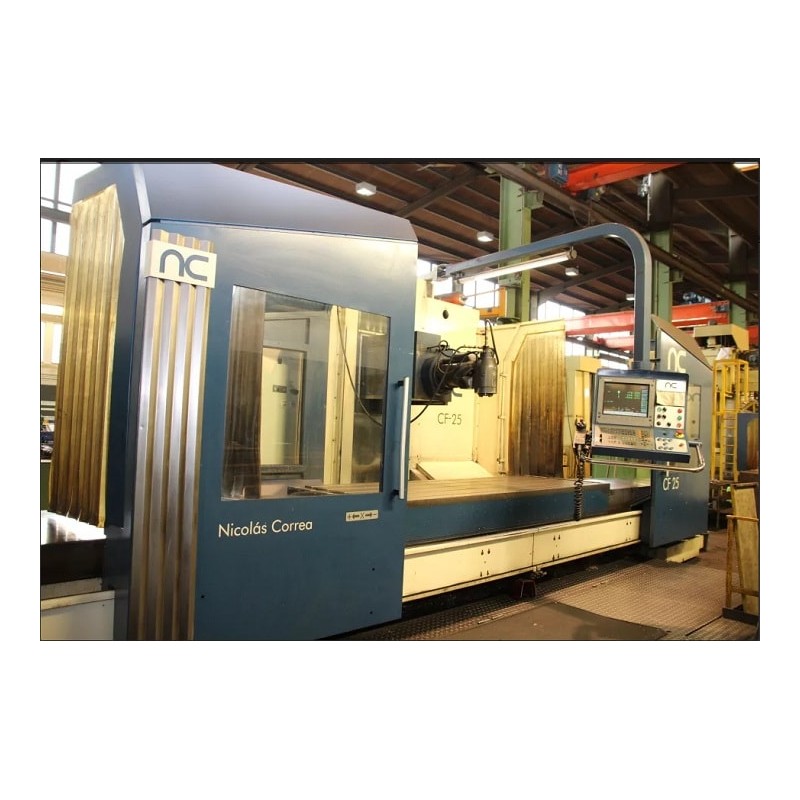

Fixed bed milling machine CORREA CF25/25 (S/N: 625027)
Year of manufacture: 2004
Year of reconstruction: 2018

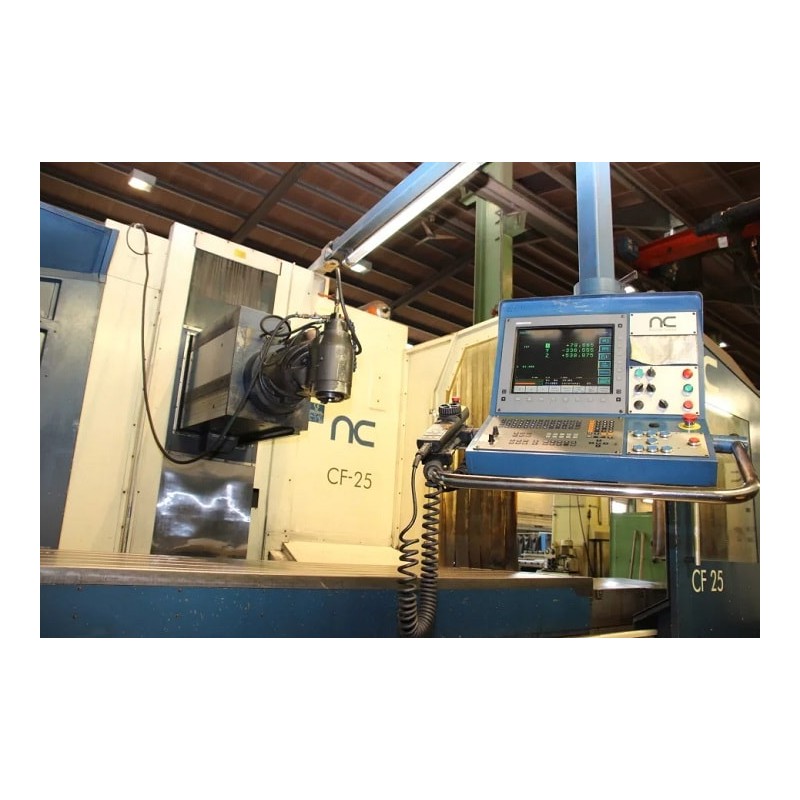

CNC numerical control HEIDENHAIN TNC-530
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer CORREA
Condition Used - Working
Price type On request

Technical specifications

Length 7.750 mm
Width 3.100 mm
Height 4.400 mm
X travel 2.500 mm
Y travel 1.000 mm
Z travel 1.000 mm
Spindle speed 4.000 rpm
Spindle power 22 kW
Spindle taper ISO 50

Occasional seller

N
NC SERVICE MILLING MACHINES, S.A. Private seller
Member since 2017
33 ads online

SEND REQUEST

CORREA CF25/25 (625027)
CORREA CF25/25 (625027)
CORREA CF25/25 (625027)

Table dimensions: 2.800 x 1000 mm
Number of slots: 5
Slot dimensions: 22mm
X/Y/Z travel (mm): 2.500 / 1.000 / 1.000 mm
Head: Universal manual (U22)
Tool clamping: Hydraulic
Taper: ISO 50 – DIN 69871
Speed range: 20 –4.000 rpm
Spindle power: 22 kW
Working feeds: 5 - 5.000 mm/min
Rapid traverses: 20.000 mm/min
Maximum weight on table: 6.000 kg
Approximate machine weight: 20.000 kg
Machine dimensions: 7750 x 3100 x 4400 mm
ACCESSORIES:
Electronic handwheel: HR-410
Enclosure
Guaranteed

  • Seller's country: Spain
  • State: Used - Functional
  • Weight: Up to 500 kg
  • Long: More than 5,000 mm
  • Width: More than 3,000 mm
  • High: More than 3,500 mm
  • X Travel: 2,000 - 3,000 mm
  • Y travel: More than 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: 15 - 30 kW
  • CNC spindle cone: ISO 50
  • Condition: Array
  • Peso: 0.000000
