A30/40 (6300110)

Correa

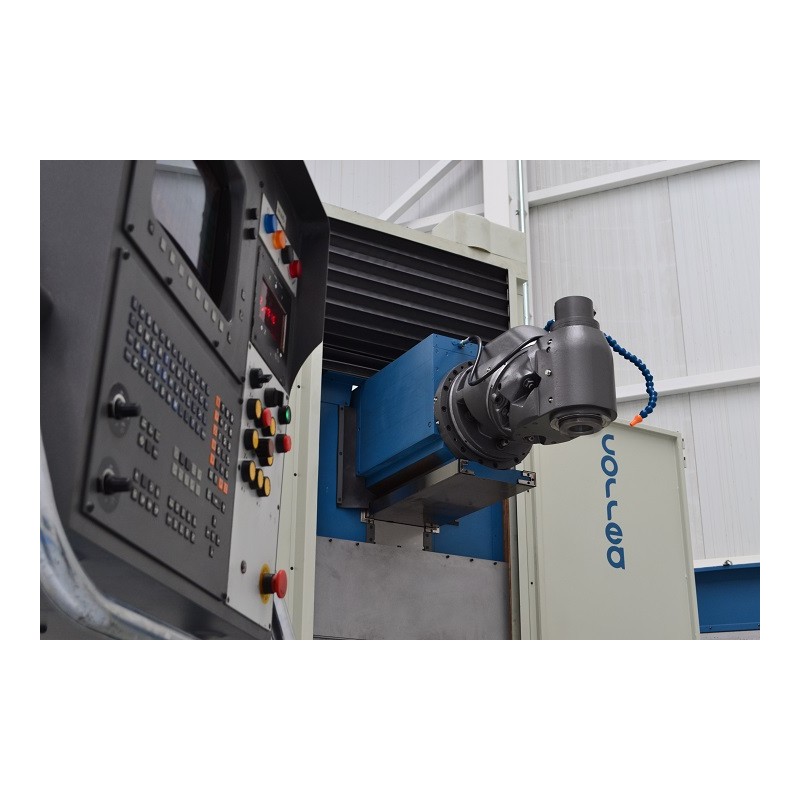

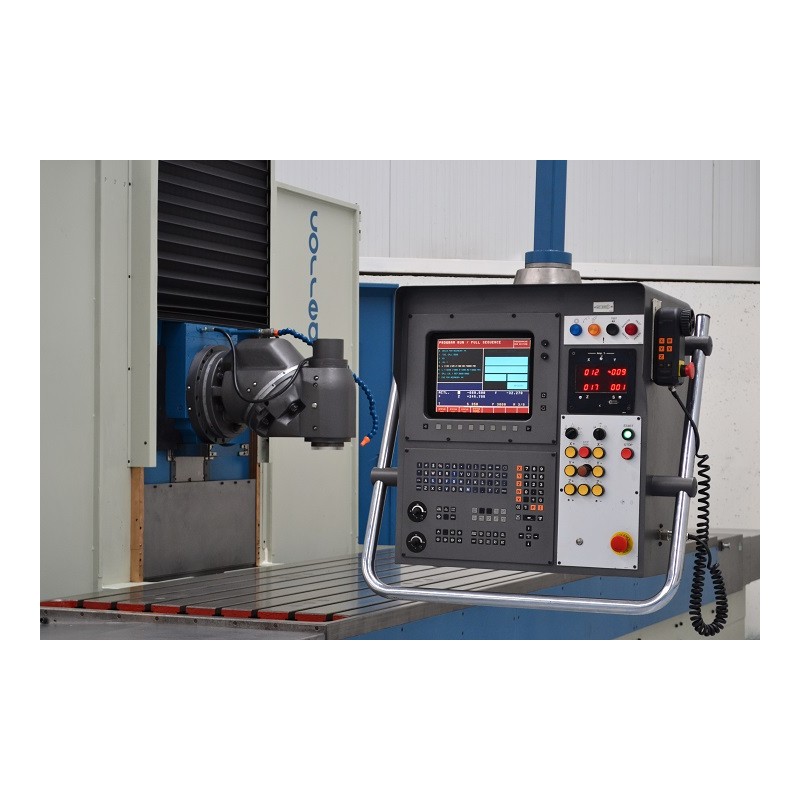

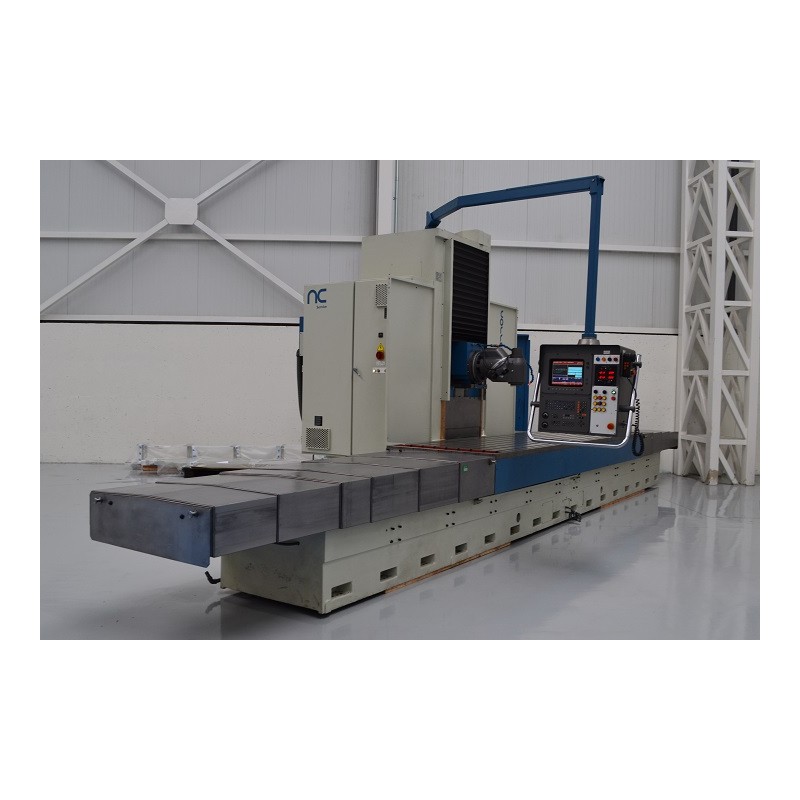

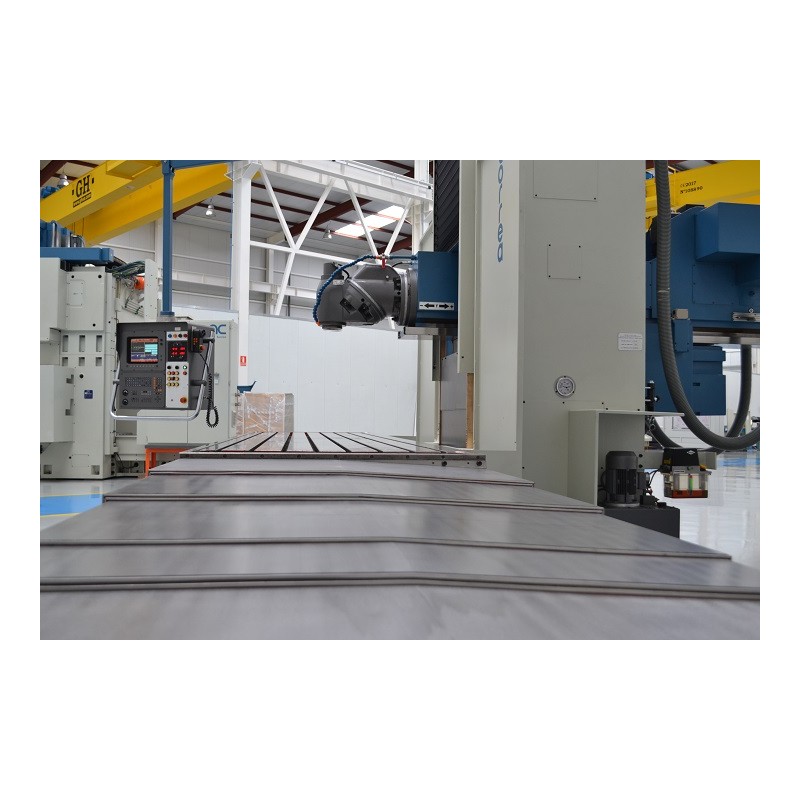

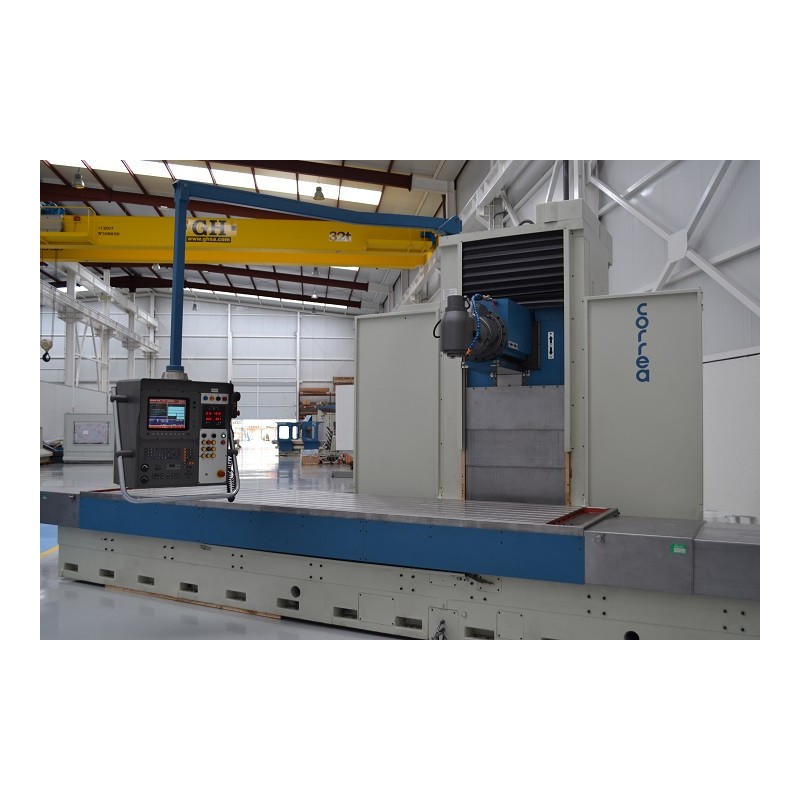

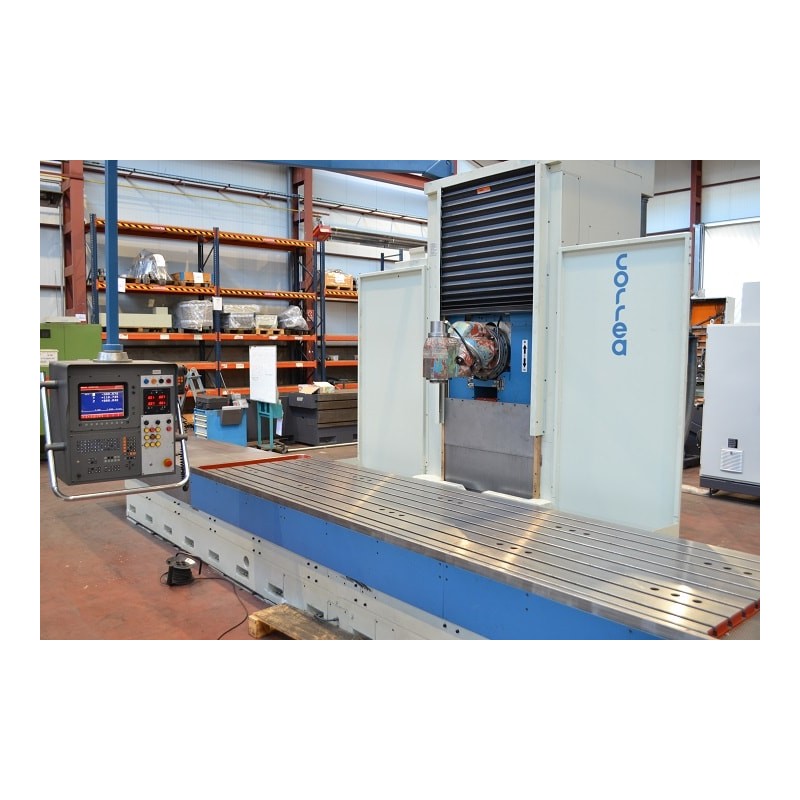

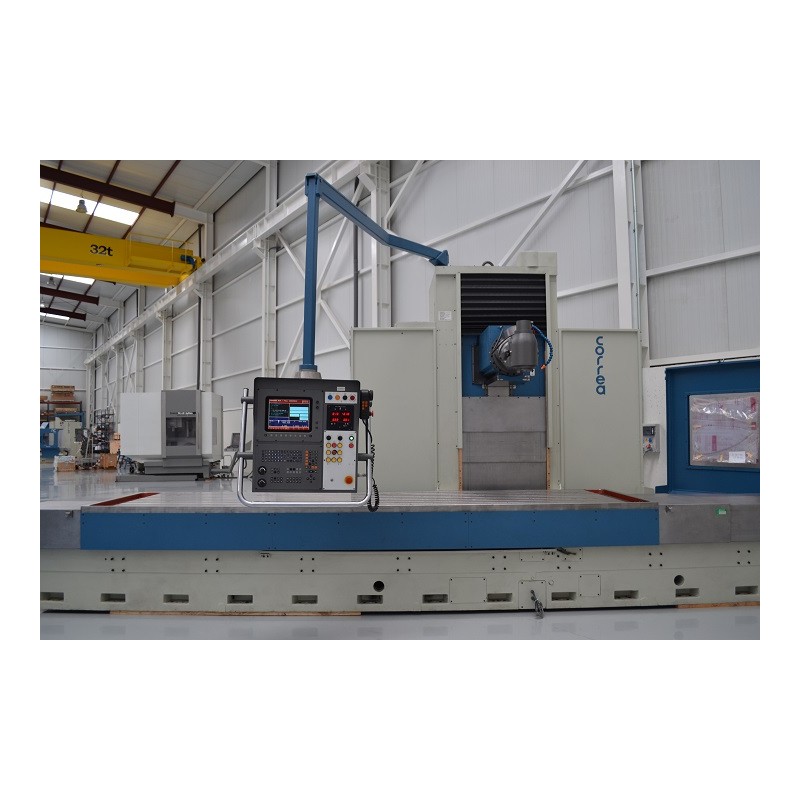

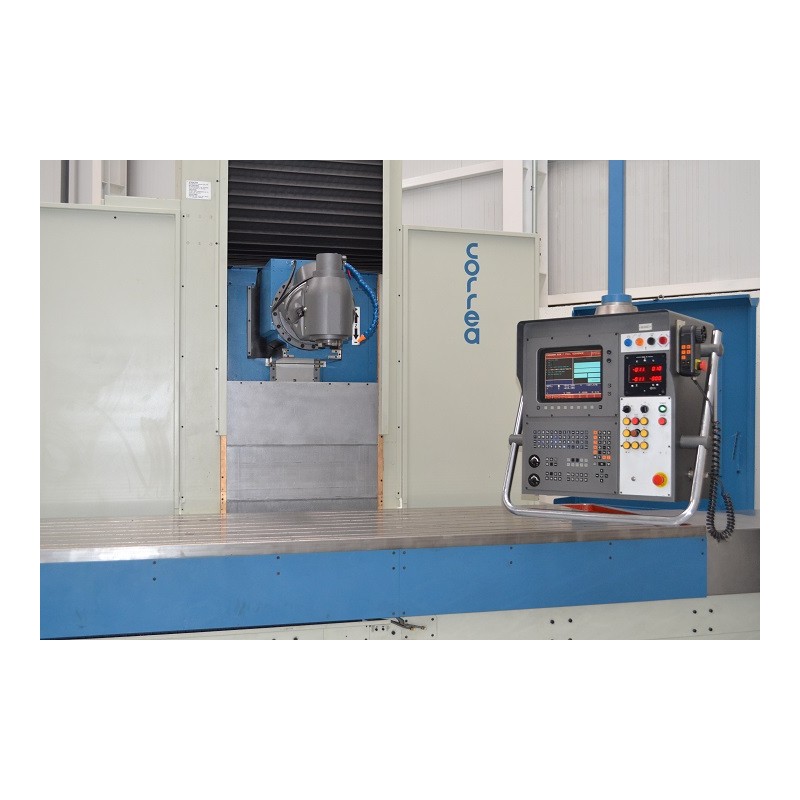

Bench-type milling machine CORREA A30/40 mechanically rebuilt and with Heidenhain TNC-407. For machining workshops that require robustness and dynamism.
Second-hand milling machine for sale, fully rebuilt and with guarantees.
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer CORREA
Condition Used - Working
Price type On request

Technical specifications

Length 11.100 mm
Width 5.392 mm
Height 3.400 mm
X travel 4.000 mm
Y travel 1.200 mm
Z travel 1.500 mm
Spindle speed 2.000 rpm
Spindle power 22 kW
Spindle taper ISO 50

Occasional seller

N
NC SERVICE MILLING MACHINES, S.A. Private seller
Member since 2017
33 ads online

SEND REQUEST

A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)
A30/40 (6300110)

Fixed bed milling machine: A 30/40
Year of manufacture: 1993
Condition: Rebuilt
Numerical control: HEIDENHAIN CNC TNC-407
Table dimensions: 4,500 x 1,100 mm
Number of T-slots: 8
T-slot dimensions: 22 mm
Travels X/Y/Z: 4,000 / 1,200 / 1,500 mm
Spindle head model: Universal manual
Tool clamping: Hydraulic
Taper: ISO 50
Speed range: 20 - 2,000 rpm
Spindle power: 22 kW
Working feeds: 2 – 5,000 mm/min
Rapid traverses: 15,000 / 10,000 mm/min
Maximum table load: 9,000 kg
Approximate machine weight: 22,500 kg
Machine dimensions: 11,100 x 5,392 x 3,400 mm
Enclosure
Electronic handwheel: HR-330
6-month warranty on mechanical parts

  • Seller's country: Spain
  • State: Used - Functional
  • Weight: 5,000 - 10,000 kg
  • Long: More than 5,000 mm
  • Width: More than 3,000 mm
  • High: 2,500 - 3,500 mm
  • X Travel: More than 3,000 mm
  • Y travel: More than 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: Up to 3,000 rpm
  • Spindle power: 15 - 30 kW
  • CNC spindle cone: ISO 50
  • Condition: Array
  • Peso: 0.000000
