M 32V

Citizen

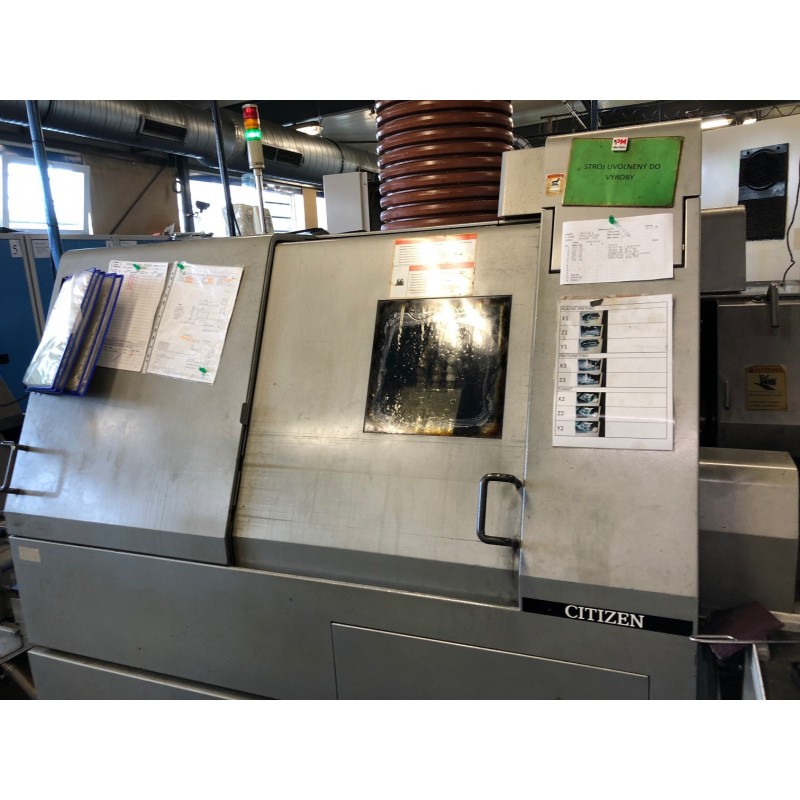

CNC turning center Citizen Cincom M 32V
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer Citizen
Condition Used - Working
Price type On request

Technical specifications

Bar capacity 36 mm
Spindle power 7,50 kW

Occasional seller

A
Amaron s.r.o. Private seller
Member since 2017
99 ads online

SEND REQUEST

M 32V
M 32V
M 32V
M 32V
M 32V
M 32V
M 32V
M 32V

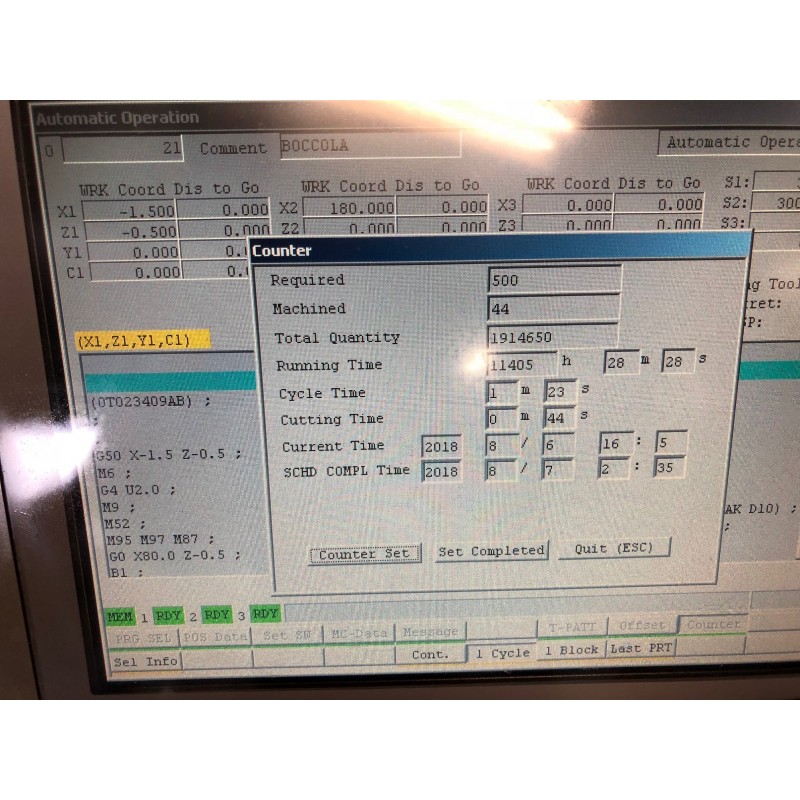

Working hours: 11405 h
Maximum machining diameter: ø32 mm
Maximum machining length: 320 mm
Maximum drilling diameter for the main spindle: ø12 mm
Maximum front tapping diameter (die
head): M10
Spindle through-hole diameter: ø36 mm
Maximum spindle speed: 8000 rpm
Maximum drilling diameter in the rear machining process: ø10 mm
Maximum tapping diameter in the rear machining process: M10
Maximum rear spindle speed: 8000 rpm
Number of tools that can be mounted: 31
Tool size Turning tool: □ 16 mm
Rapid traverse speed:
X1 axis: 32m-min - X2 axis 18m-min - X3 axis 32m-min - Y1 axis 32m-min - Y2 axis 8m-min - Y3 axis 32m-min - Z1 axis 32m-min - Z2 axis 32m-min - Z3 axis 32 m-min
Spindle drive motors: 3.7-7.5kW
Power input capacity: 20 kVA
Center height: 1,150 mm
Weight: 3400 kg
Accessories:

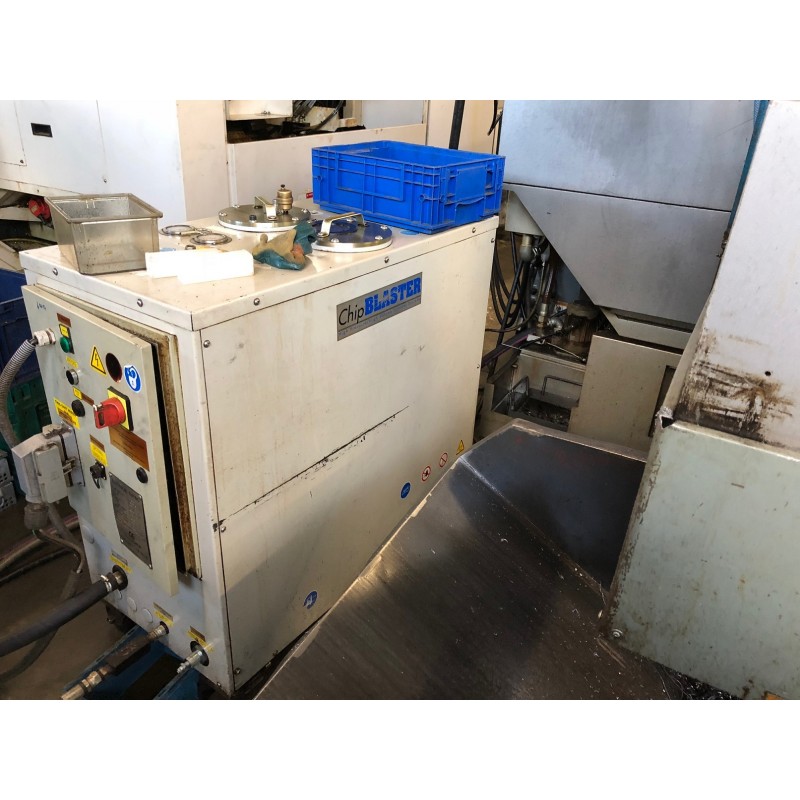

High-pressure coolant

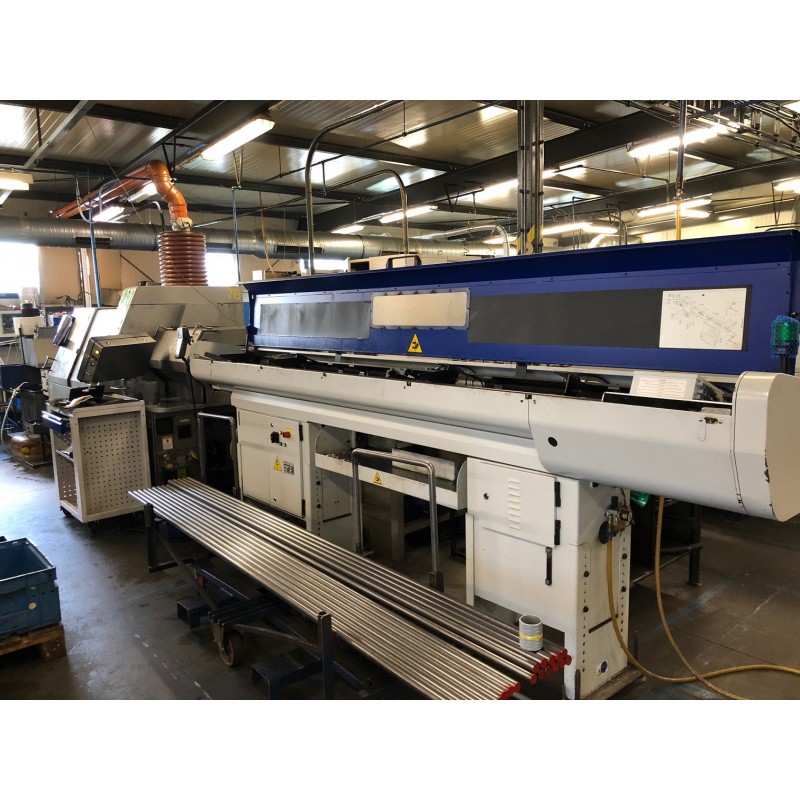

Bar feeder
Chip conveyor
Tool holder + power tools

  • Seller's country: Czech Republic
  • State: Used - Functional
  • Weight: 2,500 - 5,000 kg
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 5 - 15 kW
  • Bar feed: Up to 40 mm
  • Condition: Array
  • Peso: 0.000000
