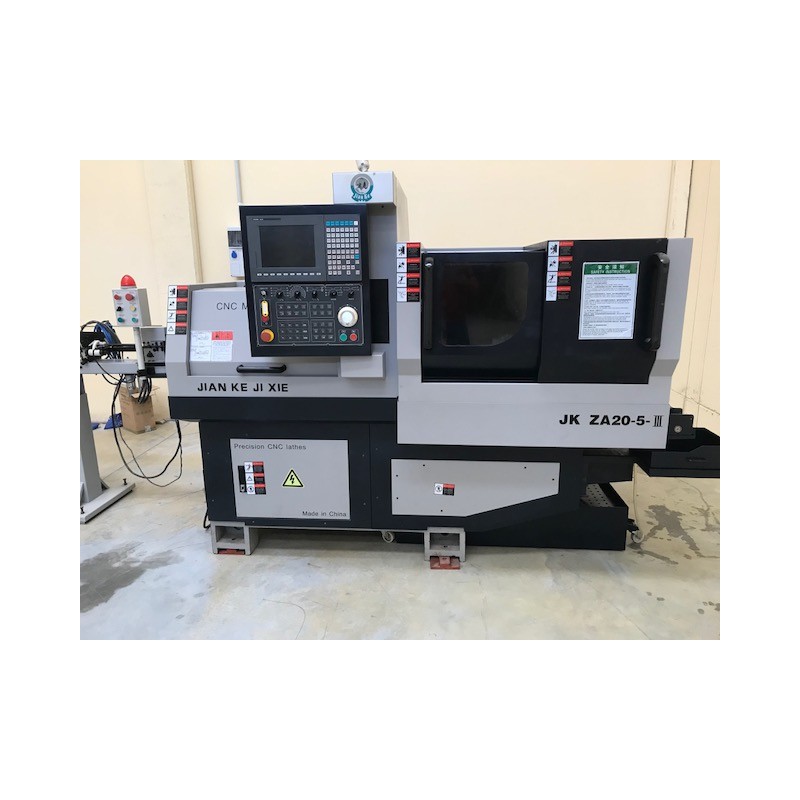

ZA205 III

C: Structural Characteristics and List of Accessories

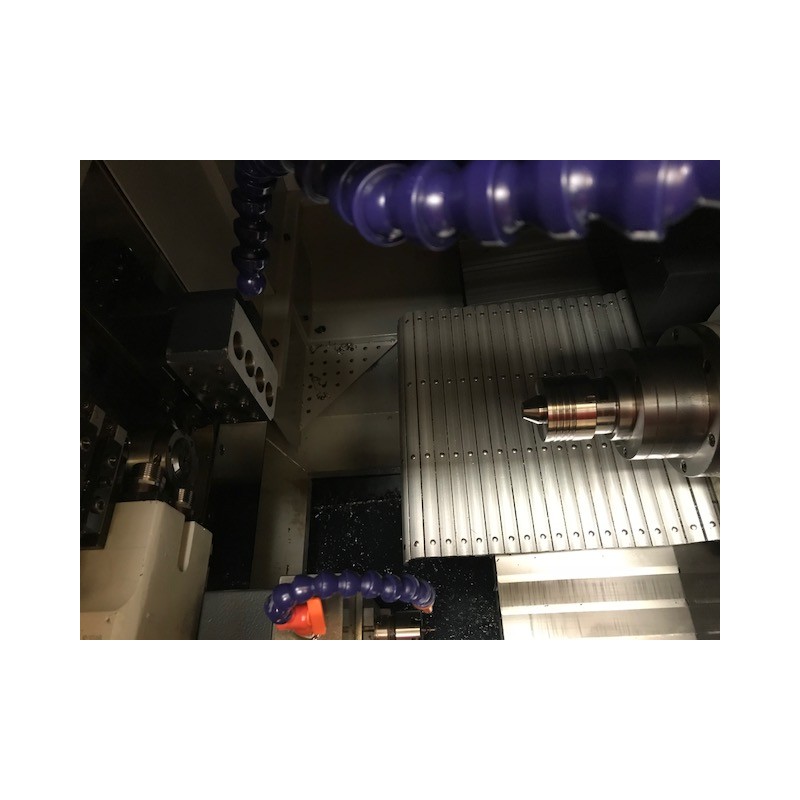

1: Spindle and guide bush: Synchronous linkage bushing structure, especially suitable for machining stainless steel material. Japan NSK assembled group bevel angle bearing group, with imported spindle grease, to ensure that the spindle and guide bush have high rigidity, high speed, and high precision.
2: Bed Body: High-strength Meehanite cast iron (HT300), two times aging treatment. Machine is accurately made to guarantee high precision.
3: Guide rail: Japan THK high precision dual rows linear guide, (precision) rolling guide, preload installation, achieving zero transmission gap.
4: Ball screw: Japan THK high precision level grinding grade ball screw, and motor gapless metal spring coupling (diaphragm type), high precision and low noise.
5: Screw bearing: Japan NSK assembled group high precision ball screw bearings.
6: Control system: Taiwan SYNTEC system, or Fanuc system (price USD8100).
7: Splice moving cylinders with a flow regulating device, oil-water separator.
8: Spindle servo motor: Japan Yaskawa 9: Spindle motor power: Servo 3KW
10: Spindle controller: Japan Yaskawa 11: Contactor and electrical switch: DELIXI
12: Relays: Japan OMRON 13: Travel switch: Japan OMRON
14: Pneumatic system: Solenoid valve, pneumatic cylinder is ZULIN, Air Source Treatment FR.L is ZULIN pneumatic.
15: Cooling system: Large volume, can be shifted out, sufficiently cool, easy to clean, it can meet different working conditions.
16: Metal chipping box: Chip box with large volume can be shifted out, easy to clean.
17: Lubrication: Japan Valley brand forced lubrication system, can lubricate the screw and guide rail fully to make the life long.
18: Protect: Integral closed protective cover, processing area is completely isolated from the operator to ensure safety.

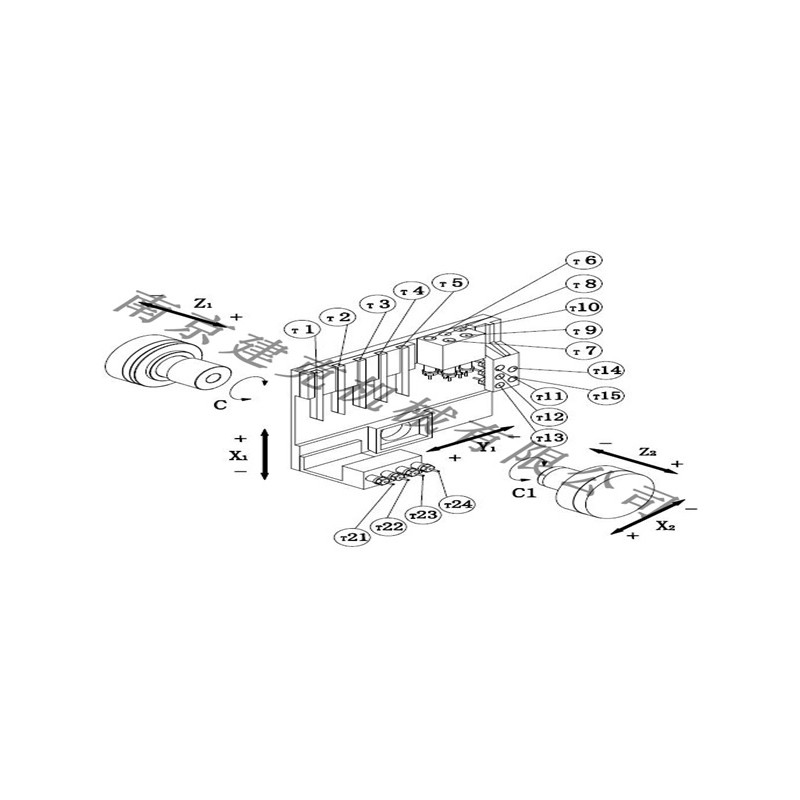

19: Tool arrangement with single row control (X.Y) of row tool turret, simple structure, quick to change tools, and high reliability.

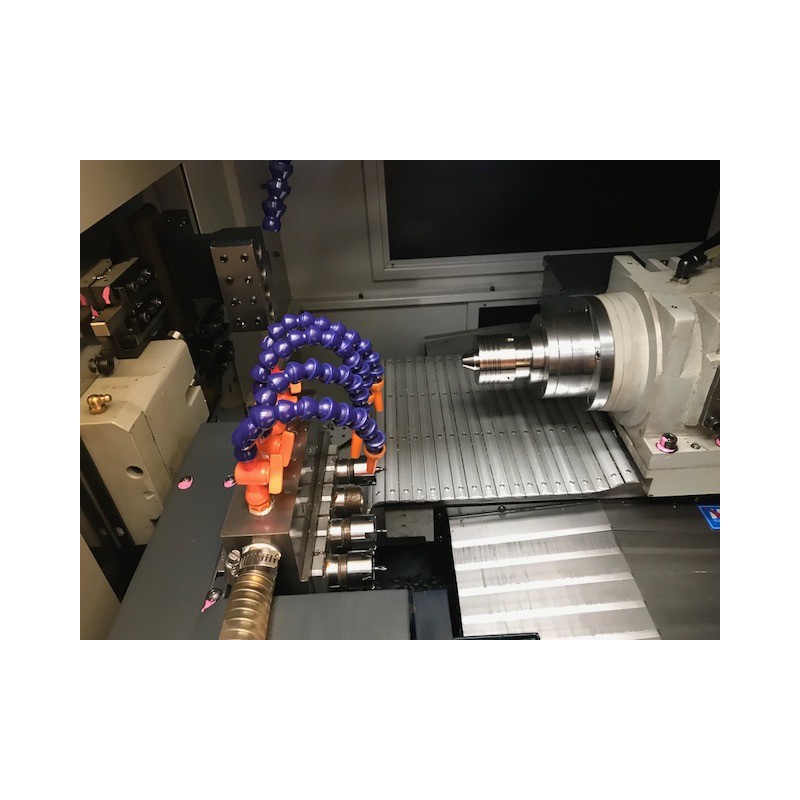

20: Tool Holder: 5 pieces of single row tool holder, mainly used for machining cylindrical shaft machining, cutting, chamfering, metal chips easy to clean, high efficiency.
21: Face end non-rotating tools: 4 pieces of tools, used for drilling, tapping, and boring process.

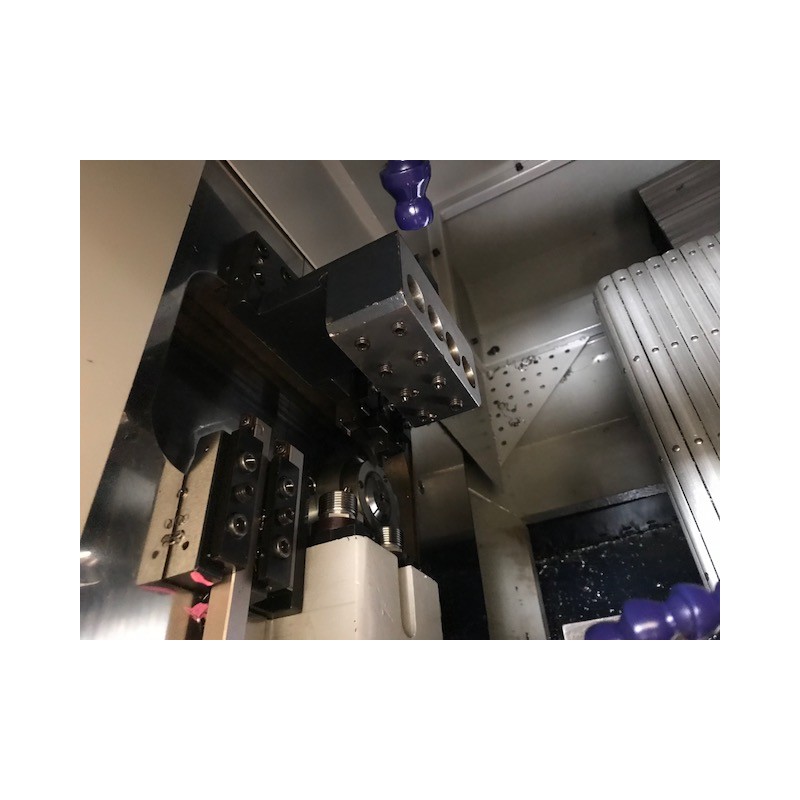

22: Milling and Drilling power head: 2 pieces of ER16 + 3 pieces of ER11, bearings adopt P4 class assembled groups high speed beveled spindle bearings.
23: Sheet metal: Excellent way of discharging oil and large area for cutting.
24: Rotary guide sleeve: Adopt Japan
