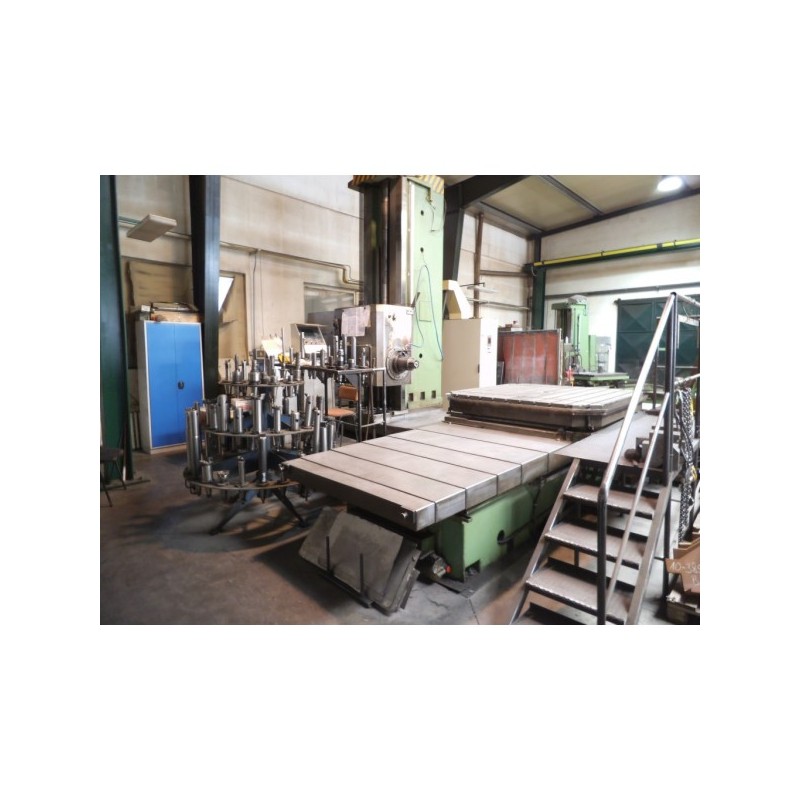

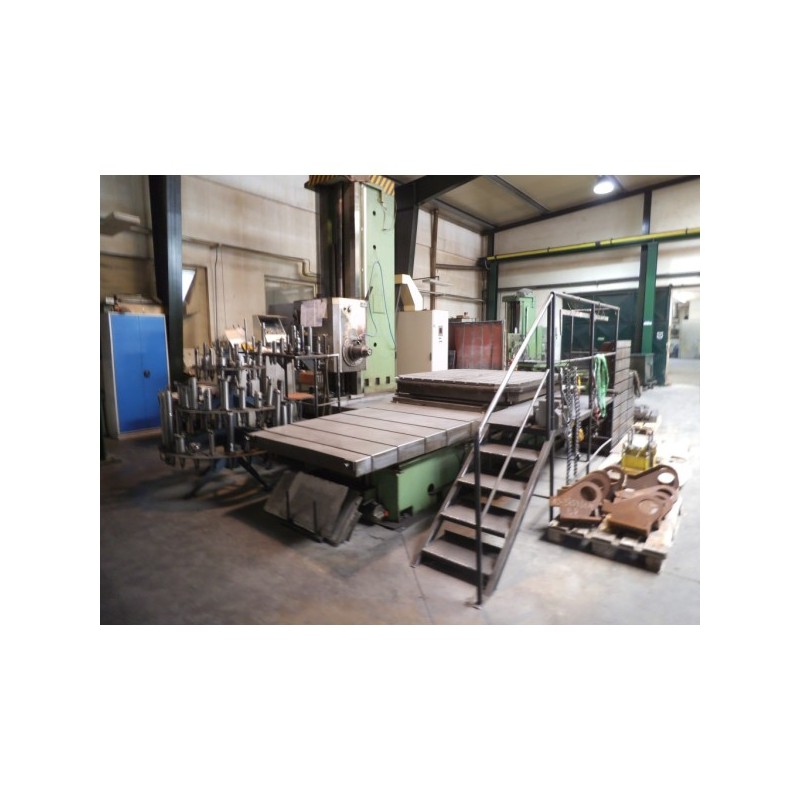

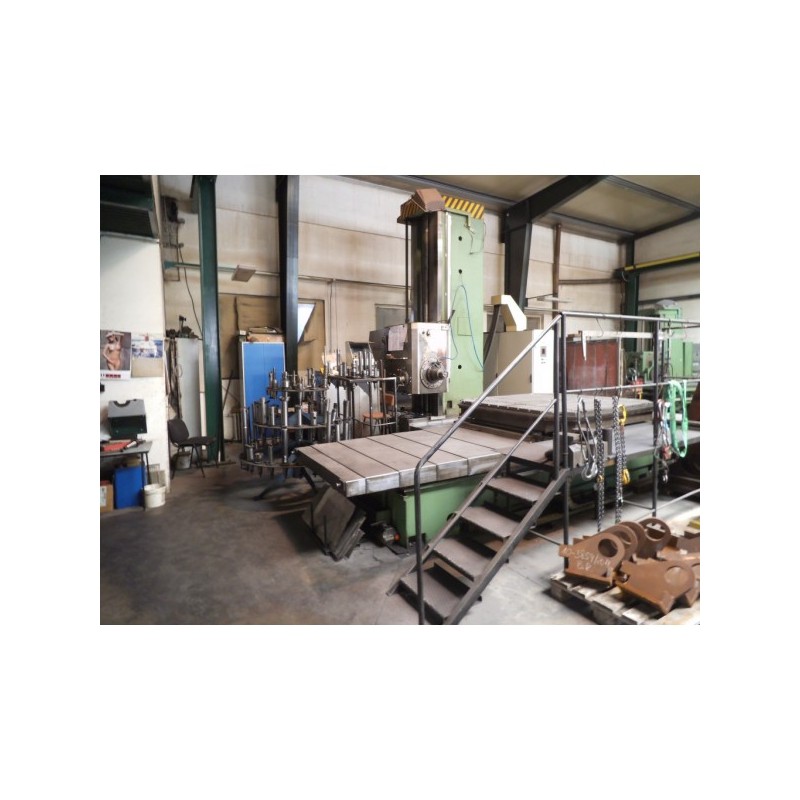

Table-type boring machine

GO 2008

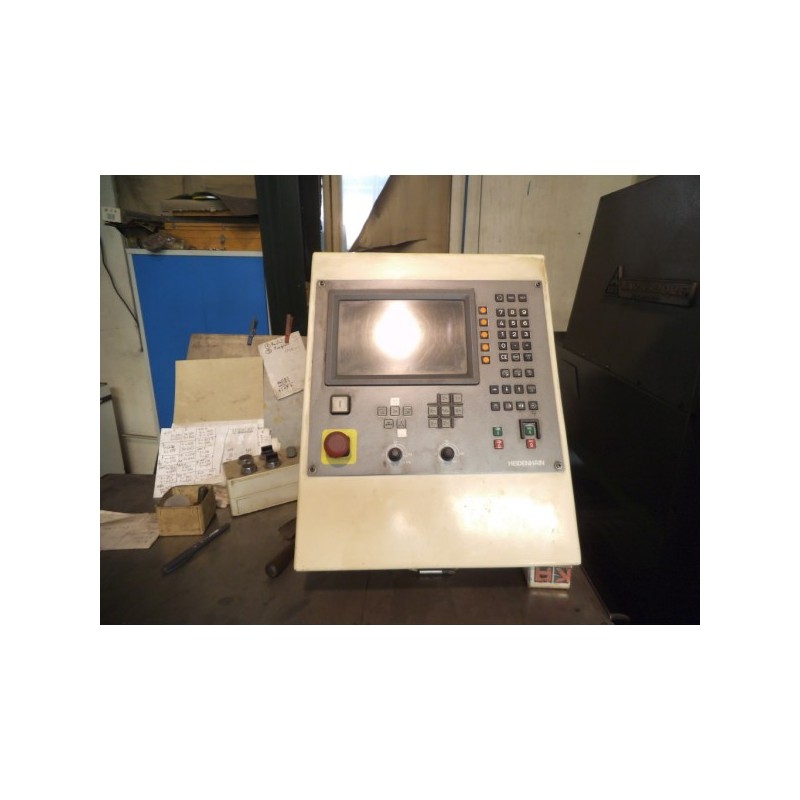

Control system: Heidenhain TNC 320
Screw diameter: 130 mm Ø

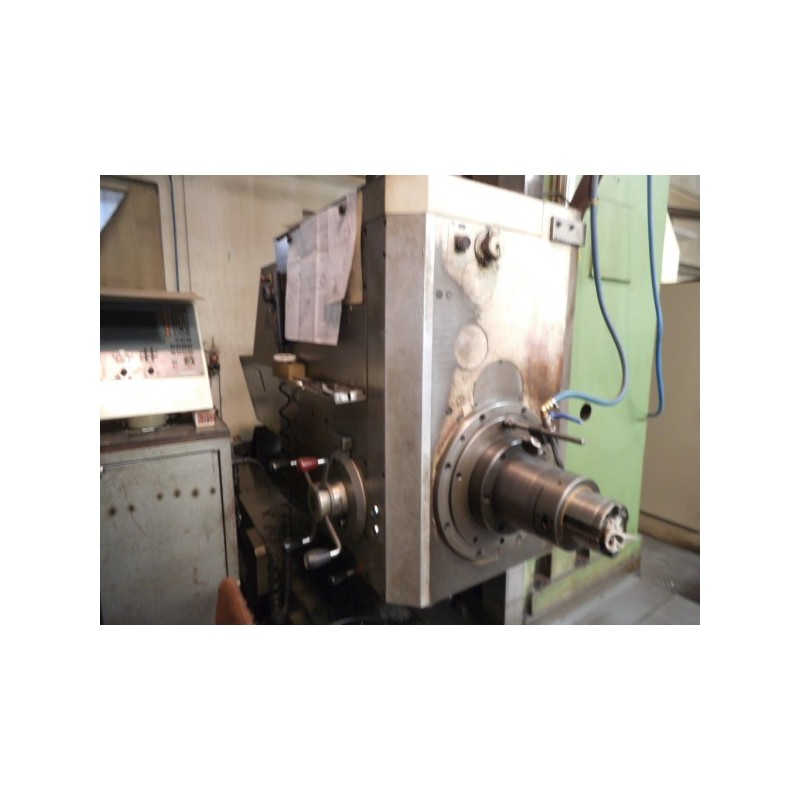

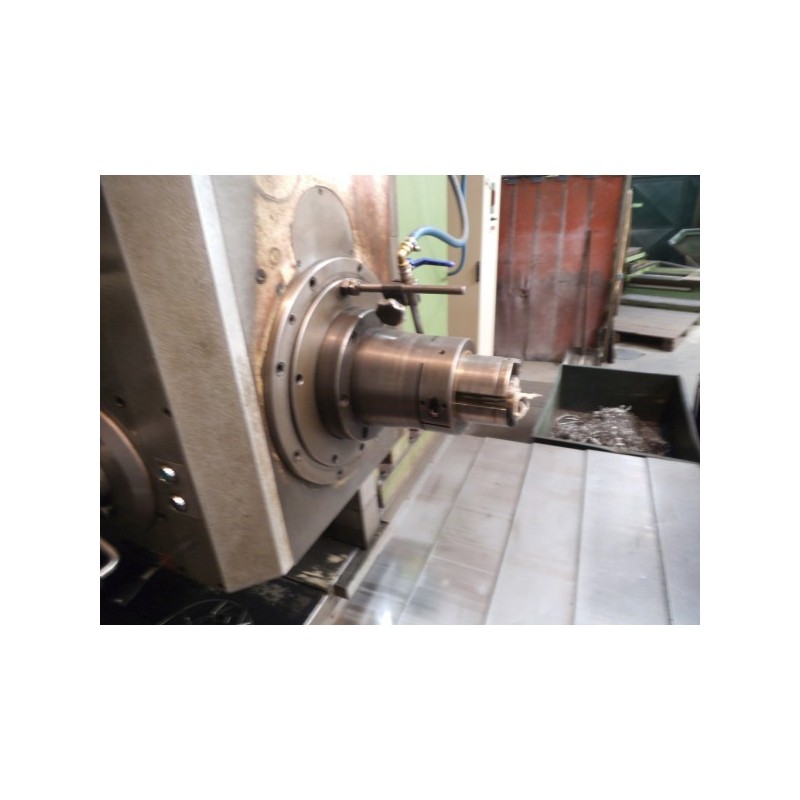

Spindle: CSN 22 0430 50
Spindle speed range: 5.12 to 800 rpm
Tool cooling: external
Main motor power: 38 kW
Maximum spindle torque: 10,300 Nm
Table cross adjustment: (X) - 2000 mm
Working spindle axis height adjustment (Y) - 2,000 mm
Longitudinal adjustment: (B) - 1250 mm
Working spindle extension (Z) - (NC Z-axis system)
Feed rates Z X-Y-W: First line - 2.5 to 160 mm/min
. II series - 50 to 3200 mm/min
Rapid traverse X Y Z: W - 3,200 mm/min
Pressure - turning area: 1,800 x 1600 mm
Handwheel
