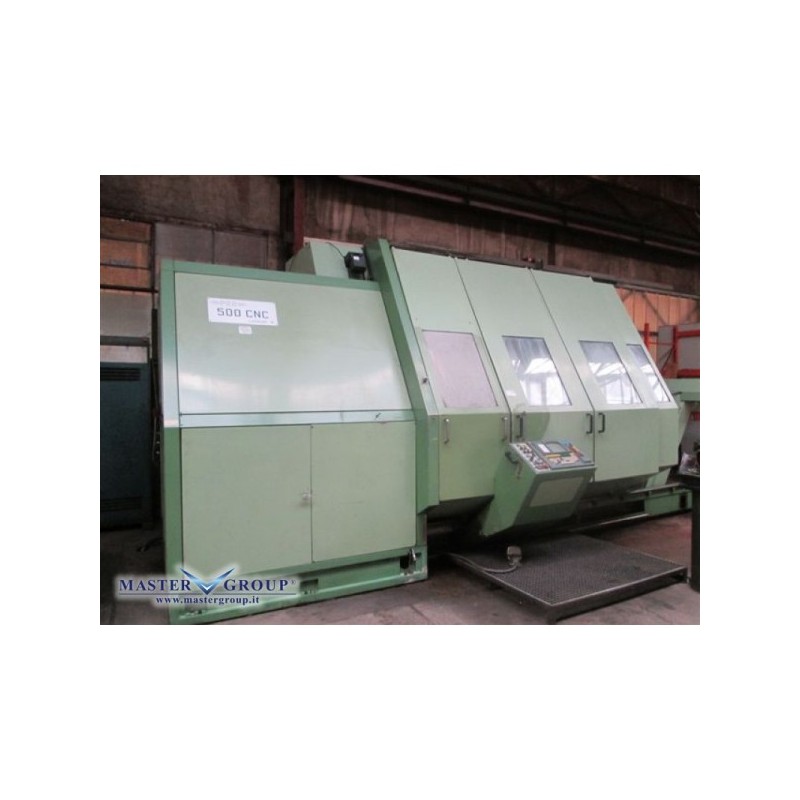

PBR mod. 500X2000

USED 2-AXIS CNC LATHE
Country
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Swing diameter 1.000 mm
Distance between centers 2.000 mm
Spindle power 55 kW
Number of axes 2 ejes

Occasional seller

M
MASTER GROUP Srl Private seller
Member since 2017
54 ads online

SEND REQUEST

PBR mod. 500X2000
PBR mod. 500X2000

DISTANCE BETWEEN CENTRES: 2000 mm
MAX TURNING DIAMETER: 1000 mm
SPINDLE: 1720 rpm; 55 Kw; 8320 Nm
X-AXIS TRAVEL: 1160 mm
Z-AXIS TRAVEL: 2100 mm

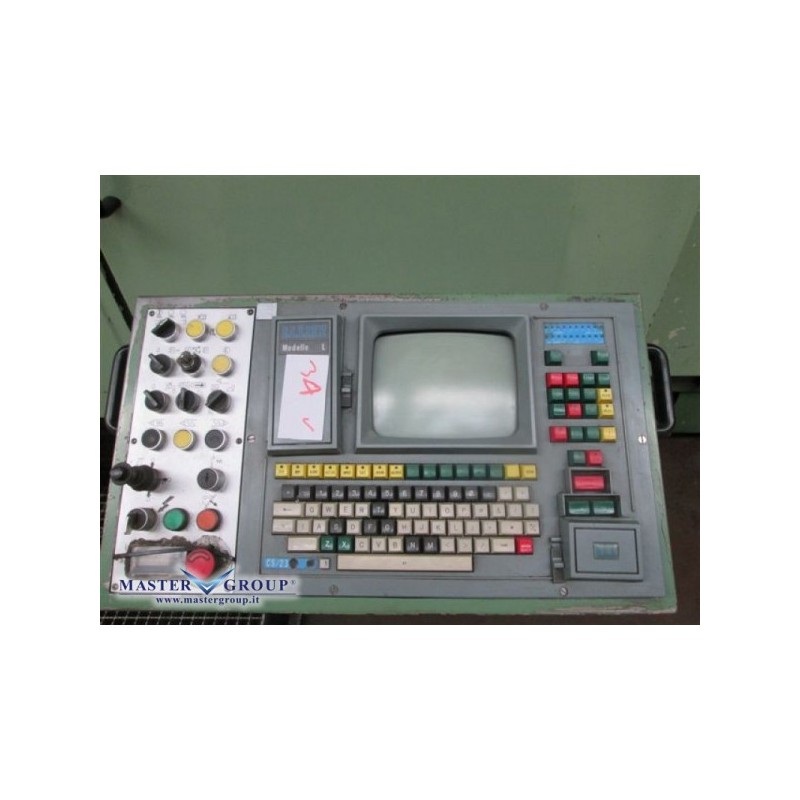

CONTROL UNIT: ECS 2302
ACCESSORIES: SWARF CONVEYOR
NOTE: WITH No 2 TURRET HEADS WITH No 6 and 8 POSITIONINGS

  • Seller's country: Italy
  • State: Used - Functional
  • Spindle speed: Up to 3,000 rpm
  • Spindle power: More than 30 kW
  • Number of axes: 2 axes
  • Turning diameter: More than 800 mm
  • Distance between points: More than 2,000 mm
  • Condition: Array
  • Weight: 0.000000
