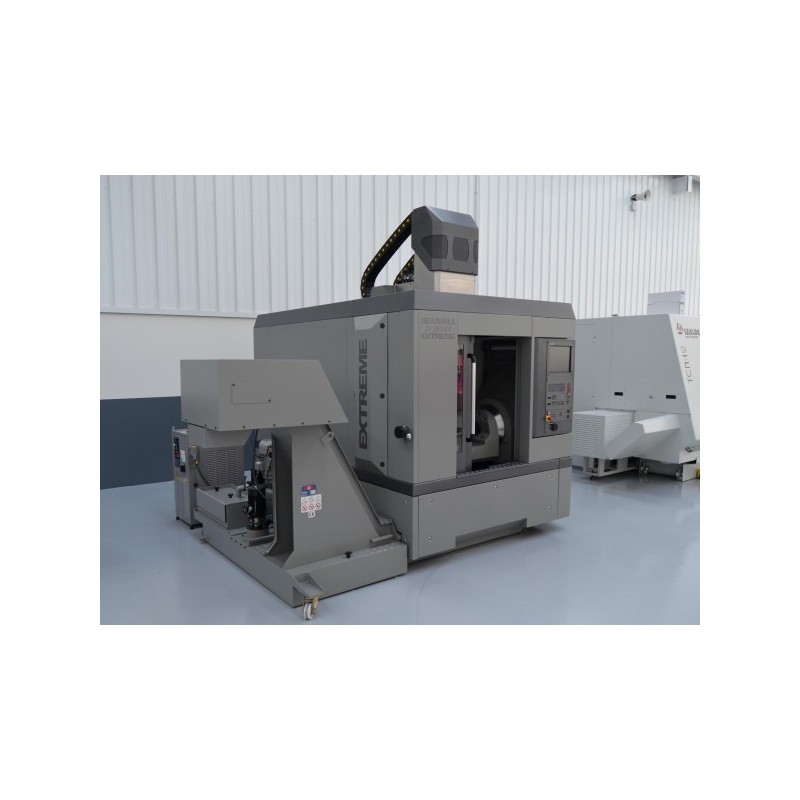

Ibarmia 5 Axes ZV 25 U600

Used Ibarmia 5-Axis Machining Center ZV 25 U600 at Maquinaria Colás. More information on our website maquinariacolas.com.
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 7.500 kg
X travel 600 mm
Y travel 428 mm
Z travel 410 mm
Spindle speed 15.000 rpm
Spindle power 35 kW
Tool changer slots 24

Occasional seller

M
Maquinaria Colás Private seller
Member since 2017
5 ads online

SEND REQUEST

Ibarmia 5 Ejes ZV 25 U600

Work Table Dimensions Ø 400 mm.
Longitudinal Travel (X Axis) 600 mm.
Cross Travel (Y Axis) 428 mm
Vertical Travel (Z Axis) 410 mm.
A Axis Travel +120º- 120º / min.0.001º
C Axis Travel 360º/min. 0.001º
Rapid Traverse of Axes 60,000 mm/min
Spindle Taper Type ISO-40
Speed Range 15,000 rpm
Main Motor Power 35 /125 Kw.
Number of Tools in Tool Magazine 24 Tools
Maximum Tool Length 300 mm.
Through-Tool Coolant 24 BAR INCLUDED
Optical Scales INCLUDED
Chip Conveyor INCLUDED
Net Weight 7,500 Kg.
CNC Control HEIDENHAIN iTNC-530
Floor Space 12m2
Year of Manufacture 2002
Machine Condition VERY GOOD

  • Seller's country: Spain
  • State: Used - Functional
  • Weight: 5,000 - 10,000 kg
  • X Travel: 500 - 1,000 mm
  • Y travel: 300 - 600 mm
  • Z travel: 300 - 500 mm
  • Spindle speed: More than 15,000 rpm
  • Spindle power: More than 30 kW
  • Tool changer: 20 - 30
  • Condition: Array
  • Peso: 0.000000
