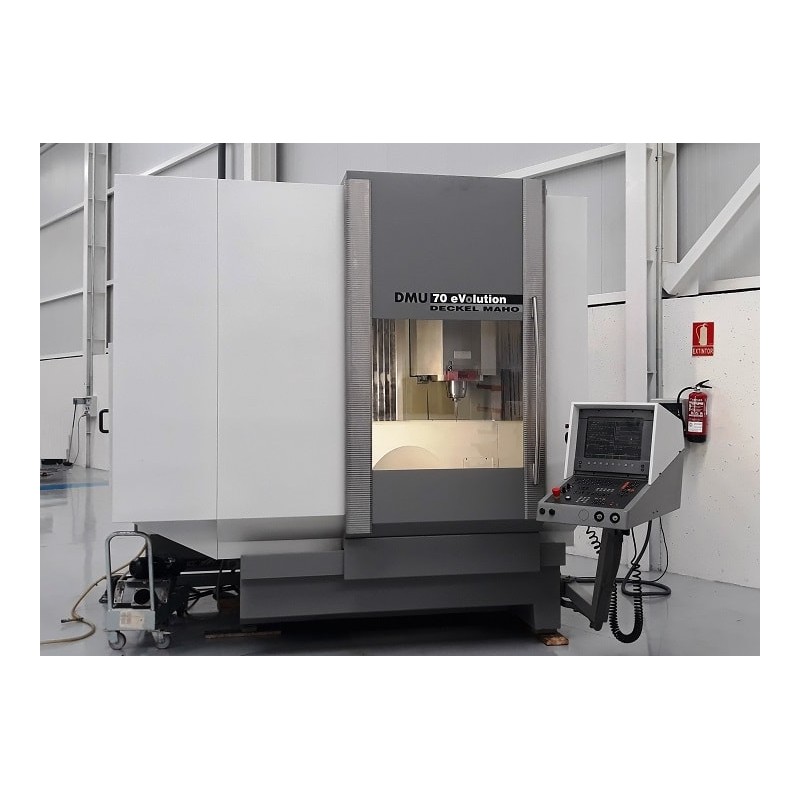

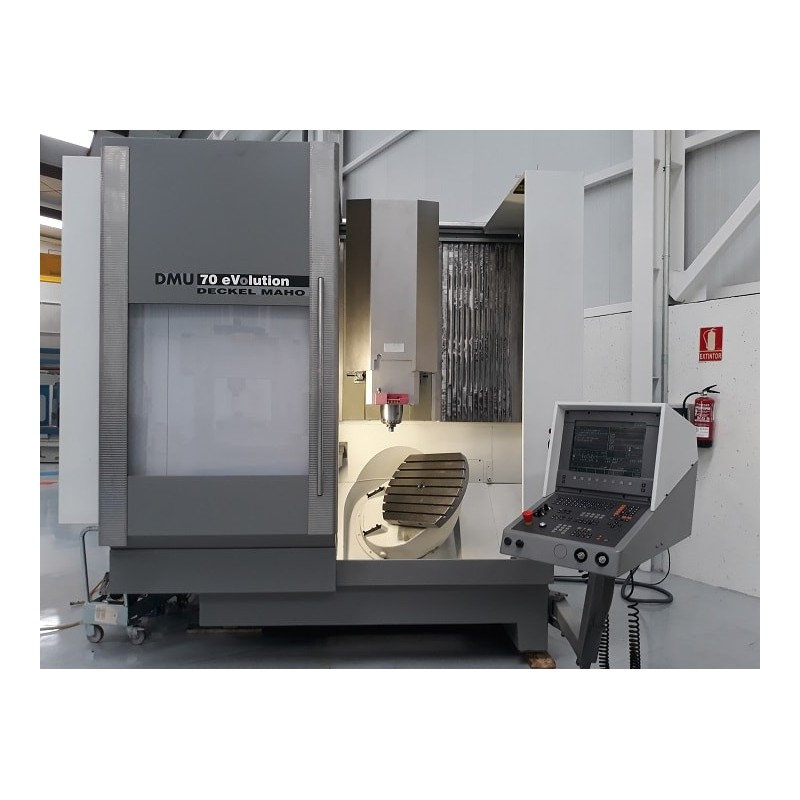

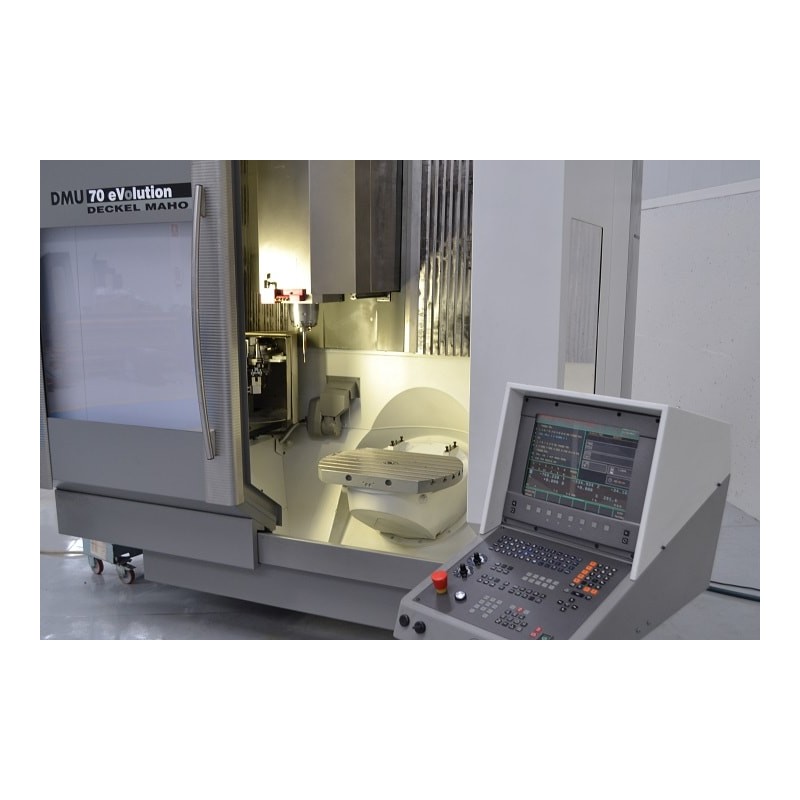

DMU 70 eVolution (15035703424)

Deckel Maho
5-axis Vertical Machining Center

• Brand: DECKEL MAHO
• Model: DMU 70 eVolution (S/n: 15035703424)
• Year of manufacture: 2001
• Condition: Overhauled

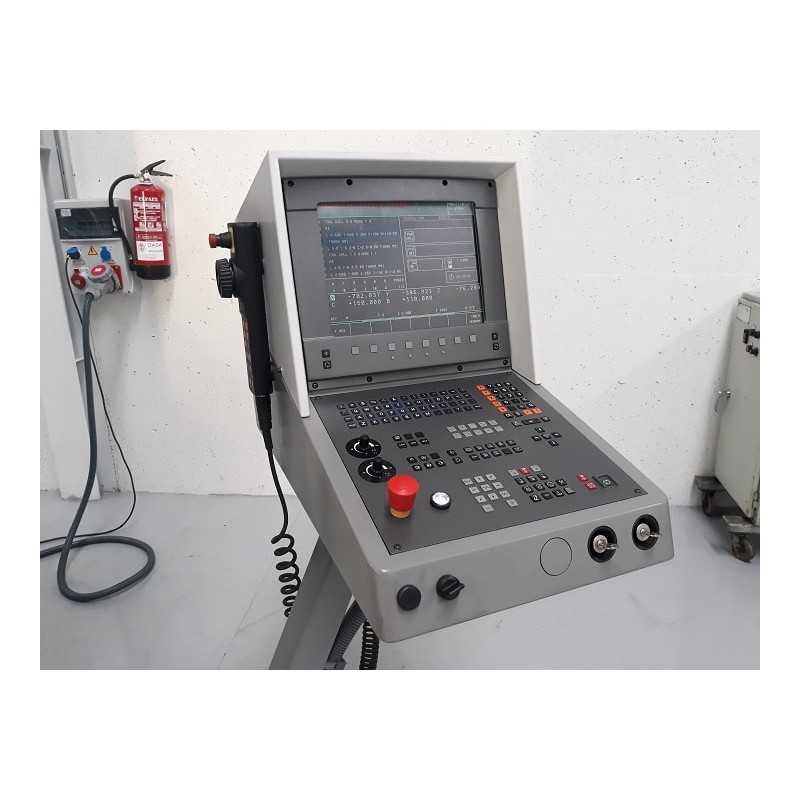

• CNC control: HEIDENHAIN TNC-426
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer DECKEL MAHO
Condition Used - Working
Price type On request

Technical specifications

Weight 8.320 kg
Length 2.574 mm
Width 5.320 mm
Height 2.829 mm
Spindle speed 18.000 rpm
Spindle power 22,50 kW
Tool changer slots 32

Occasional seller

N
NC SERVICE MILLING MACHINES, S.A. Private seller
Member since 2017
33 ads online

SEND REQUEST

DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)
DMU 70 eVolution (15035703424)

Machining area:
• X-axis: 800 mm
• Y-axis: 600 mm
• Z-axis: 520 mm
Main drive:
• Speed range: 20 – 18,000 rpm
• Power (40/100% ED): 22.5/15 kW
• Torque (40/100% ED): 130/87 Nm
Feeds:
• Working feeds (X/Y/Z): 0 - 20,000 mm/min
• Rapid traverse (X/Y/Z): 50 m/min

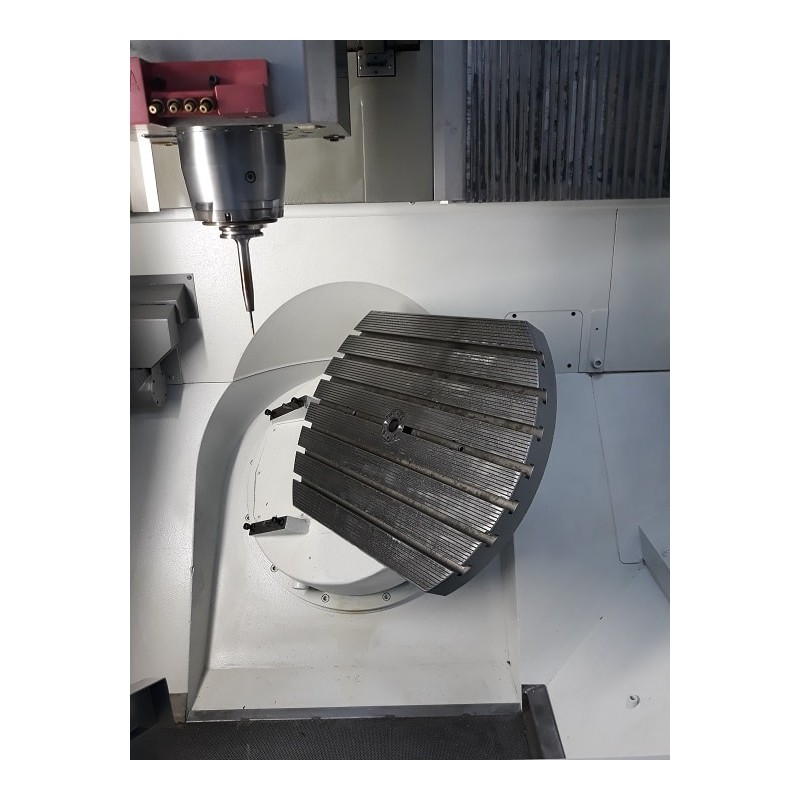

Work table (B+C axes):
• Table dimensions: Ø 700 x 500 mm
• Maximum table load: 350 kg
• T-slots (Number / Size / Tolerance): 7 / 14 mm / H7
• C-axis travel: 360º (resolution 0.001º)
• B-axis travel: 180º (resolution 0.001º)

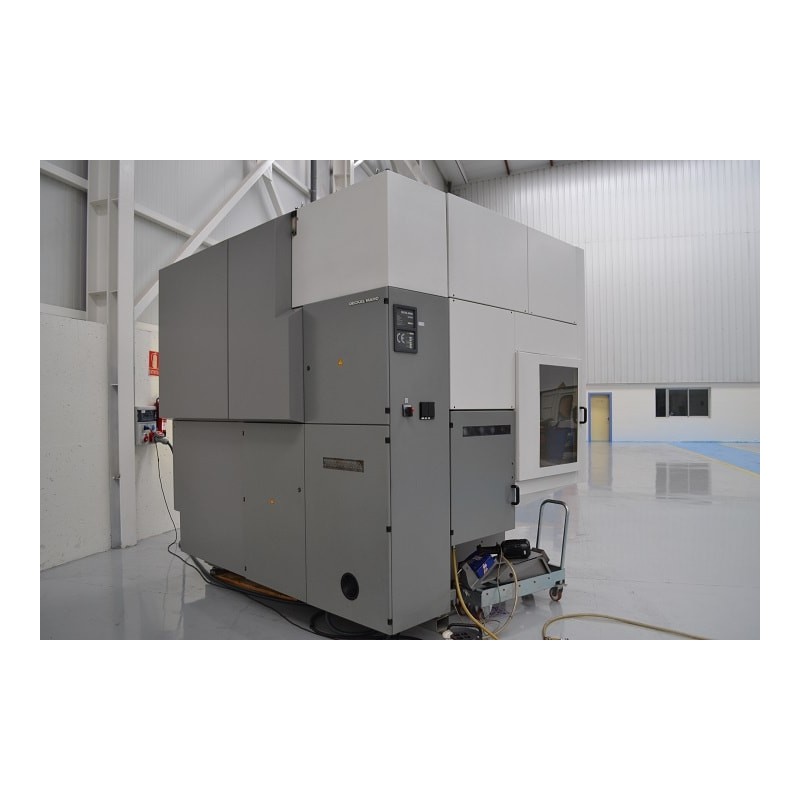

Machine:
• Machine dimensions (LxWxH): 2,574 x 5,320 x 2,829 mm
• Machine weight: 8,320 kg
Spindle taper:
• Taper type: SK 40 (DIN 69871)
Electrical connection:
• Phases | Frequency | Voltage | Power: 3N | PE~50-60Hz | 400/230V | 50 kW
Accessories:
• External coolant: Automatic coolant jet height adjustment system

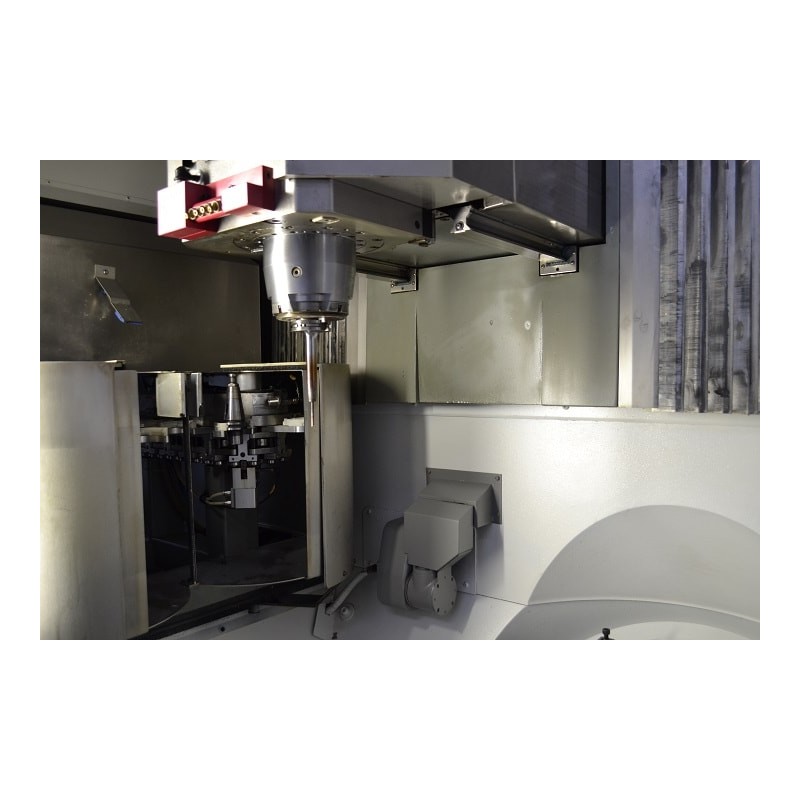

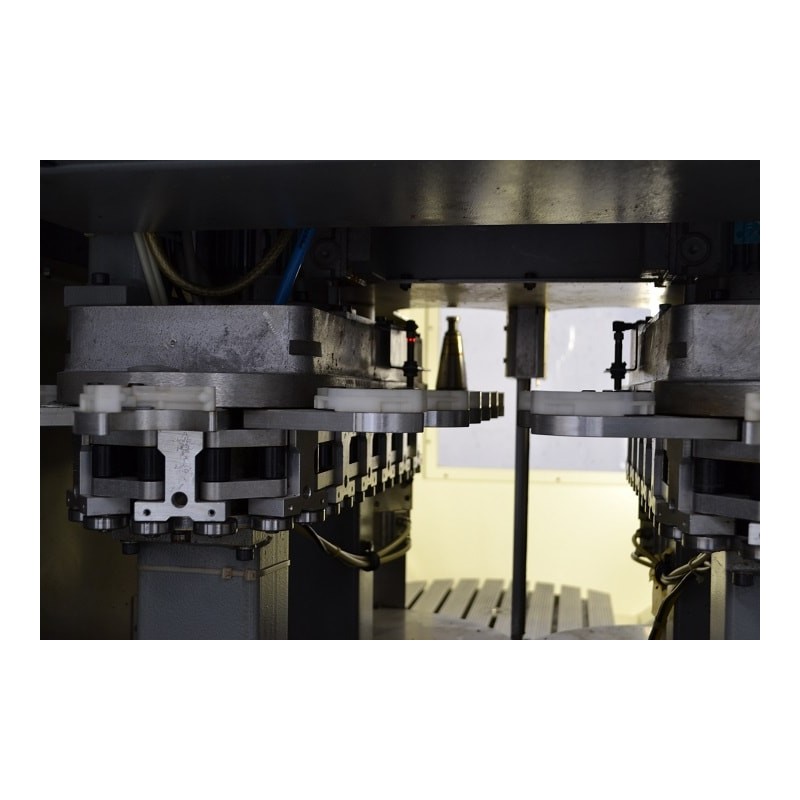

• Automatic tool changer: ATC-32
- Maximum tool weight / Maximum tool diameter: 6 kg / 315 mm
• Electronic handwheel: New! HR-510
• Equipped with tool probe: Renishaw RP2
• Option: Workpiece probe: Heidenhain TS631

  • Seller's country: Spain
  • State: Used - Functional
  • Weight: 5,000 - 10,000 kg
  • Long: 2,000 - 3,000 mm
  • Width: More than 3,000 mm
  • High: 2,500 - 3,500 mm
  • X Travel: 500 - 1,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: 500 - 800 mm
  • Spindle speed: More than 15,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: 30 - 60
  • Condition: Array
  • Peso: 0.000000
