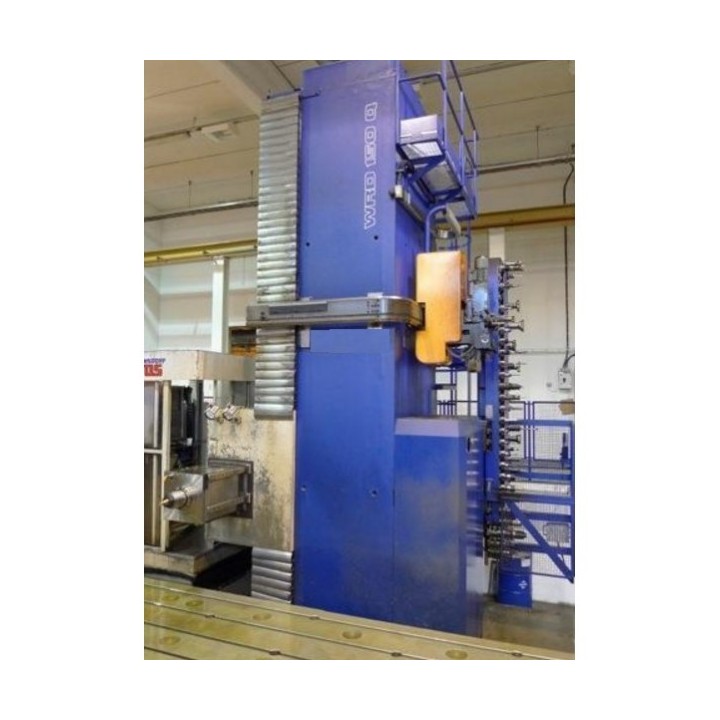

Boring Mills Floor Type TOS 150 CNC

Boring Mills Floor Type Tos 150 CNC

Spindle diameter 150 mm
Iso 50
Spindle speed 2.600 RPM
ATC
Main motor power 65 Kw

CNC last generation

X 12.000 mm
Y 3.550 mm
Z 1.000 mm
W 800 mm

Available following rotary tables:

1) Rotary Table 1.800 x 2.000 mm - 1.250 mm Transfert - Capacity 18 T. - B axis (Double pinion - ball screw)


2) Rotary Table 1.800 x 2.200 mm - 2.000 mm transfert - Capacity 18 T. - B axis (Double pinion - ball screw)


3) Rotary Table 1.800 X 2.200 mm - 3.500 mm Transfert - Capacity 18 T.-B axis (Double pinion - ball screw)


4) Rotary table 2.000 x 2.000 mm - 1.250 mm Transfert - Capacity 25 T. Manual / Conventional


5) Rotary table 2.000 x 2.000 mm - 3.000 mm Transfert - Capacity 25 T. Manual / Conventional


6) Rotary table 2.000 x 2.500 mm - 3.550 mm Transfert - Capacity 40 T. - B axis (Double pinion - ball screw)


7) Rotary table 2.500 x 2.500 mm - 2.000 mm Transfert - Capacity 45 T. Manual / Conventional


8) Rotary table 2.800 x 3.000 mm - 2.000 mm Transfert -Capacity 45 T. Manual / Conventional


9) Rotary table 3.600 x 3.600 mm - 2.000 mm Transfert - 60 T. Manual / Conventional


10) Rotary table 3.500 x 4.500 mm - 2.500 mm Transfert - Capacity 100 T. Manual / Conventional


If necessary, can be installed the double-pinion and ball screw for B axis on any of these tables.

Floor Plates (Piani Stolle) different size, available .

Price on request without obligation on your part.
