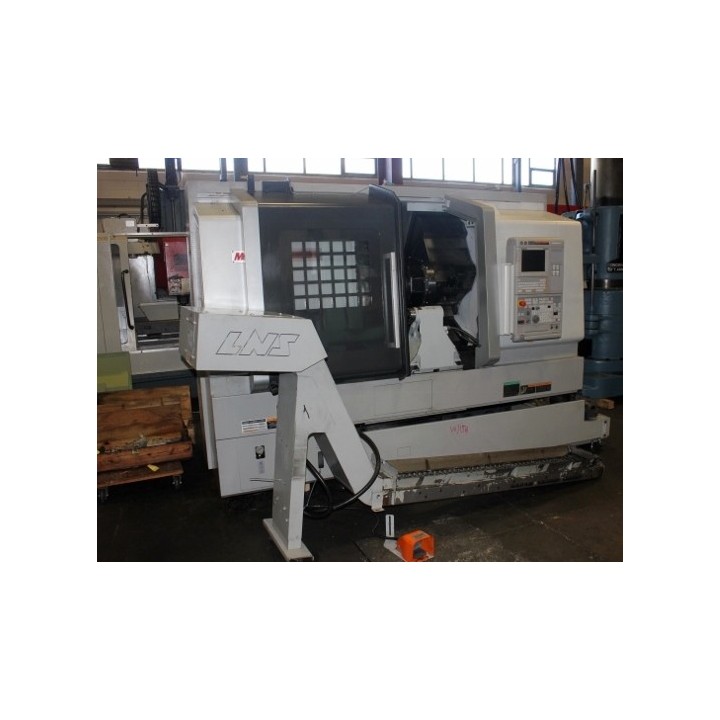

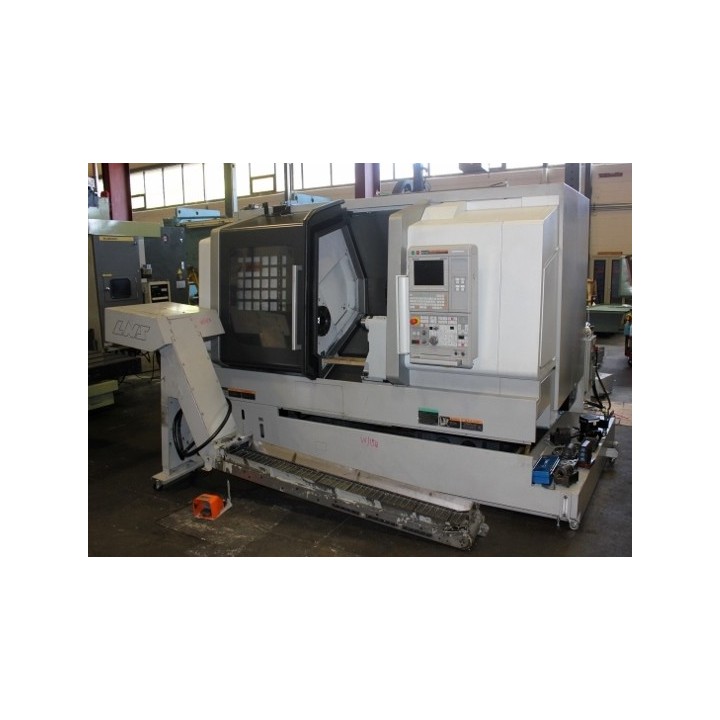

NLX2500Y700

Capacity:
Swing over bed..........................................36.22"
Swing over bed with interference from front cover.......23.58"
Swing over cross slide..................................29.21"
Maximum bar capacity...................................3.15"
Standard turning diameter...............................10.67"
Maximum turning diameter (main spindle).................14.4"
Maximum turning length..................................27.76"

Main Spindle:
Maximum speed..........................................4,000 R.P.M
Spindle nose.............................................A2-8
Spindle bearing diameter.................................5.51"
Spindle through hole diameter............................3.58"
Minimum spindle indexing angle (C-axis).....................001°

Travels:
X-axis travel......................................10.24"
Y-axis travel......................................31.3"
Z-axis travel.......................................+/-1.97"

Feed Rate:
X & Z-axes rapid traverse rate.......................1,181 I.P.M
Y-axis rapid traverse rate...........................393.7 I.P.M.
Tailstock advance/retract traverse rates..............787/275 I.P.M.
Maximum jog feedrate of tailstock.....................0 to 196.85 I.P.M.

Turret:
Number of turret tool stations...........................12
Shank height for angled tool...............................98"
Shank diameter for boring bar (main spindle).................1.97"
Rotary tool machining capacity..............................Drill - 1.02", Tap - M20
Maximum rotary tool speed.................................6,000 R.P.M.

Tailstock:
Travel...................................................28.9"
Spindle diameter.........................................3.15"
Spindle taper.............................................#3 Morse


Equipped With:

#M-730BM MITSUBISHI four-axis CNC with MAPPS (Mori Advanced Programming
Production System) conversational automatic programming, USB ports, and ethernet
interface

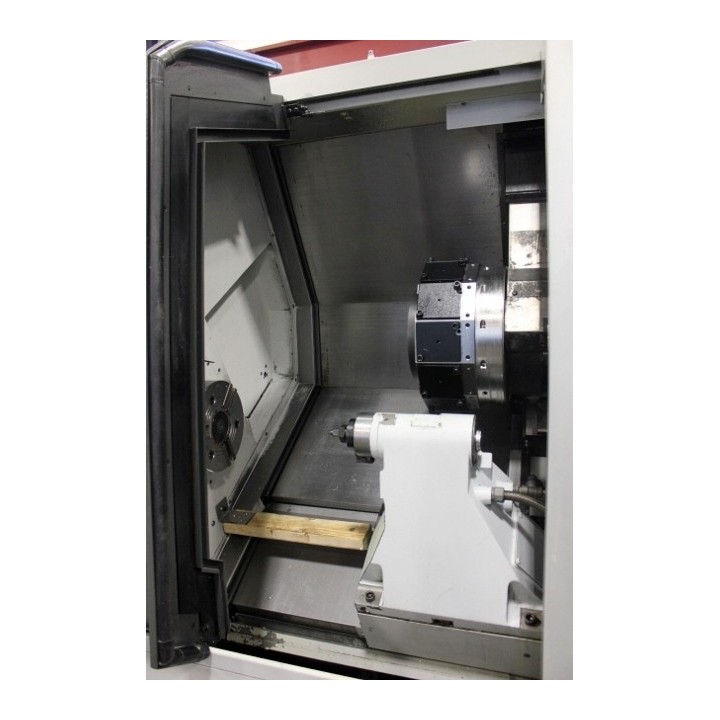

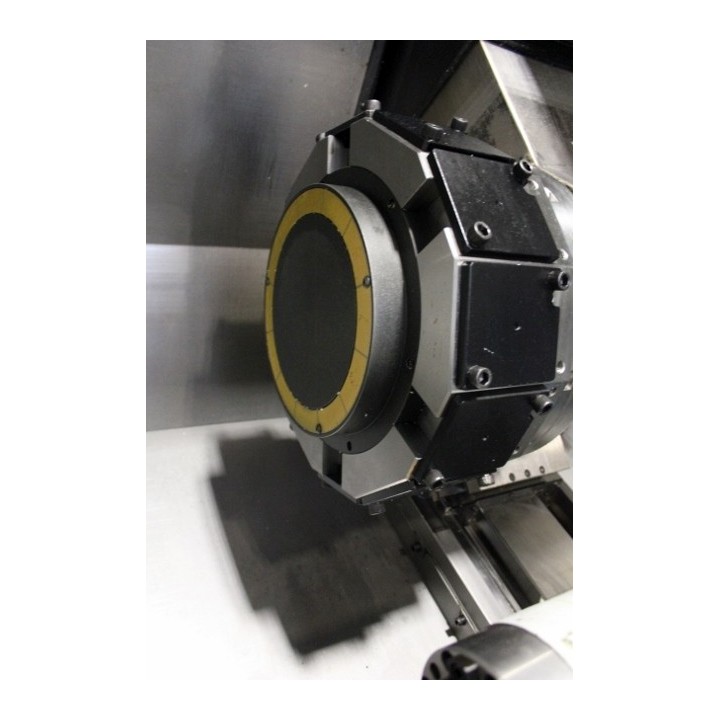

Twelve station turret with built-in direct drive milling motor and Y-axis control
(6) Live, (4) O.D., and (2) I.D. tool holders

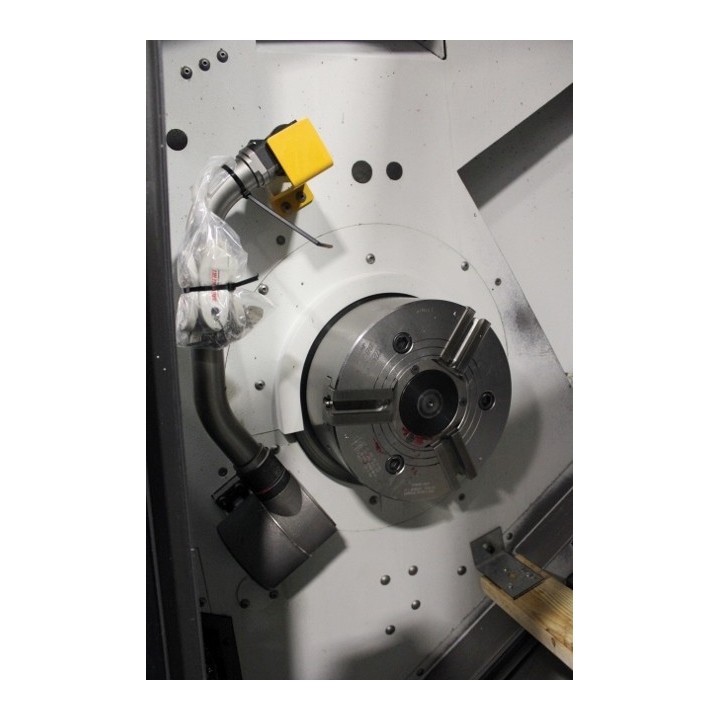

10" Diameter KITIGAWA three-jaw hydraulic chuck
Remote electric foot pedal for the clamping and unclamping of the hydraulic chuck

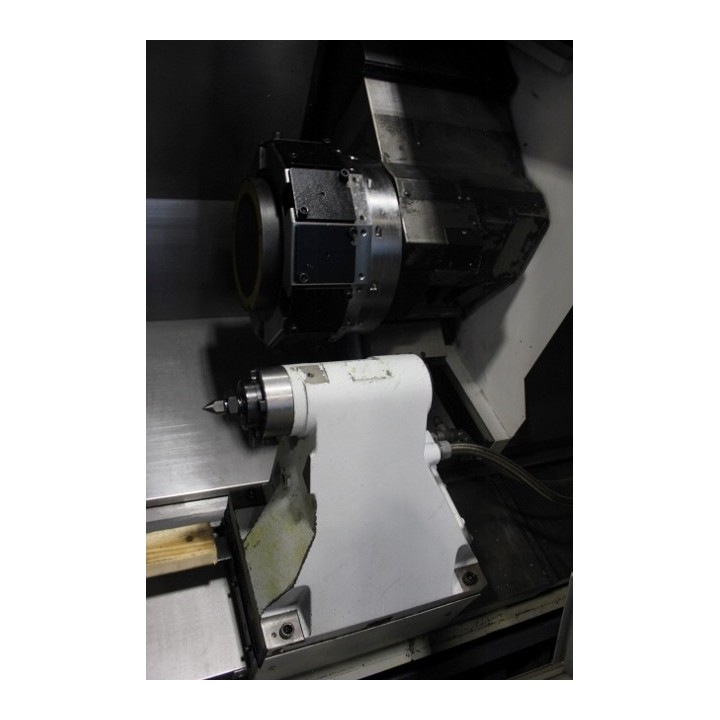

Tailstock with built-in center
LNS Turbo hinge-type chip conveyor
Automatic door option
Tool pre-setter
DAIKIN "Eco Rich" hydraulic system with 1 H.P. pump motor
DAIKIN oil cooling unit
D-30 Chip Blaster high pressure coolant unit
Coolant system w
