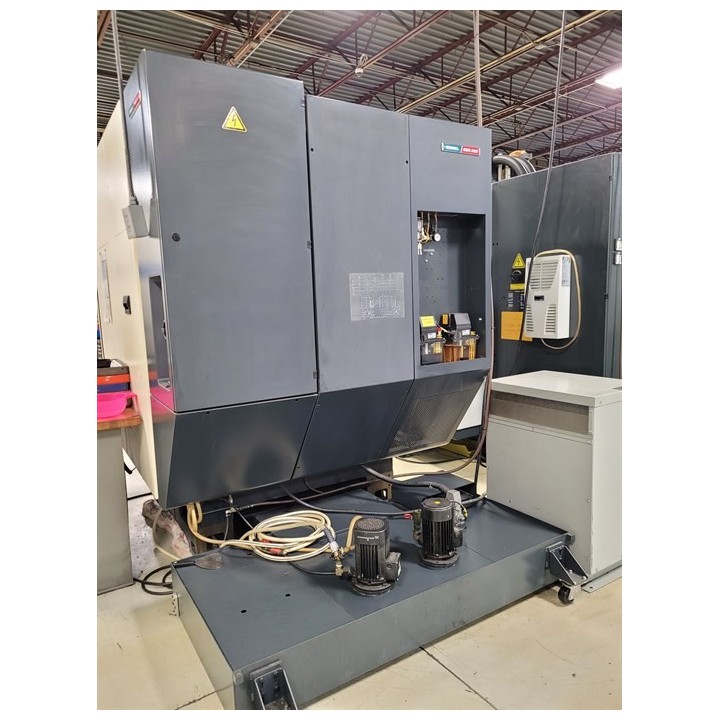

ECO 1035

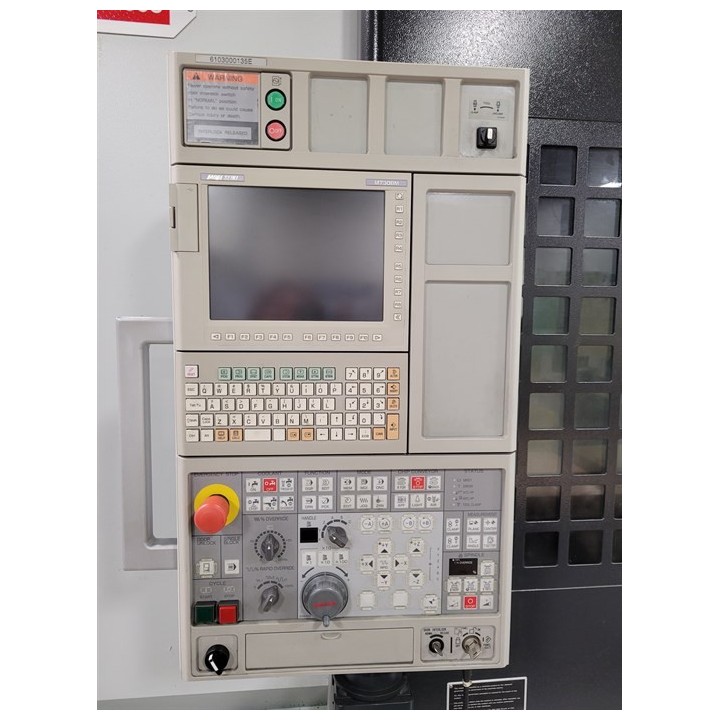

Number Of Tables / Pallets 1, Table Size 47.2" X 22", Weight On Table 2207. LBS., Spindle Nose To Table 4.7" ~ 24.8", X - Axis Travel 40.7", Y - Axis Travel 22", Z - Axis Travel 20.1", Rapid Traverse X, Y, Z 1417, 1417, 1417 IPM, Cutting Feed Rate 944 IPM, Spindle Speed 12,000 RPM, Spindle Taper 40, Main Motor 20 HP, Tool Diameter 3.1", 4.9", Tool Length 11.8", Tool Weight 17.6" LBS., Machine Weight ,788 LBS , SPINDLE CHILLER ALL AVAILABLE MANUALS , INVERSE TIME FEED ADDITIONAL BLOCK SKIP, PROGRAMMABLE MIRROR IMAGE AUTOMATIC CORNER OVERRIDE , POLAR COORDINATE COMMANDS CHIP CONVEYOR , 3D MACHINING SIMULATION MORI M730BM CNC CONTROL,
