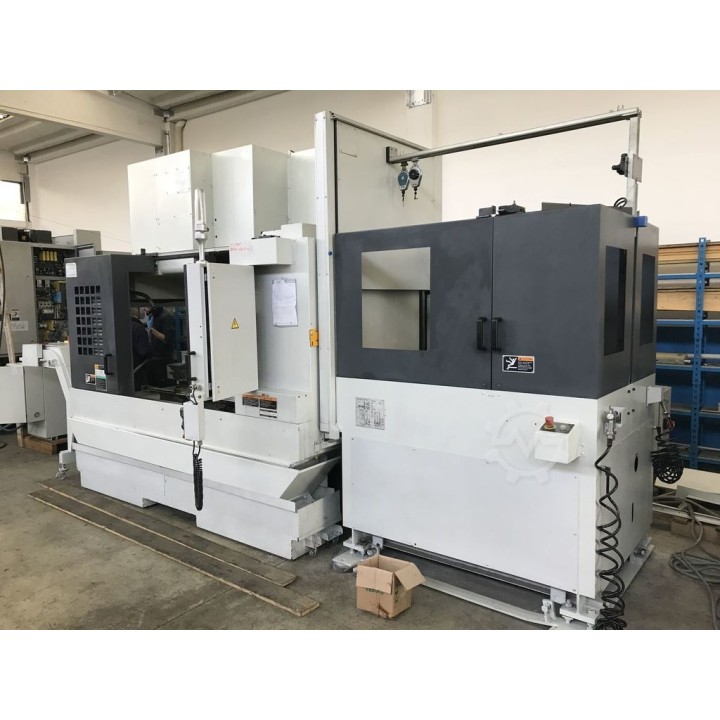

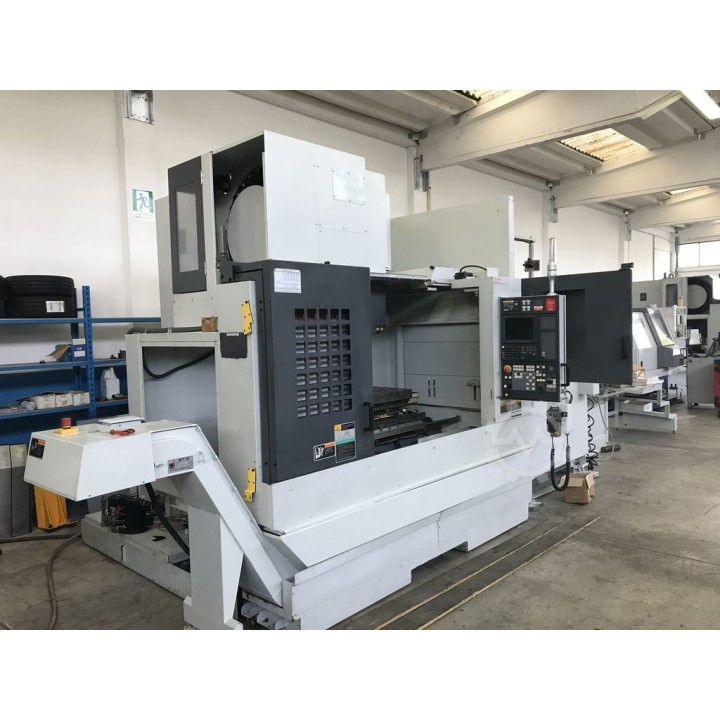

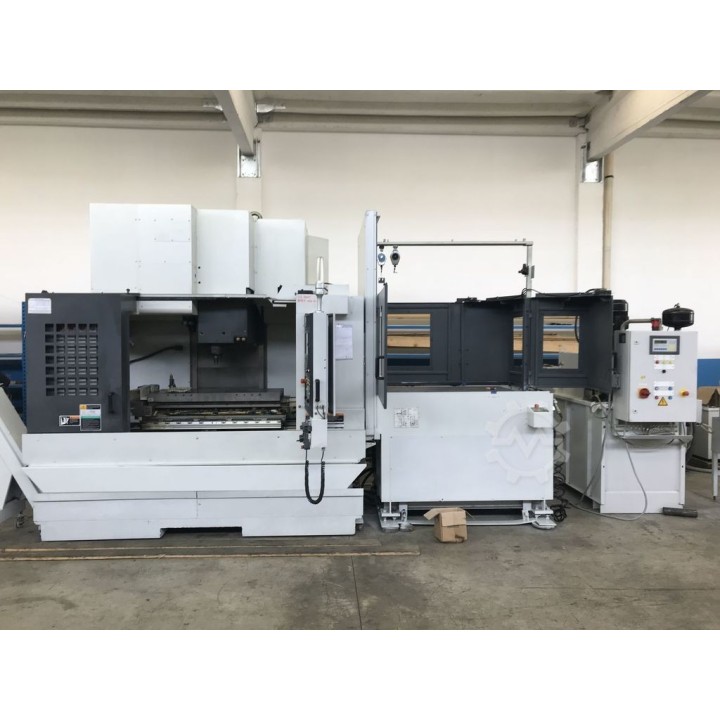

MORI SEIKI NV5000 RESTAURATA

This is a very solid built vertical machining center with pallet changer and coolant through spindle Knoll SF 500 50 bar
x-travel 1000 mm
y-travel 510 mm
z-travel 510 mm
control Fanuc MSX 501 Mapps
Bdwbfugzbi
Spindle RPM 14000 1-min
spindle drive 22-18.5 kW
rapid travel x-y-z 42 mm-min
Pallet changer 2x 1200 x 480
workpiece weight 1200 kg
tool magazin: 30 HSK 63
tool changing time 0.9 sec
distance spindle nose and table 150-660 mm
distance spindle center to column 660 mm
total power requirement 51 kVA
weight of the machine ca. 6.96 t
dimensions of the machine ca. 4.50 x 3.20 x 2.85 m
1 conveyor chip
Coolant through spindle 50 bar with filter Knoll SF 500
