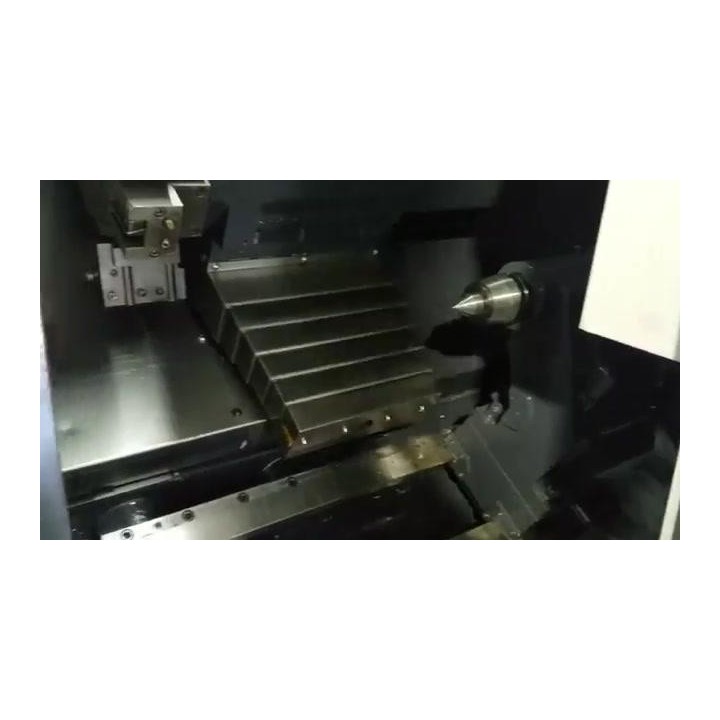

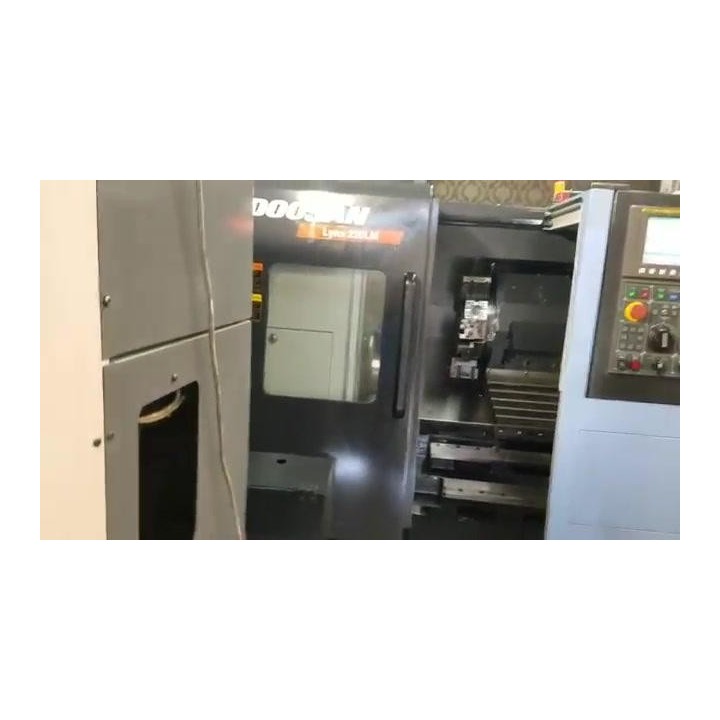

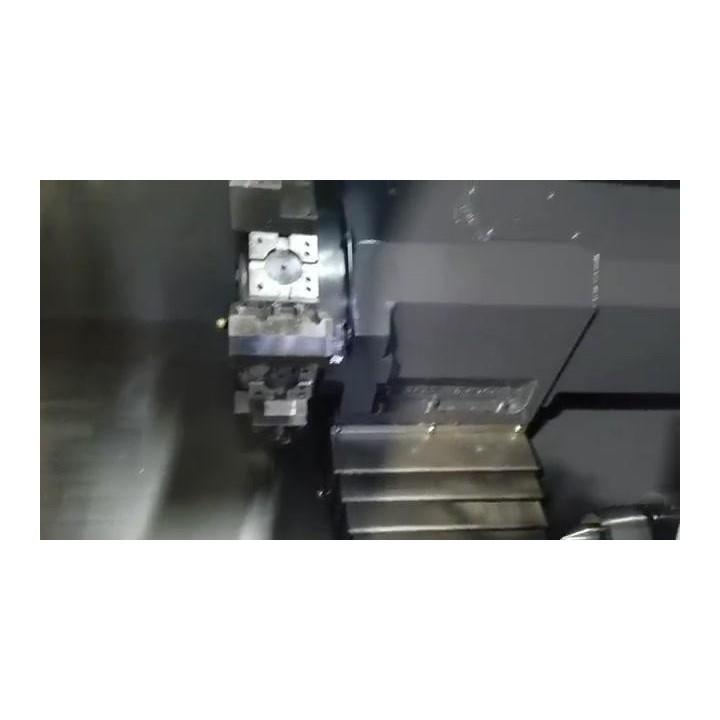

LYNX 220LMA

Max Diameter Bar Capacity...................... 2"
Max Swing Over Bed / Carriage............... 23.2" / 6.7"
Max Turning Diameter (Max / Std)........... 9.84" / 6.7"
Max Machining Length............................. 20.1"
Main Motor............................................... 20 / 15 HP
Tools........................................................ 12 / 24
Spindle Speed......................................... 60 - 6000 RPM
Spindle Bore............................................ 2.4"
Milling Motor............................................ 5 HP
Milling Speed.......................................... 6000 RPM
Rapid Traverse Rates (X / Z).................. 1181 / 1417 IPM
X-Axis Travel............................................ 17.7"
Z-Axis Travel ...........................................13"
C-Axis Index........................................... .001 Degrees
Turret Index (Single Step)......................... 0.15 Seconds
Tailstock Taper.......................................... MT#4
Machine Dimensions (L x W x H) 144" x 63" x 65"
Machine Weight 7275 lbs.
FEATURES:
FANUC i Series
10.4" Color LCD
PC / MCIA Interface
C-Axis Milling Capability

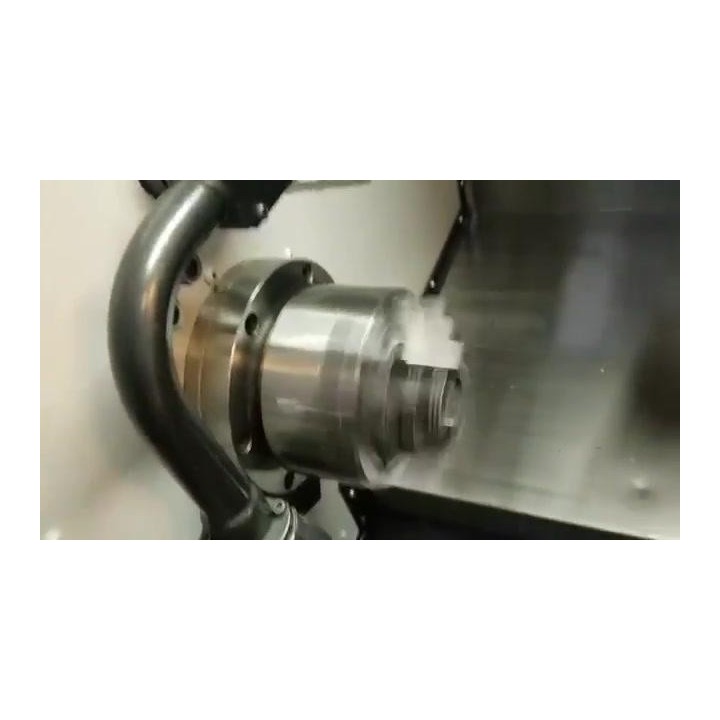

6" Samchully MH-206 Hydraulic Chuck
