NLX2500Y/700

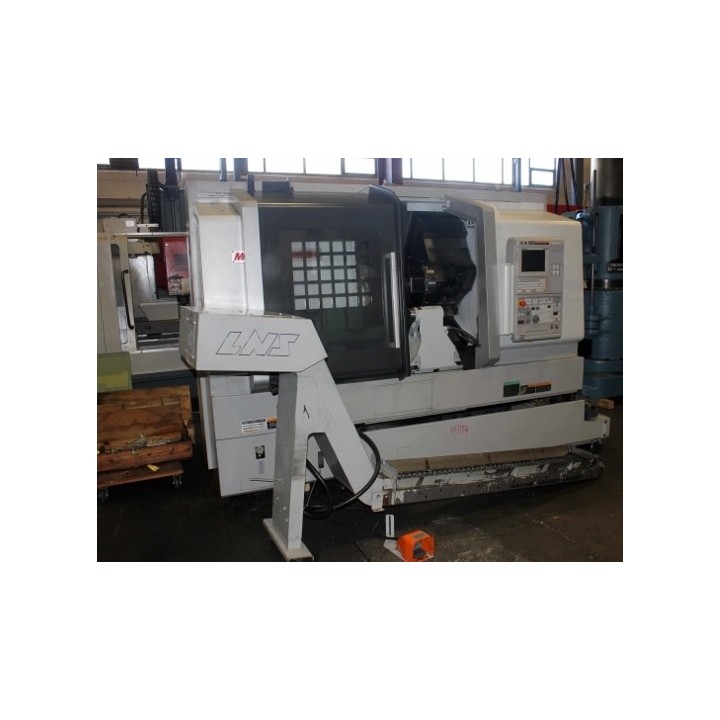

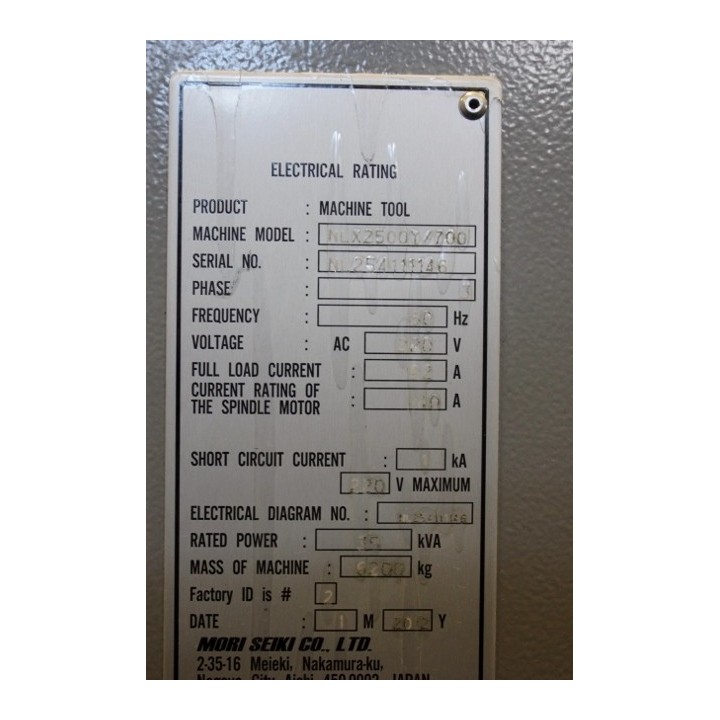

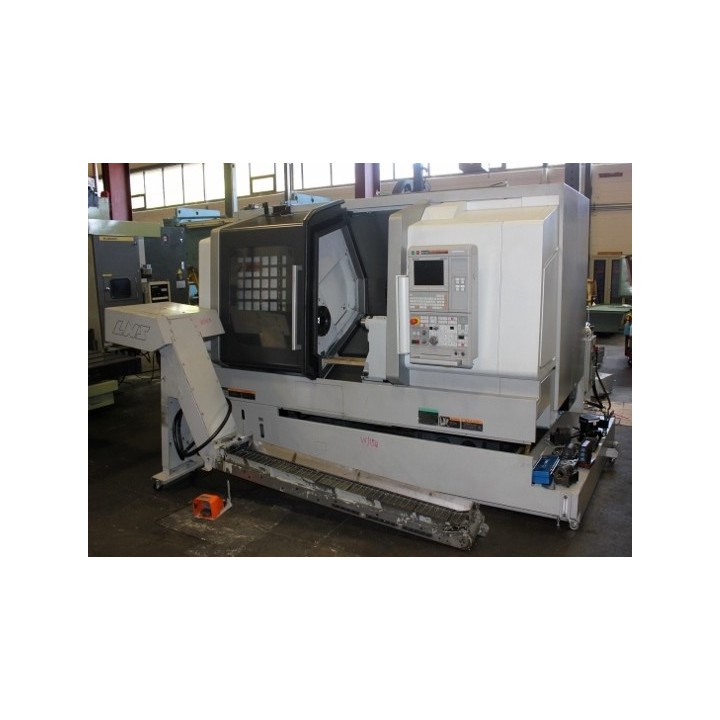

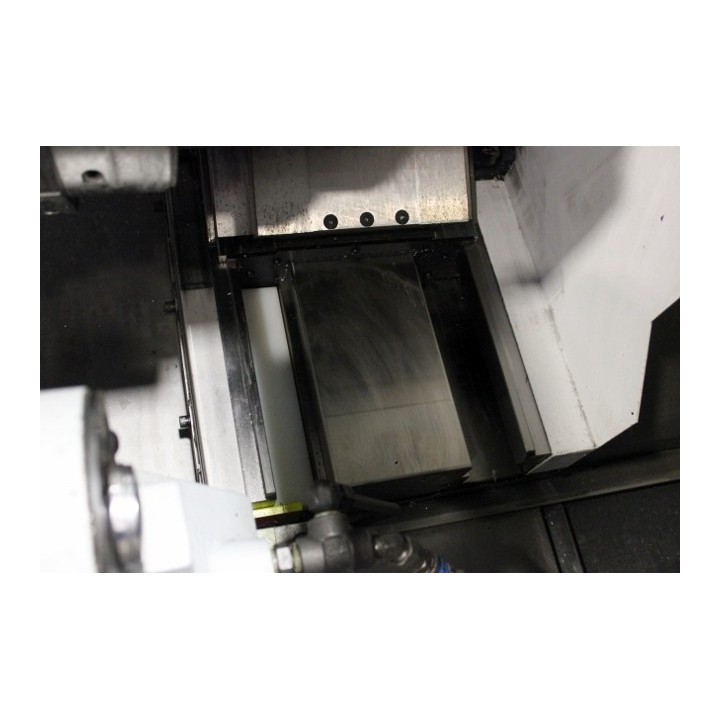

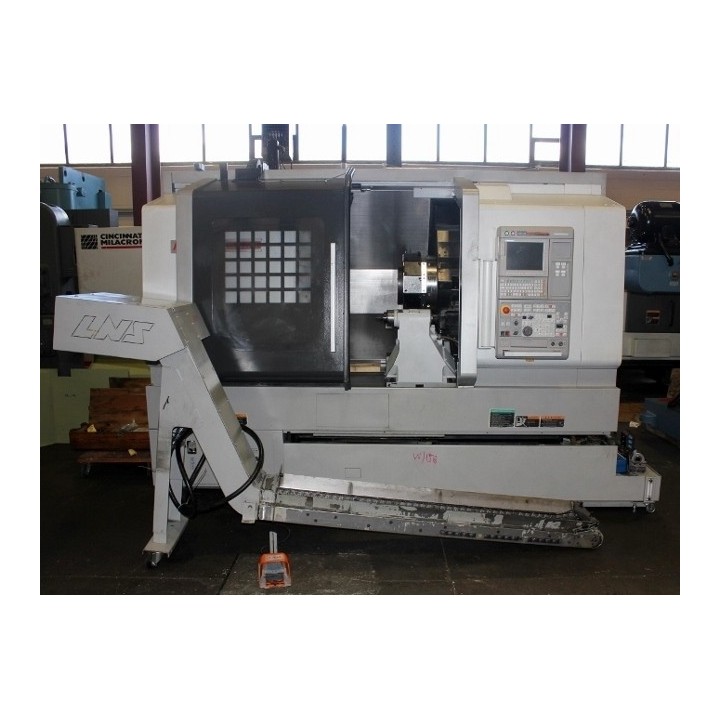

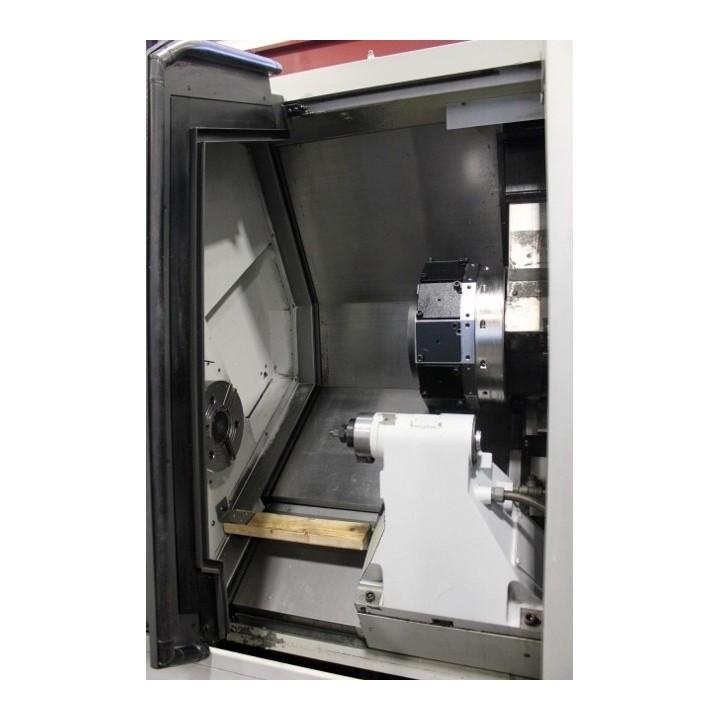

Model: 2012 MORI SEIKI NLX2500Y/700 Four-Axis CNC Lathe / Turning Center with Milling, S/N: NL254111146 (New 2012)

Specifications:

Capacity:
Swing over bed
Swing over bed with interference from front cover
Swing over cross slide
Maximum bar capacity
Standard turning diameter
Maximum turning diameter (main spindle)
Maximum turning length

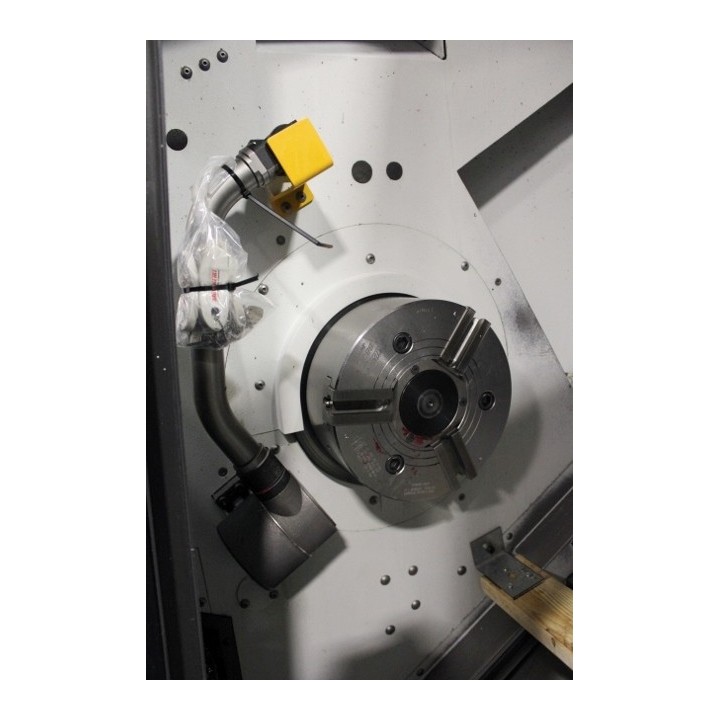

Main Spindle:
Maximum speed
Spindle nose
Spindle bearing diameter
Spindle through hole diameter
Minimum spindle indexing angle (C-axis)

Travels:
X-axis travel
Y-axis travel
Z-axis travel

Feed Rate:
X & Z-axes rapid traverse rate
Y-axis rapid traverse rate
Tailstock advance/retract traverse rates
Maximum jog feedrate of tailstock

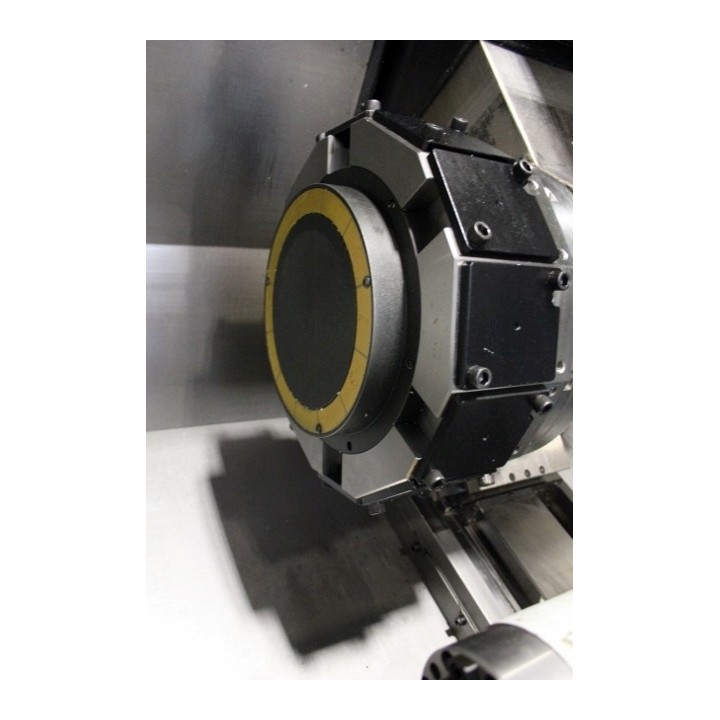

Turret:
Number of turret tool stations
Shank height for angled tool
Shank diameter for boring bar (main spindle)
Rotary tool machining capacity
Maximum rotary tool speed

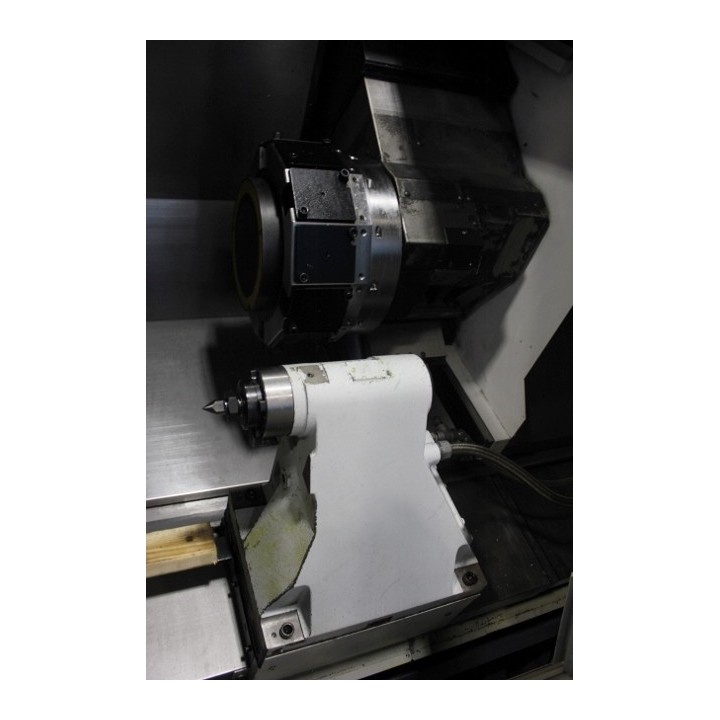

Tailstock:
Travel
Spindle diameter
Spindle taper

Cutting time
Operation time
Power On hours
36.22"
23.58"
29.21"
3.15"
10.67"
14.4"
27.76"


4,000 R.P.M.
A2-8
5.51"
3.58"
.001°


10.24"
31.3"
+/-1.97"


1,181 I.P.M.
393.7 I.P.M.
787/275 I.P.M.
0 to 196.85 I.P.M.


12
.98"
1.97"
Drill - 1.02", Tap - M20
6,000 R.P.M.


28.9"
3.15"
#3 Morse

3,531 hours
4,354 hours
25,703 hours


Capacity:
Swing over bed..........................................36.22"
Swing over bed with interference from front cover.......23.58"
Swing over cross slide..................................29.21"
Maximum bar capacity...................................3.15"
Standard turning diameter...............................10.67"
Maximum turning diameter (main spindle).................14.4"
Maximum turning length..................................27.76"

Main Spindle:
Maximum speed..........................................4,000 R.P.M
Spindle nose.............................................A2-8
Spindle bearing diameter.................................5.51"
Spindle through hole diameter............................3.58"
Minimum spindle indexing angle (C-axis).....................001°

Travels:
X-axis travel......................................10.24"
Y-axis travel......................................31.3"
Z-axis travel.......................................+/-1.97"

Feed Rate:
X & Z-axes rapid traverse rate.......................1,181 I.P.M
Y-axis rapid traverse rate...........................393.7 I.P.M.
Tailstock advance/retract traverse rates..............787/275 I.P.M.
Maximum jog feedrate of tailstock.....................0 to 196.85 I.P.M.

Turret:
