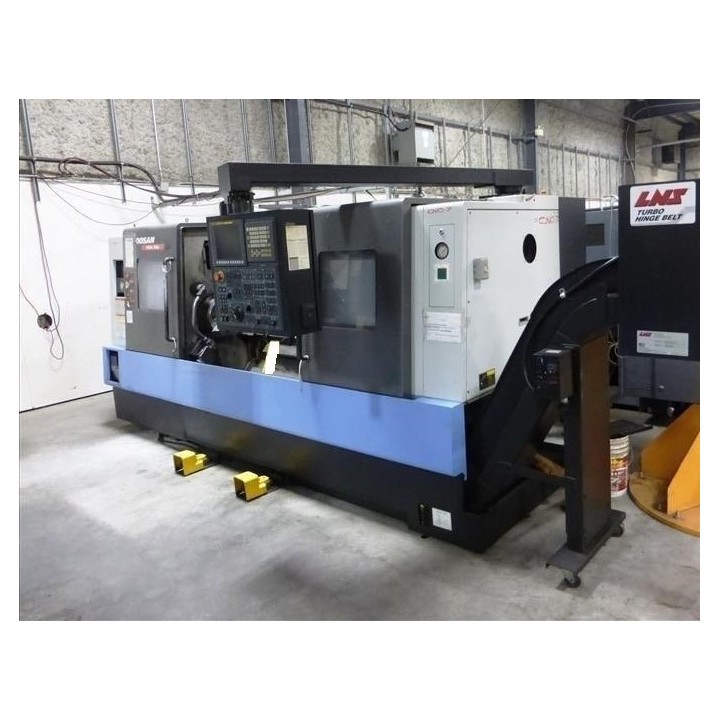

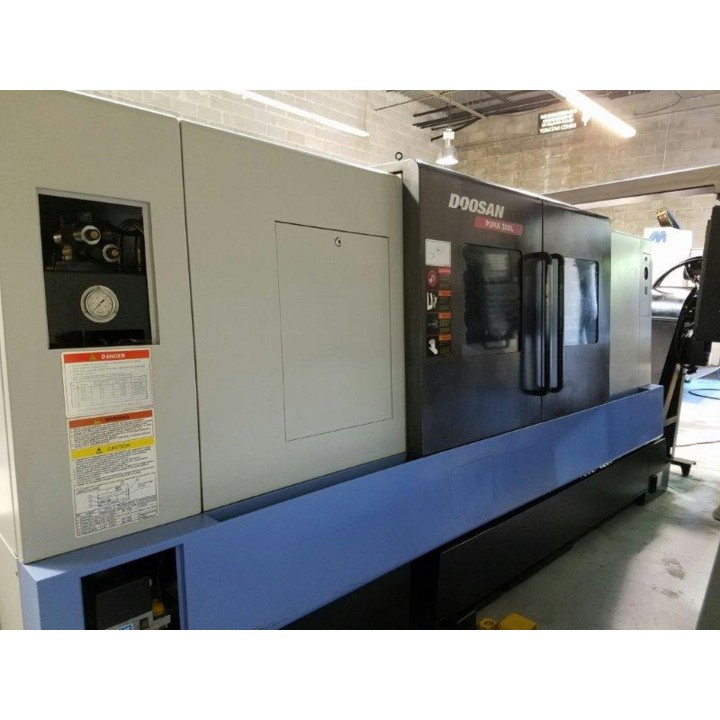

PUMA 300LC

Doosan Puma 300LC Equipped With:

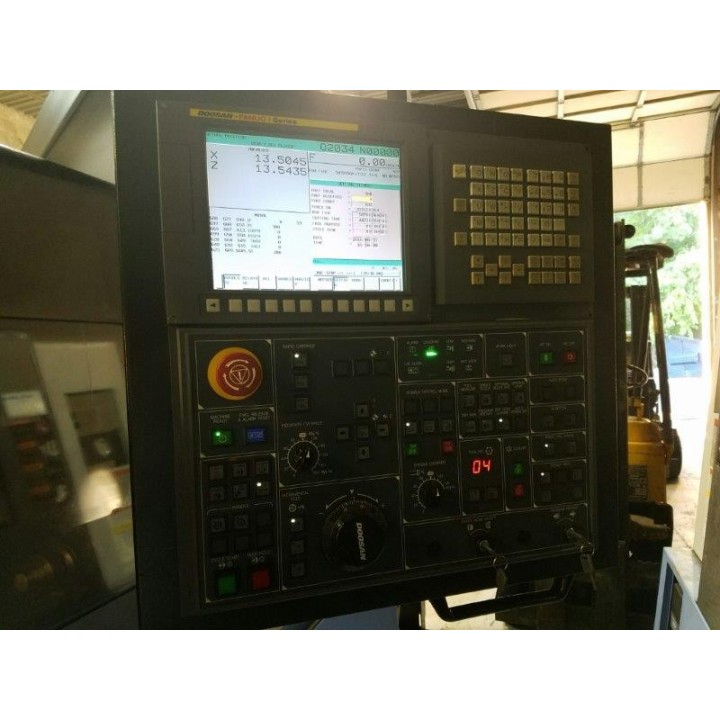

Fanuc i series CNC Control
Box way construction
Rigid Tapping

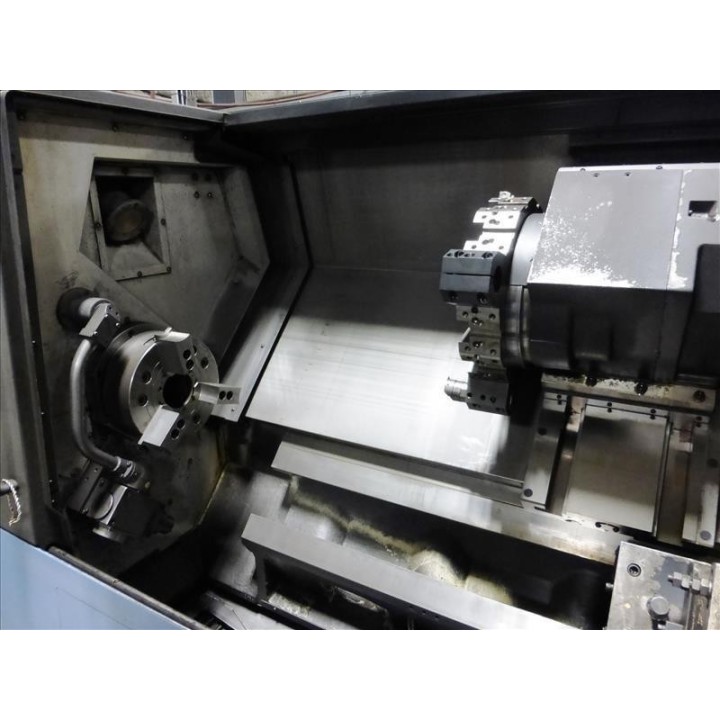

12″ 3 Jaw Hydraulic Chuck
A2-11 Spindle
Auto Tool Presetter
Hydraulic Programmable Tailstock and Quill
PCMCIA Card Slot
Coolant System
Barfeed Interface

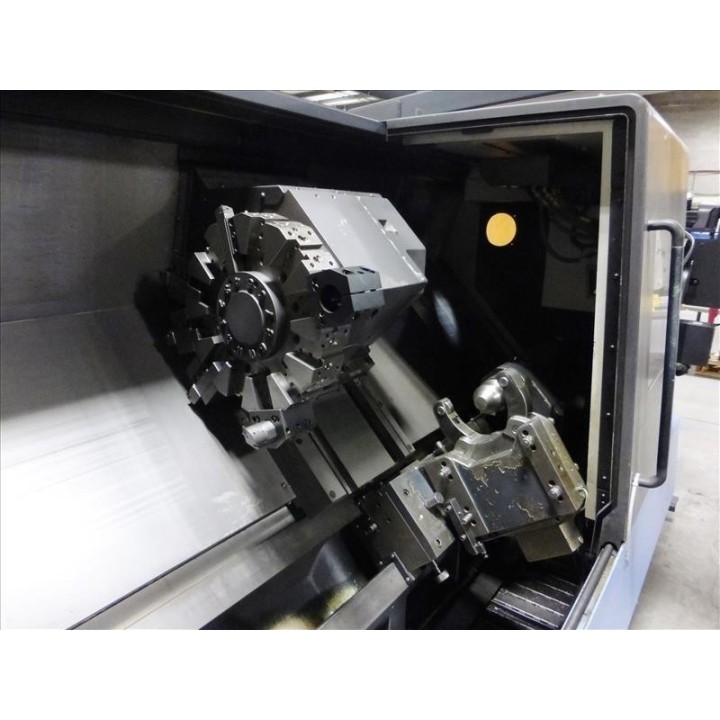

12 Station Automatic Turret
Foot Switch
Turbo Chip Conveyor
General:
Power: 45 kva, 220v / 3-Phase
Overall Dimensions: 150″ x 77″ x 80″ High
Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
Weight: 15000 lbs
Doosan Puma 300LC Specifications:
Capacity:
Max Turning Diameter: 15.7″
Max Turning Length: 50.4″
Max Bar Capacity: 4.05″
Swing Over Bed: 22.4″
Distance Between Centers: 52.8″
X Axis Travel: 11.1″
Z Axis Travel: 52.4″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-11
Spindle Bore: 4.5″
Spindle Speed: 0 – 2800 RPM
Spindle Motor: 35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.97″
Tailstock Quill Travel: 4.7″
