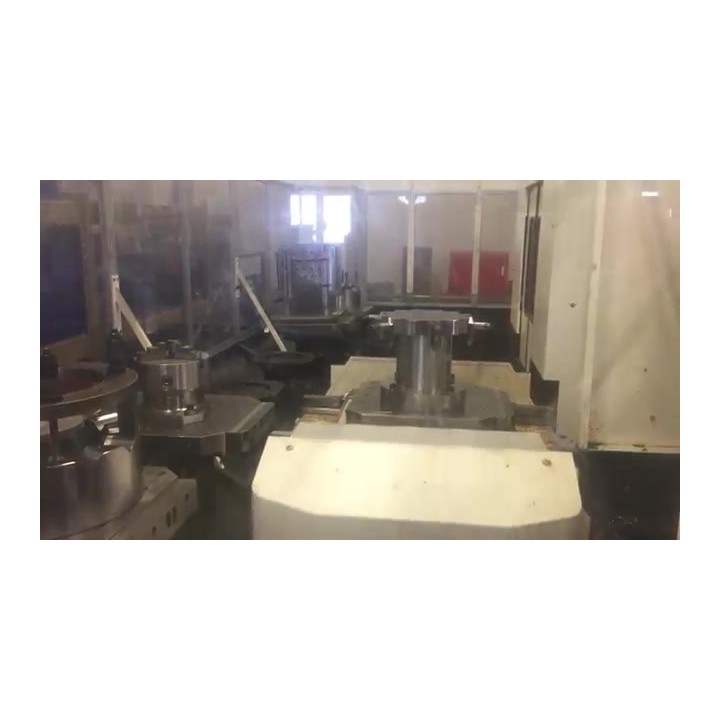

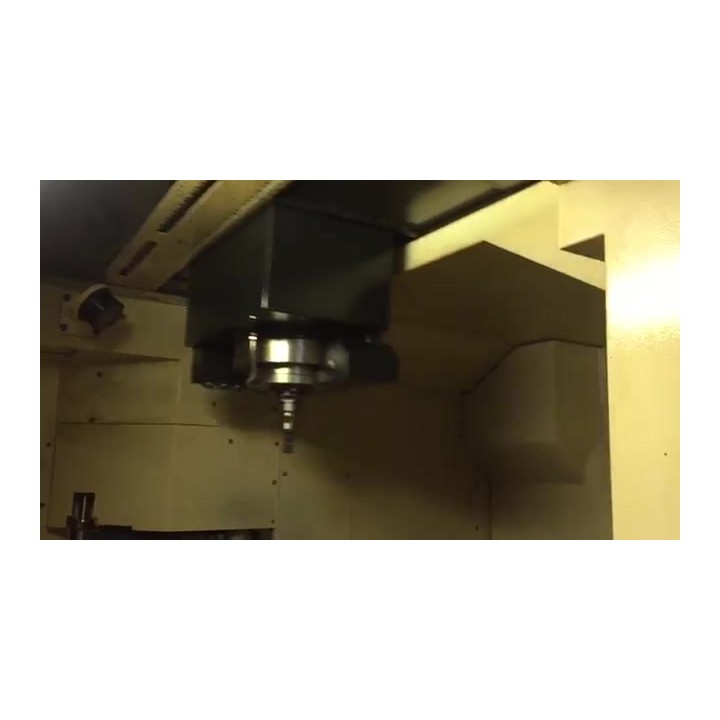

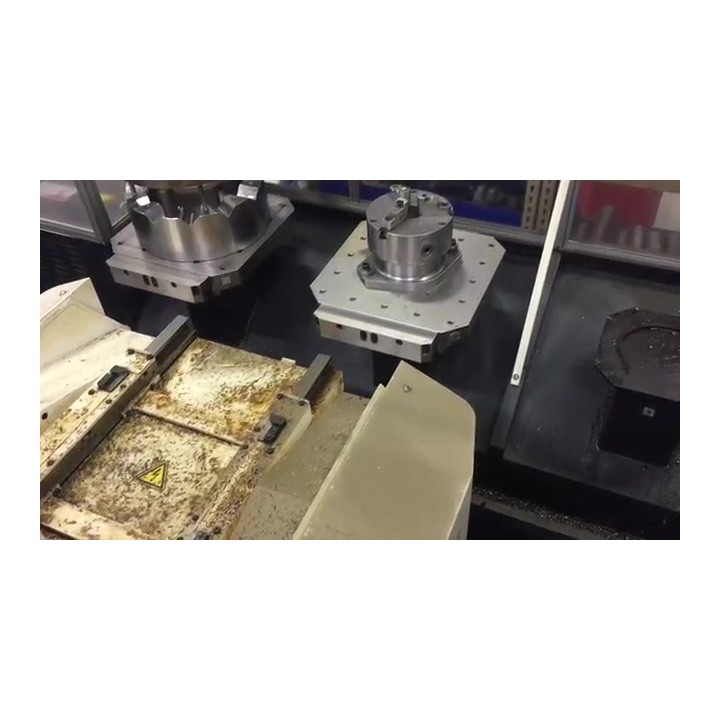

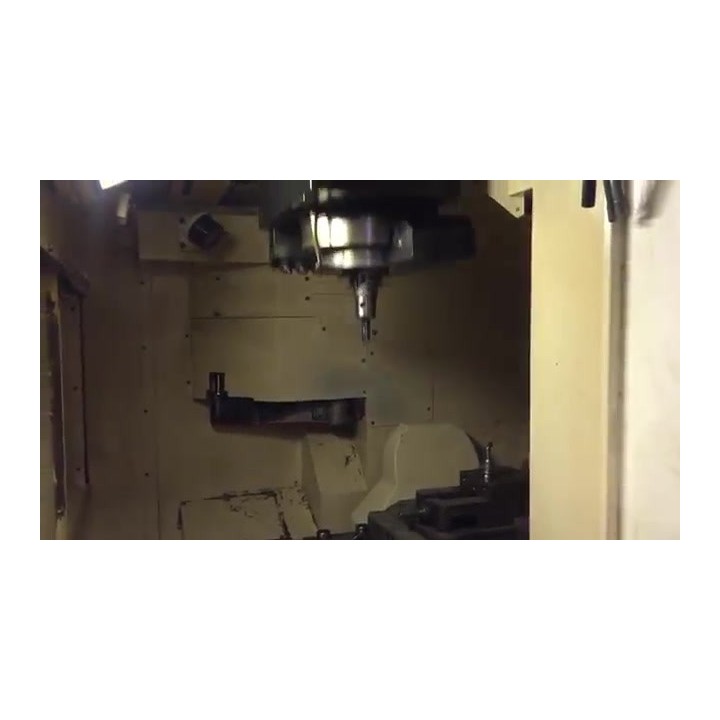

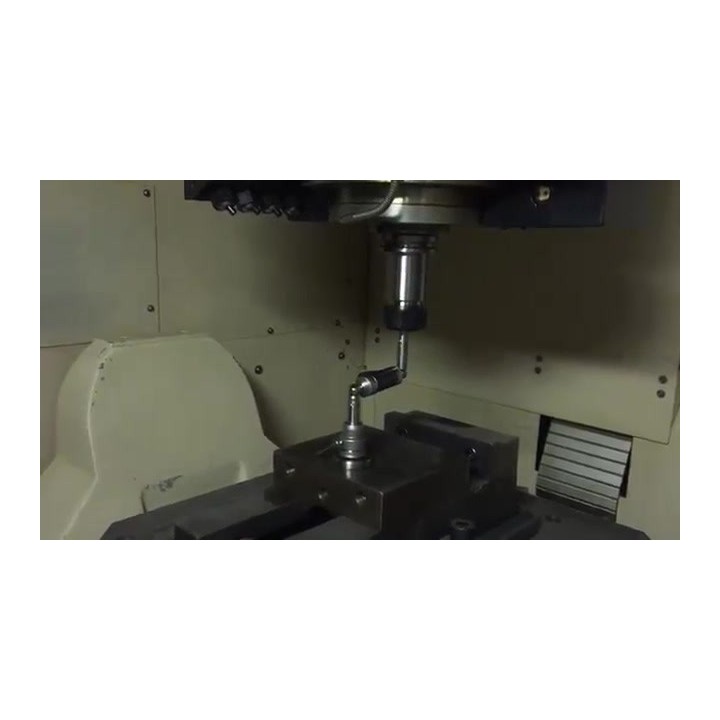

2011 MAZAK VARIAXIS 630-5X

Max. Swing 28.74" / 730 mm
Max. Machining Diameter 28.74" / 630 mm
Max. Work Length 500 mm
Max. Machining Length 19.69" / 500 mm
Max. Work Mass 500 kg
Max. Tool Length 360 mm
Max. Tool Diameter 80 mm
Max. Tool (Adjacent to Empty) 125 mm
Table Tilt (A-Axis) -120° to +30°
Table Size 24.8” x 19.69” / 630 mm x 500 mm
Spindle RPM 12,000 RPM
Spindle Taper CAT40
Tool Magazine 80 ATC
Motor Output 22 kW / 30 HP
X-Axis Travel 24.8” / 630 mm
Y-Axis Travel 30.12” / 765 mm
Z-Axis Travel 20.08” / 510 mm
Rapid Traverse Rate (X,Y,Z) 1,969 IPM / 5,000 mm/min
Rapid Traverse Rate (A,B) 18,000 deg/min
