VF-9/50

HAAS VF-9-50 VERTICAL MACHINING CENTER
S-N: 1065893 - NEW: 2008

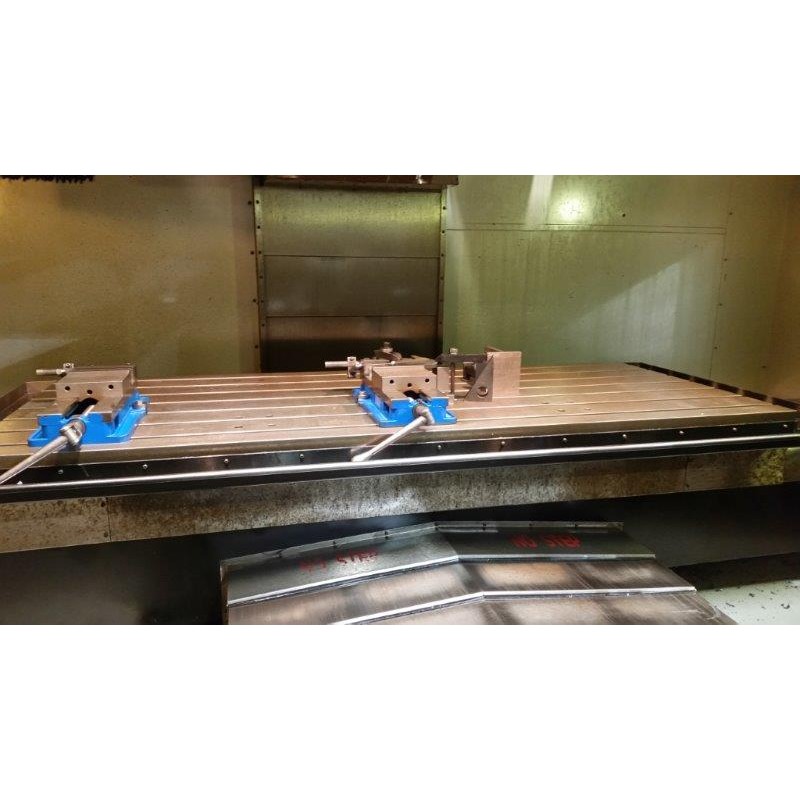

TABLE SIZE .................... 36" X 84"
MAXIMUM TABLE WEIGHT ... 4000 LBS
X-AXIS TRAVEL ................. 84"
Y-AXIS TRAVEL ................. 40"
Z-AXIS TRAVEL ................. 30"
SPINDLE NOSE TO TABLE MIN-MAX ...... 5-35"
RAPID TRAVERSE X-Y-Z .......... 600 IPM
MAXIMUM CUT ............ 500 IPM
SPINDLE SPEEDS (2 GEARED SPEEDS) ....... 7500 RPM
MAXIMUM TORQUE .................... 340 FT-LB at 700 RPM
MAIN MOTOR .................... 30 HP
SPINDLE TAPER ................. CAT 50
SIDE-MOUNT TOOL CHANGER .......... 30 ATC
MAXIMUM TOOL WEIGHT .................. 30 LB
MACHINE DIMENSIONS ............ 183" X 140" X 191"
MACHINE WEIGHT ........... 25,000 LBS
EQUIPPED WITH:
* HAAS CNC CONTROL EXPANDED MEMORY 16MB
KEYSWITCH MEMORY LOCK FOR FRONT PENDANT
MILL MACRO SOFTWARE
* 2-SPEED GEARBOX * HIGH-INTENSITY LIGHTING
* THROUGH-SPINDLE COOLANT * PROGRAMMABLE COOLANT
AUXILIARY FILTER FOR TSCHP55 GALLON CLNT
* CHIP AUGER * MANUALS
* EXCELLENT CONDITION
