HERMLE C-800 U

4-axis vertical machining center
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Length 2.700 mm
Width 2.210 mm
Height 2.930 mm
Spindle speed 15.000 rpm
Tool changer slots 30

Occasional seller

C
CENTRAL CATALANA MAQUINARIA SA Private seller
Member since 2017
2 ads online

SEND REQUEST

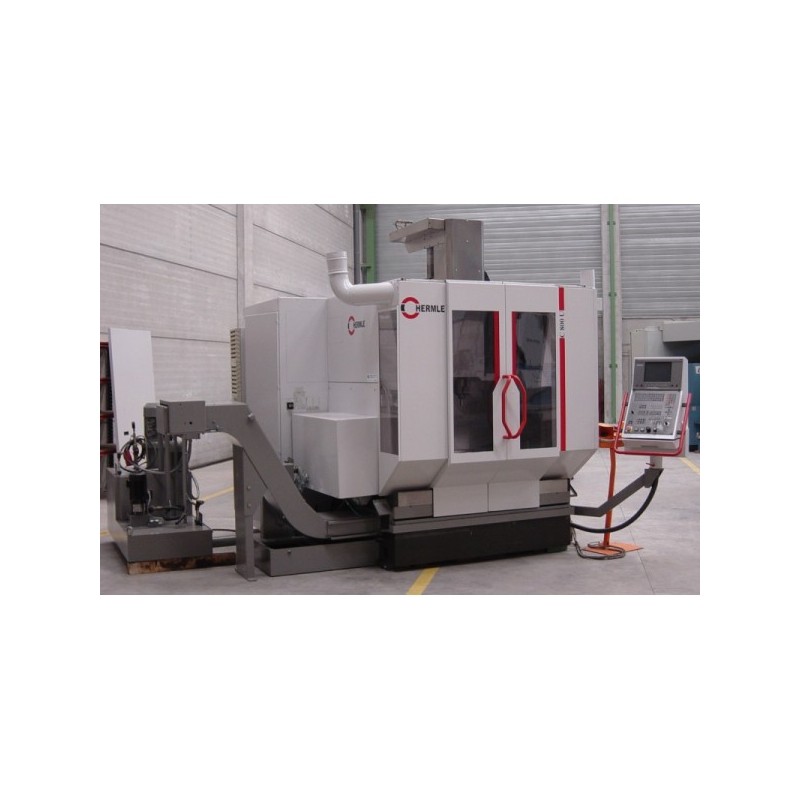

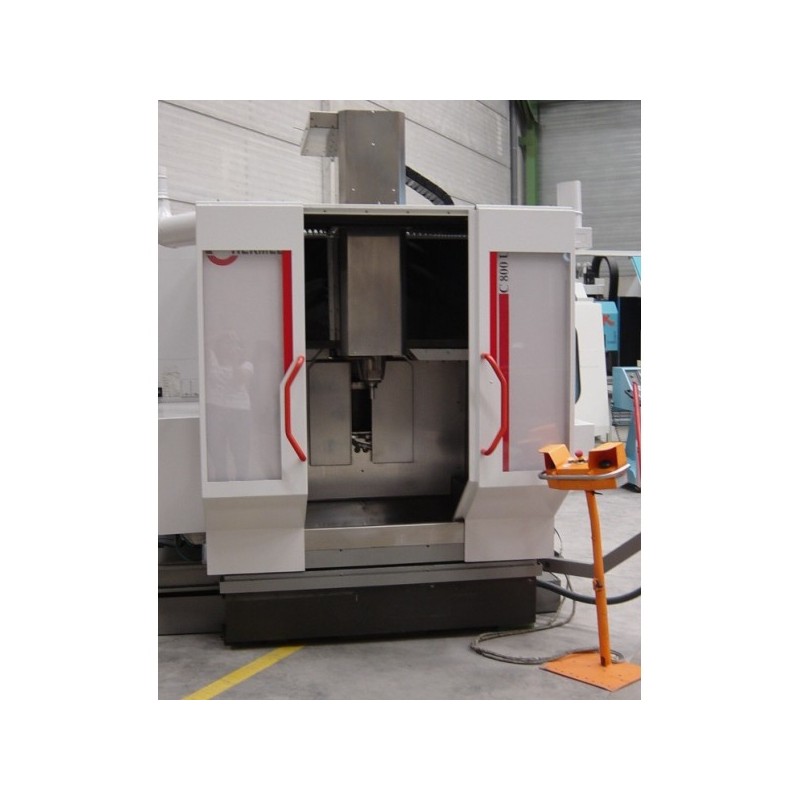

HERMLE C-800 U
HERMLE C-800 U

HERMLE 4-axis vertical machining center
Model C-800 U
360º tilting table (4 axes)
Travel:
•X-axis 800 mm
•Y-axis 600 mm
•Z-axis 500 mm
Axis speed 35 m/min
Spindle speed 15000 rpm
Spindle diameter 70 mm
HSK A63 equivalent taper (ISO 40)
Power 400 V, 50 Hz
Machine dimensions 2700 x 2210 x 2930 mm
Weight 8500 kg
Year 1999

Equipped with:
•HEIDENHAIN TNC 430
•30-tool magazine
•Internal coolant 40 bar
•Hydraulic workpiece clamping unit
•Integrated cabinet cooling
•Chip conveyor
•Ethernet
•Prepared for:
Breakage probe
Tool centering probe
Workpiece centering probe

  • Seller's country: Spain
  • State: Used - Functional
  • Weight: 5,000 - 10,000 kg
  • Long: 2,000 - 3,000 mm
  • Width: 2,000 - 3,000 mm
  • High: 2,500 - 3,500 mm
  • X Travel: 500 - 1,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: 500 - 800 mm
  • Spindle speed: More than 15,000 rpm
  • Tool changer: 30 - 60
  • Number of axes: 4 axes
  • Condition: Array
  • Peso: 0.000000
