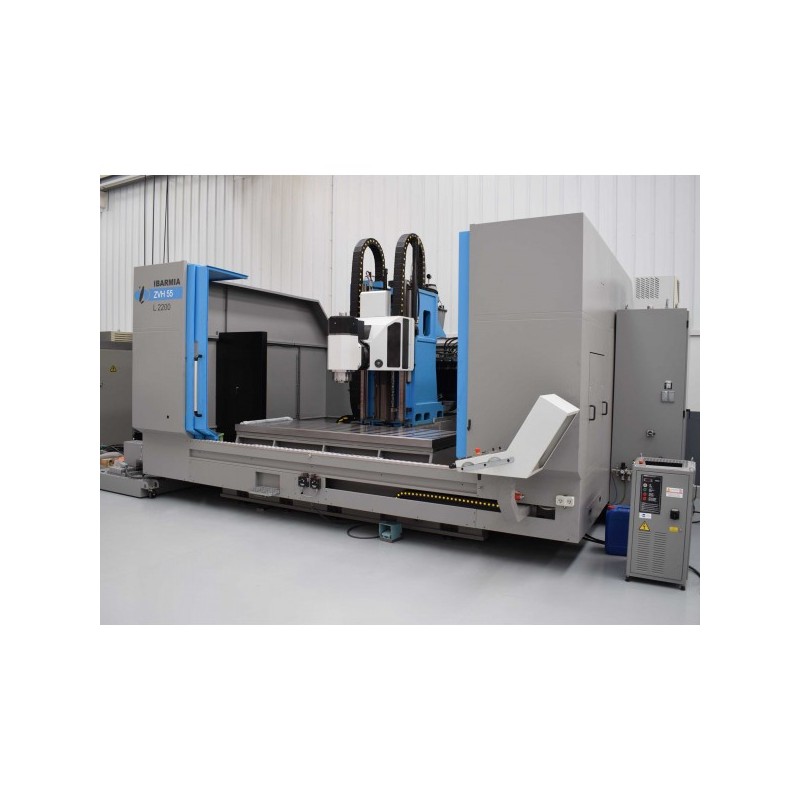

Ibarmia ZVH 55 L2200

Ibarmia machining center for sale at Maquinaria Colás. Year 2003. Excellent condition. More information and budget request at http://www.maquinariacolas.com/maquinaria/centro-mecanizado-de-ocasion-ibarmia-zvh55-l2200/
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 16.000 kg
Length 2.200 mm
Width 800 mm
Height 860 mm
Control type CNC
CNC control brand Heidenhain
X travel 2.200 mm
Y travel 800 mm
Z travel 860 mm
Spindle speed 8.000 rpm
Spindle power 25 kW
Tool changer slots 40

Occasional seller

M
Maquinaria Colás Private seller
Member since 2017
5 ads online

SEND REQUEST

Ibarmia ZVH 55 L2200

Year 2003
CNC Heidenhain TNC 530
Table surface 2,600 x 850 mm
Longitudinal travel (X-axis) 2,200 mm
Cross travel (Y-axis) 800 mm
Vertical travel (Z-axis) 860 mm
Automatic CNC head swivel ± 105º
Maximum axis feed (X,Y,Z) 30 m/min
Spindle speed 8,000 rpm
Spindle taper HSK A-100
Main motor power 25 KW
Tool changer RANDOM INCLUDED
Number of tools in changer 40 Tools
Axis measuring system Heidenhain optical scale
Heidenhain HR-410 portable handwheel INCLUDED
Chip conveyor INCLUDED
Maximum table load 2,000 Kg
Machine weight 16 Tn
Total machine power 55 Kw
Machine color RAL 5012 / RAL 7037

  • Year: 2003
  • Seller's country: Spain
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • Long: 2,000 - 3,000 mm
  • Width: Up to 1,000 mm
  • High: Up to 1,500 mm
  • Control type: CNC
  • X Travel: 2,000 - 3,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 8,000 - 15,000 rpm
  • Spindle power: 15 - 30 kW
  • Tool changer: 30 - 60
  • CNC control brand: Heidenhain
  • Condition: Array
  • Peso: 0.000000
