CF22/25 (9671905)

Correa
Reconditioned CORREA CF22/25 fixed-bed milling machine. Excellent machining quality combined with the reliability of the CORREA brand.
For sale with warranty!
Share
Ask for price On request
Condition Used - Working

Machine data

Manufacturer CORREA
Condition Used - Working
Hours of use 50 h
Price type On request

Technical specifications

Length 6.605 mm
Width 2.900 mm
Height 2.760 mm
X travel 2.500 mm
Spindle speed 4.000 rpm
Spindle power 22 kW
Spindle taper ISO 50

Occasional seller

N
NC SERVICE MILLING MACHINES, S.A. Private seller
Member since 2017
33 ads online

SEND REQUEST

CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)
CF22/25 (9671905)

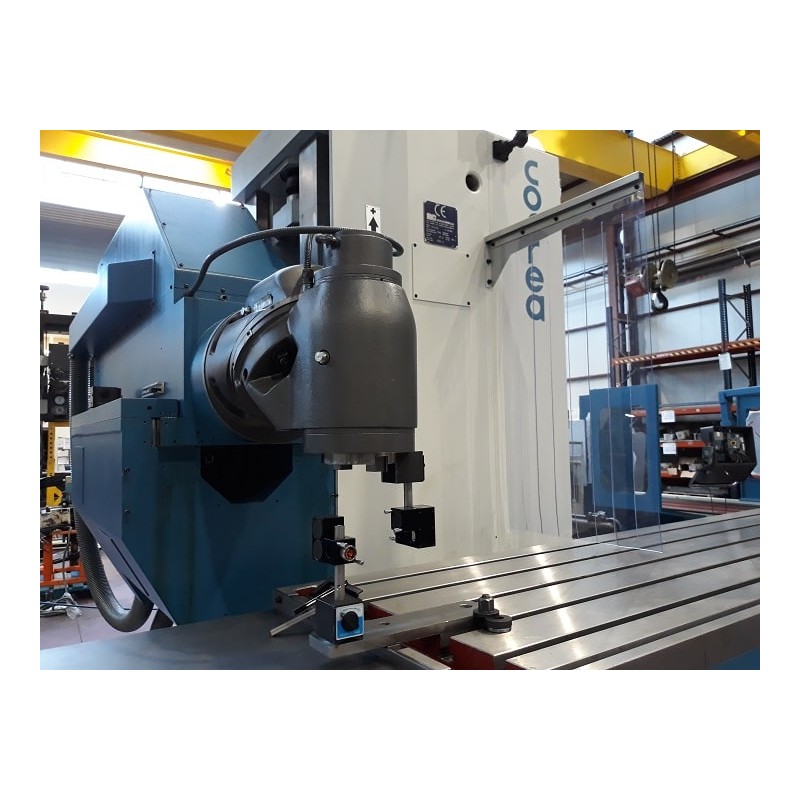

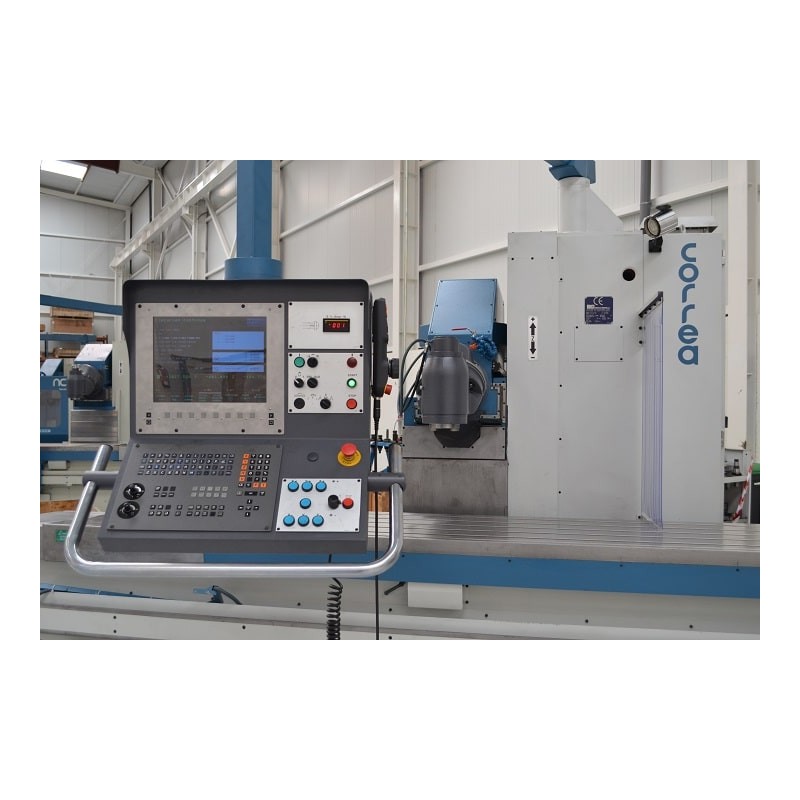

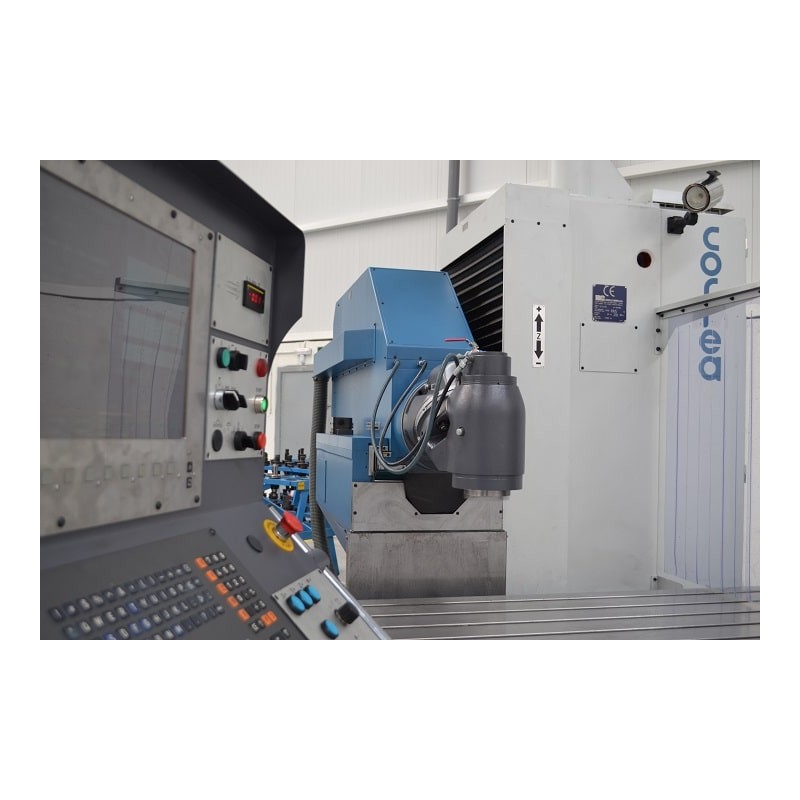

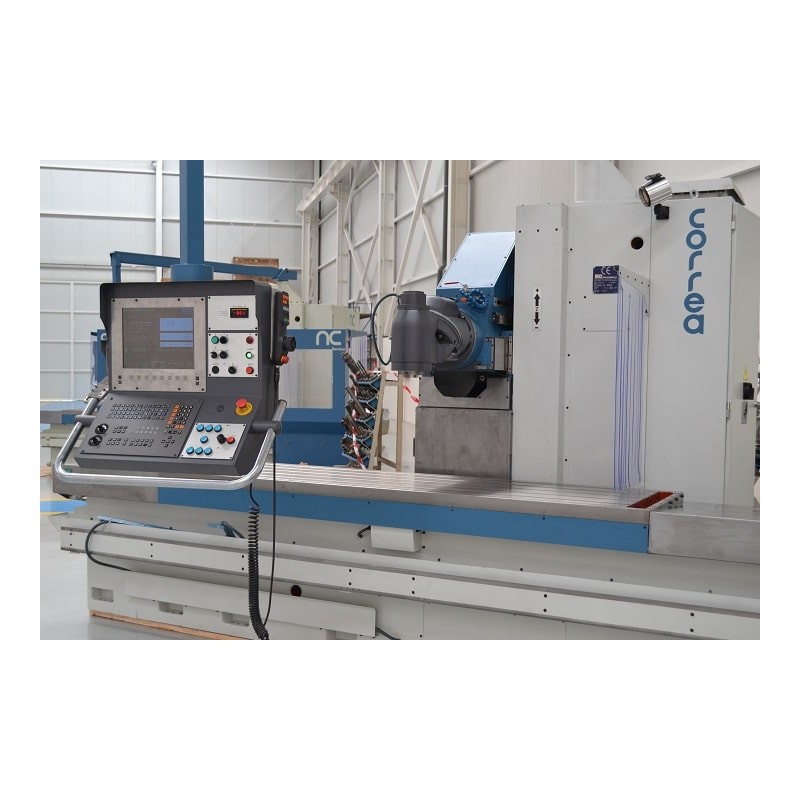

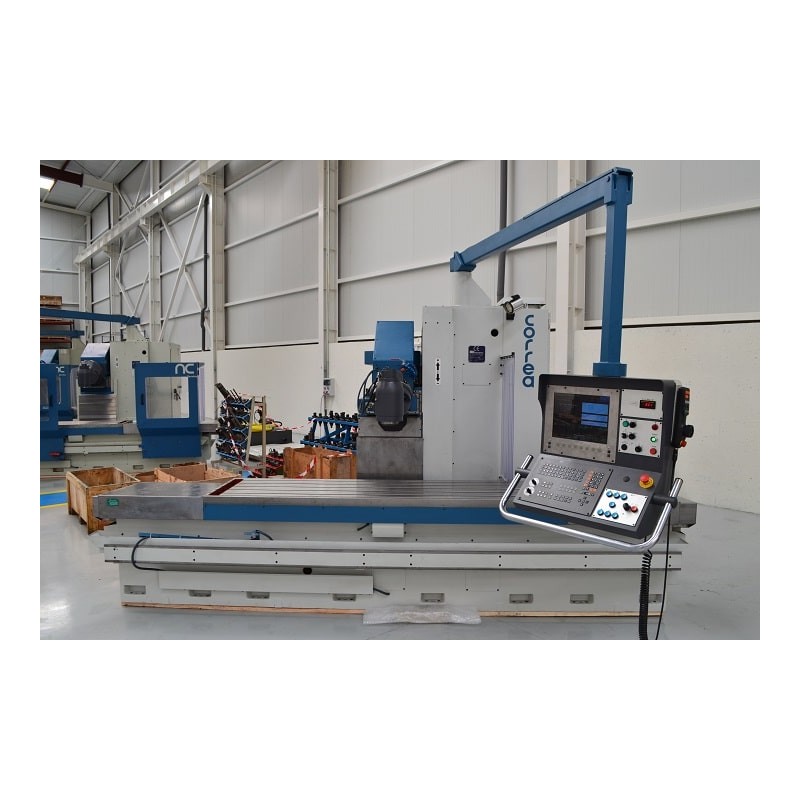

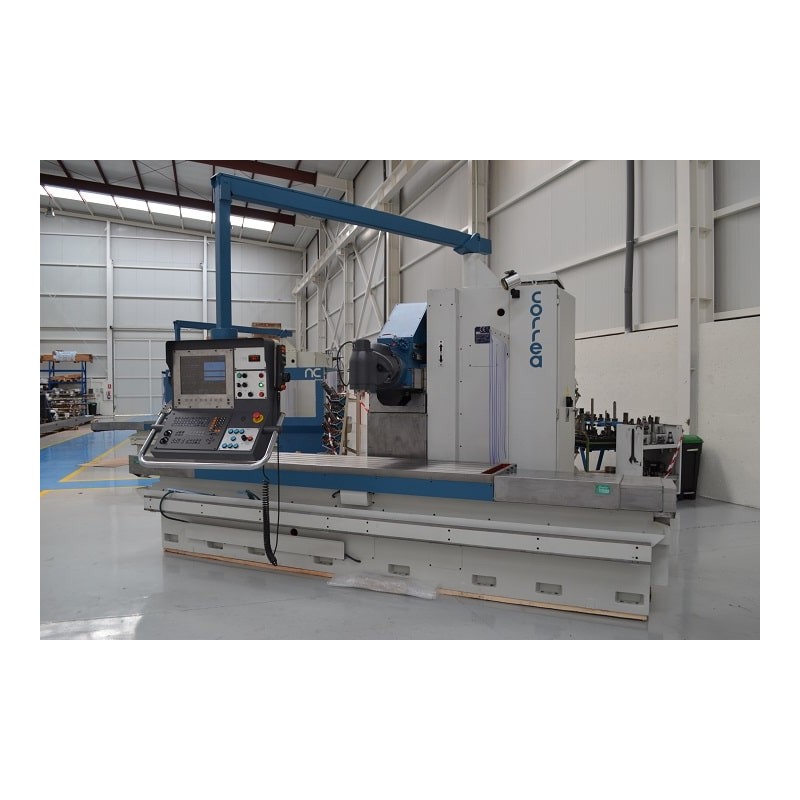

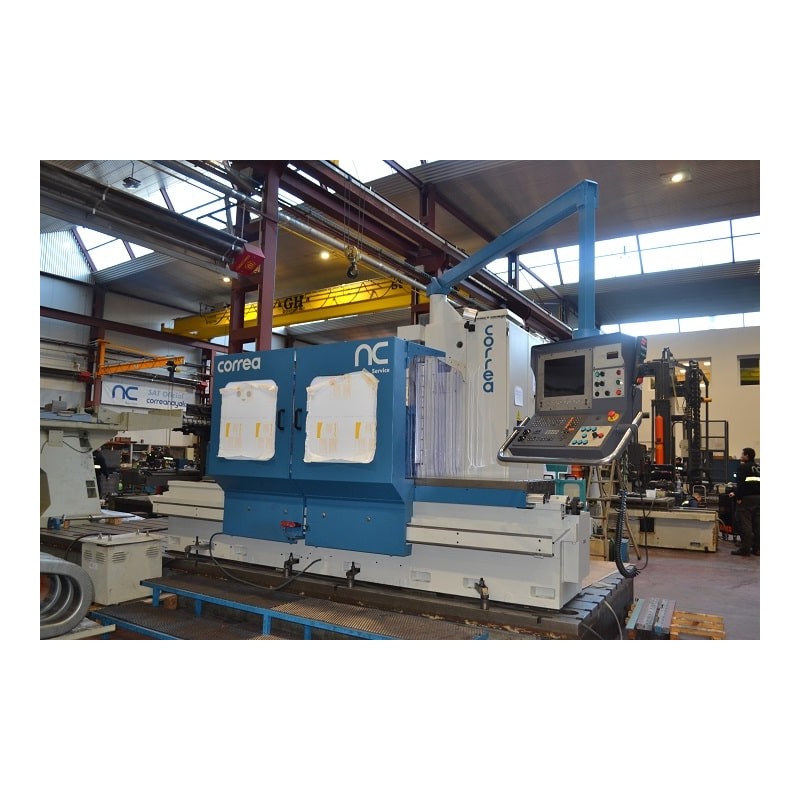

CORREA CF22/25 Fixed Bed Milling Machine (S/N: 9671905)
Year of manufacture: 1998
Condition: Rebuilt
Numerical control: HEIDENHAIN TNC-426

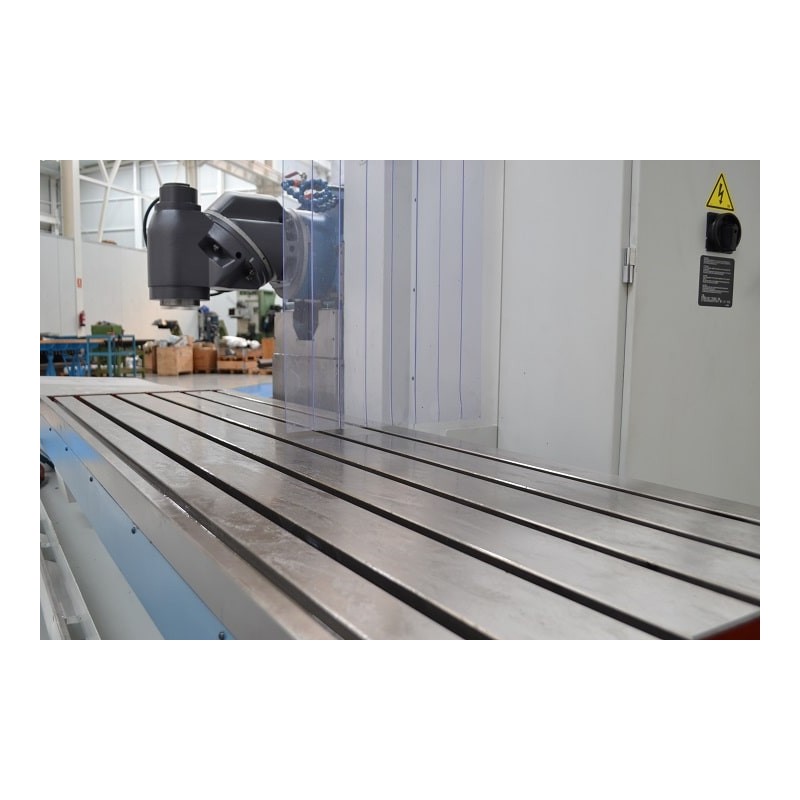

Table dimensions: 2,500 x 700 mm
Number of slots: 5
Slot dimensions: 22mm
Longitudinal travel X: 2,500 mm
Cross travel Y: 800 mm
Vertical travel Z: 800 mm

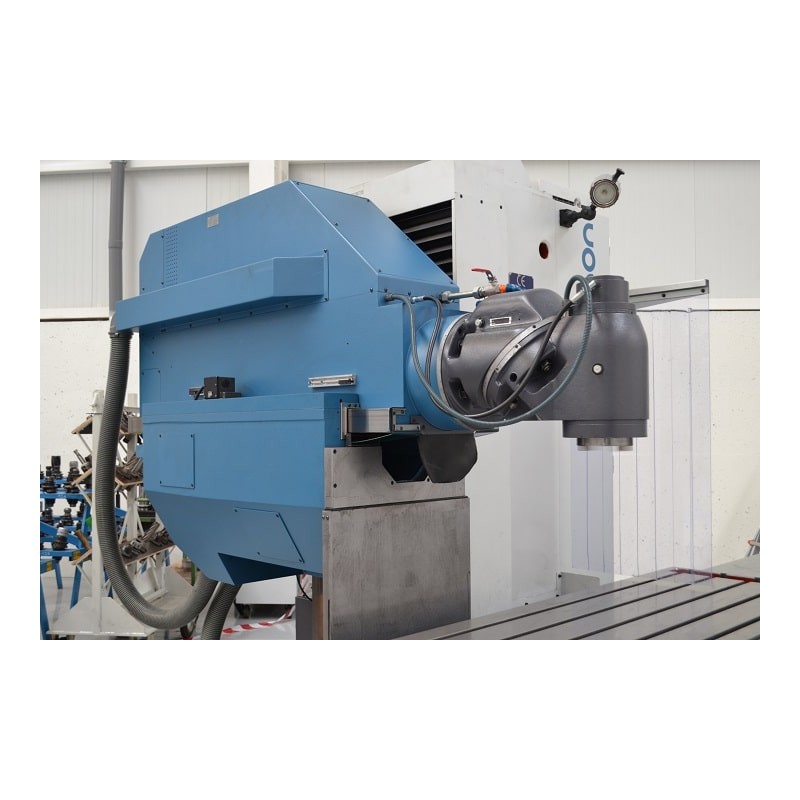

Head: Universal manual (U22)
Tool clamping: Hydraulic
Taper: A50 - DIN69871
Speed range: 20 - 4,000 rpm
Spindle power: 22 kW
Working feeds: 5 - 5,000 mm/min
Rapid traverses (X / Y, Z): 12,000 mm/min
Maximum weight on table: 4,000 kg
Approximate machine weight: 9,500 kg
Machine dimensions: 6,605 x 2,900 x 2,760 mm
ACCESSORIES:
Coolant: External
Electronic handwheel: New! HR-510
Enclosure
Sales conditions:
Warranty: Mechanical parts 6 months
Sale price (Ex Works): Consult

  • Year: 1998
  • X travel (mm): 2500
  • Y travel (mm): 800
  • Hours of use: 0 - 100
  • Chip extractor: NO
  • Table size (width) (mm): I need the text you want me to translate. Please provide the Spanish text you'd like translated into English.
  • Weight (kg): 9500
  • Seller's country: Spain
  • State: Used - Functional
  • Hours of use (value): I need the text you want me to translate. You only wrote "50". Please provide the full text you'd like translated from Spanish to English.
  • Weight: Up to 500 kg
  • Long: More than 5,000 mm
  • Width: 2,000 - 3,000 mm
  • High: 2,500 - 3,500 mm
  • X Travel: 2,000 - 3,000 mm
  • Y travel: 600 - 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: 15 - 30 kW
  • CNC spindle cone: ISO 50
  • Condition: Array
  • Peso: 0.000000
