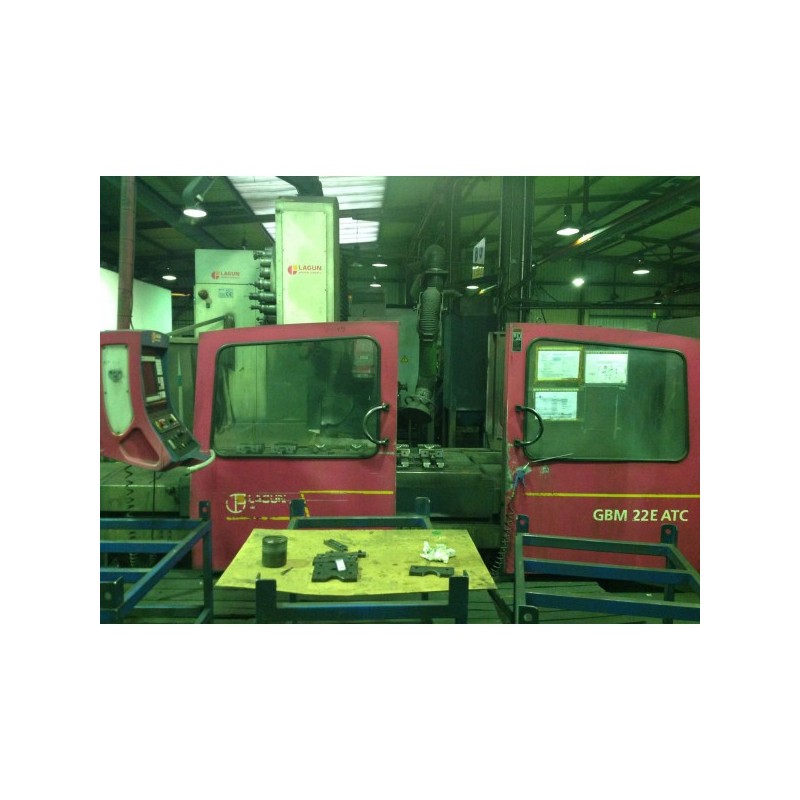

5-Axis CNC Bed Type Milling Machine LAGUN mod. GBM 22E

Manufacturer: Lagun
Model: GBM 22E
YOM: 2000
Control: Fagor 8055
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Weight 15.000 kg
X travel 2.000 mm
Y travel 1.000 mm
Z travel 1.000 mm
Spindle power 27,50 kW
Spindle taper ISO 50

Occasional seller

M
Metalequip Private seller
Member since 2017
40 ads online

SEND REQUEST

5-Axis CNC Bed Type Milling Machine LAGUN mod. GBM 22E
5-Axis CNC Bed Type Milling Machine LAGUN mod. GBM 22E

Table surface: 2200x1040 mm
Distance from table center to column: 1217 mm
Number of T-slots and width: 7 - 22mm
Slot distance: 140 mm
Maximum weight on table: 7000 kg
X- Axis travel: 2000 mm
Y- Axis travel: 1000 mm
Z- Axis travel: 1000 mm
C- Axis travel: + - 180 °
A- Axis travel: + - 180 °
Spindle taper: ISO 50
Main motor power: 22-27.5 kW
Continuous speed variation: 50 ÷ 3000 rpm
Rapid traverse: 10000 mm-min
Machine weight: 15000 kg

  • Seller's country: Poland
  • State: Used - Functional
  • Weight: More than 10,000 kg
  • X Travel: 2,000 - 3,000 mm
  • Y travel: More than 1,000 mm
  • Z travel: More than 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Spindle power: 15 - 30 kW
  • CNC spindle cone: ISO 50
  • Condition: Array
  • Peso: 0.000000
