FPM60 (8800901)

Name: FPM60 (8800901)
Brand: CORREA
SKU: 8439

CORREA

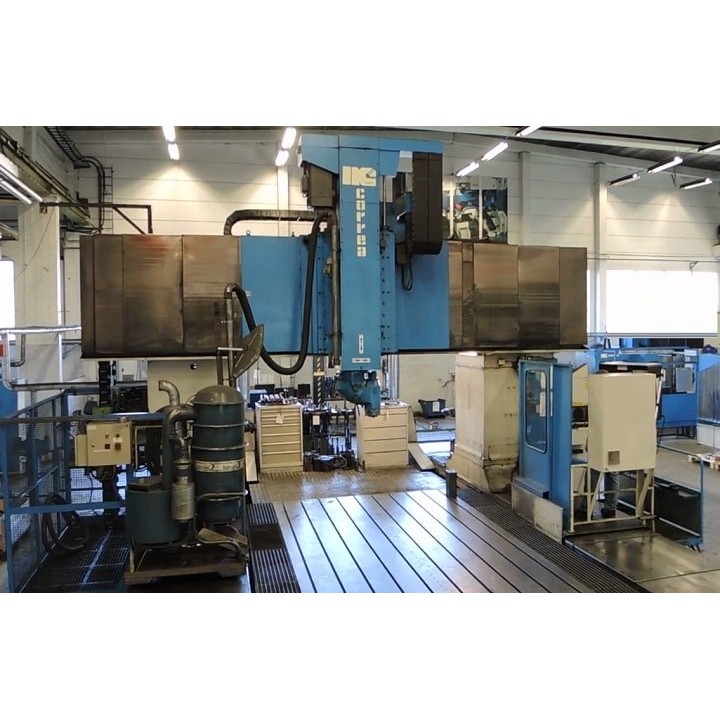

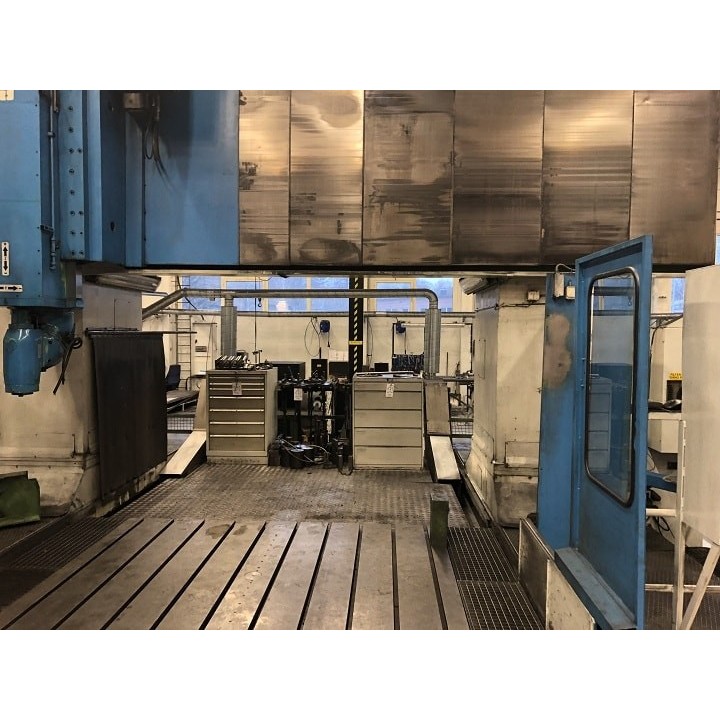

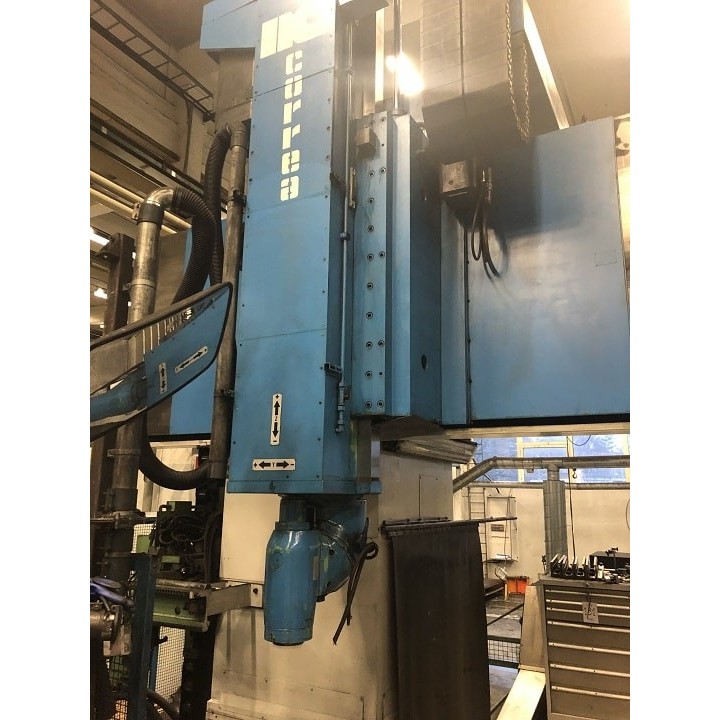

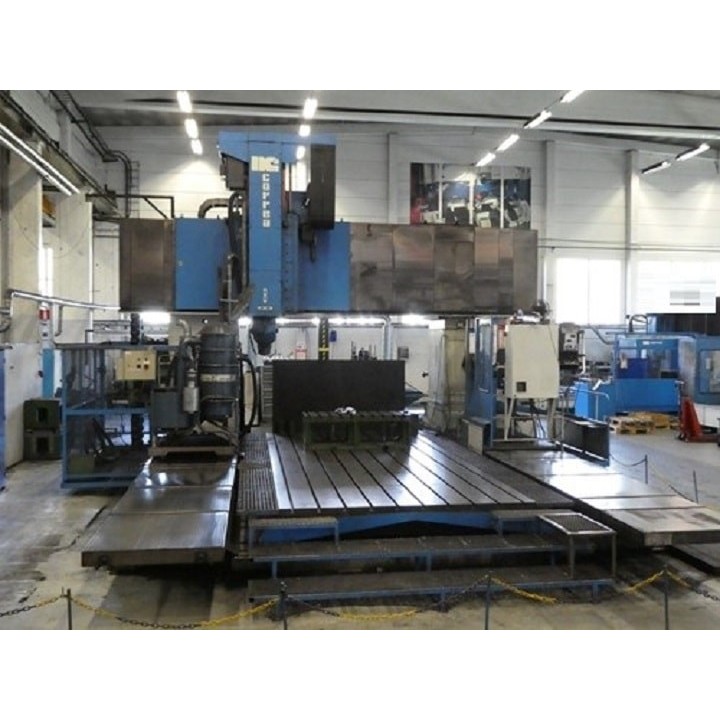

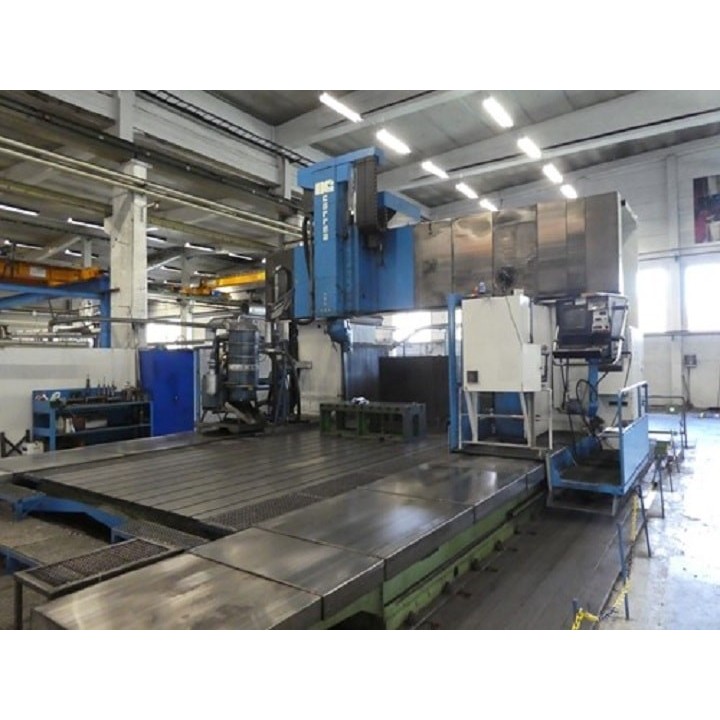

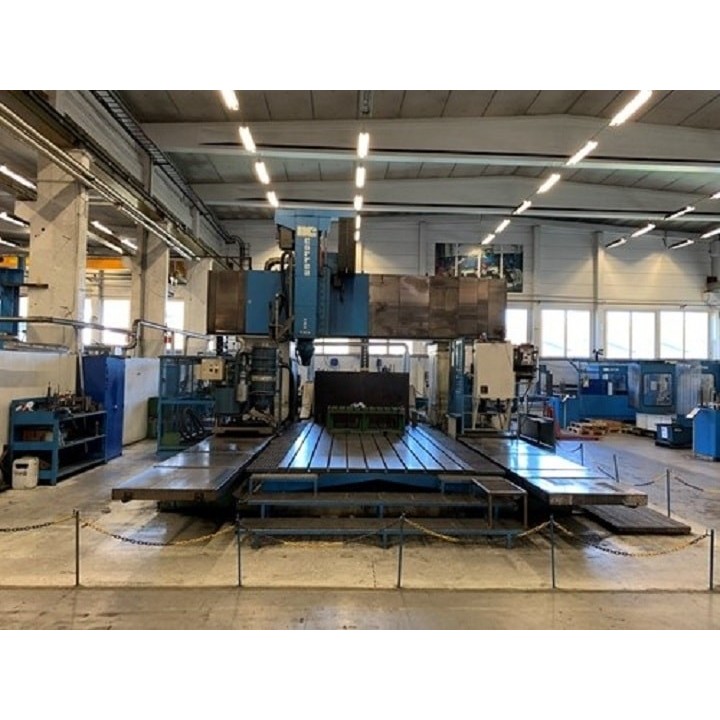

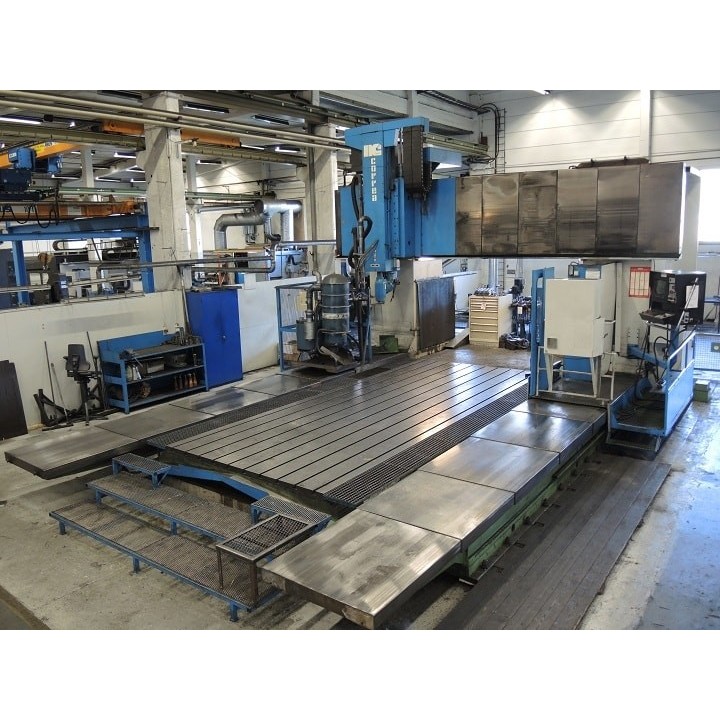

Gantry milling machine CORREA FPM60
Year of manufacture: 1995
Year of reconstruction: 2019

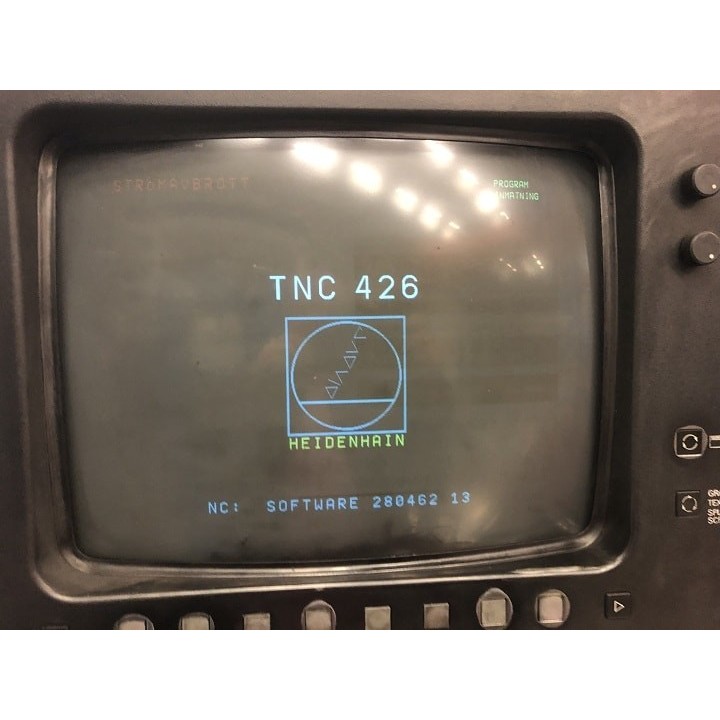

Numerical control: Heidenhain TNC-426

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

Table dimensions: 6,000 x 2,500 mm
Number of slots in T: 10
T-slot dimensions: 22 mm
Longitudinal travel X: 6,000 mm
Transversal travel Y: 3,800 mm
Light between columns: 3,370
Vertical travel Z: 1,000 mm

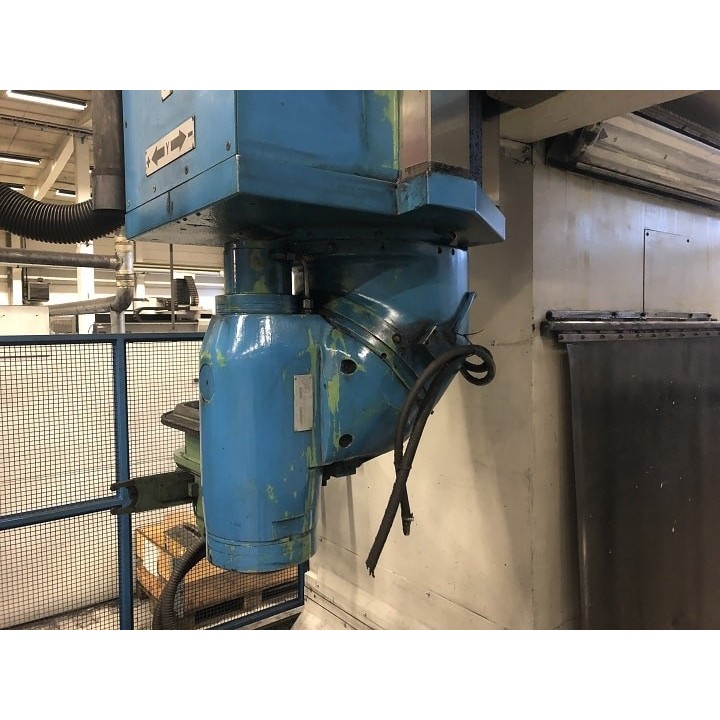

Head: Universal automatic UDG40 (every 3rd)
Mooring tool: Hydraulic
Cone: ISO 50
Range of speeds: 20 - 2,000 r.p.m.
Mandrel power: 30 KW
Advances of work: 2 - 5.000 mm-min
Fast Advances X-Y, Z: 7.200 mm-min
Maximum weight on table: 15,000 kg- m2
Approximate weight of the machine: 75,000 kg
Machine dimensions: 15,300 x 6,550 x 6,180 mm
Fairing
Automatic changing table tools: ATC-60
Taladrina: External
2 longitudinal evacuators
Electronic steering wheel: HR-410
Warranty: Mechanical part 6 months
Sale price (Ex Work): Consult
