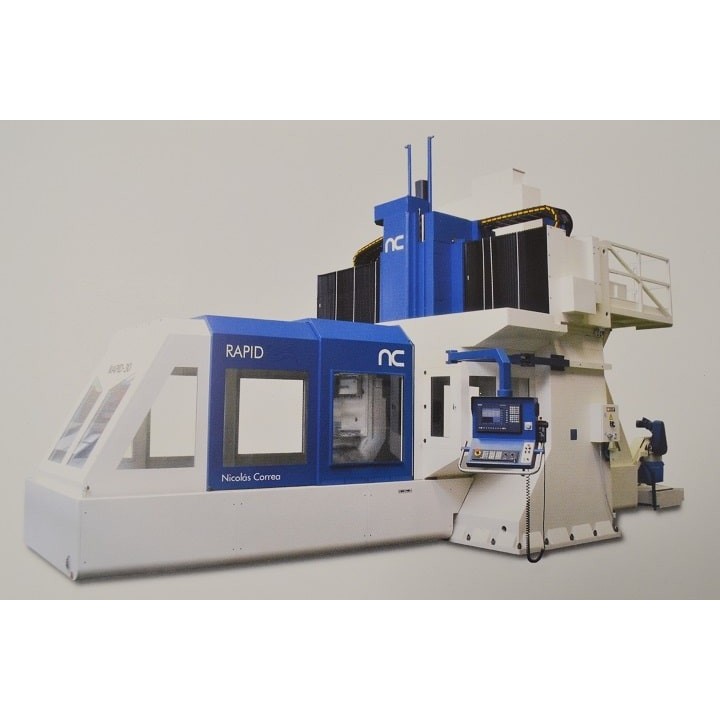

RAPID50

Table dimensions: 5,000 x 2,000 mm
T-slot number: 11
T-slot dimensions: 22 mm
Longitudinal travel X: 5,000 mm
Transversal travel Y: 3,100 mm
Vertical travel Z: 1,200 mm
Distance between columns: 2,800 mm

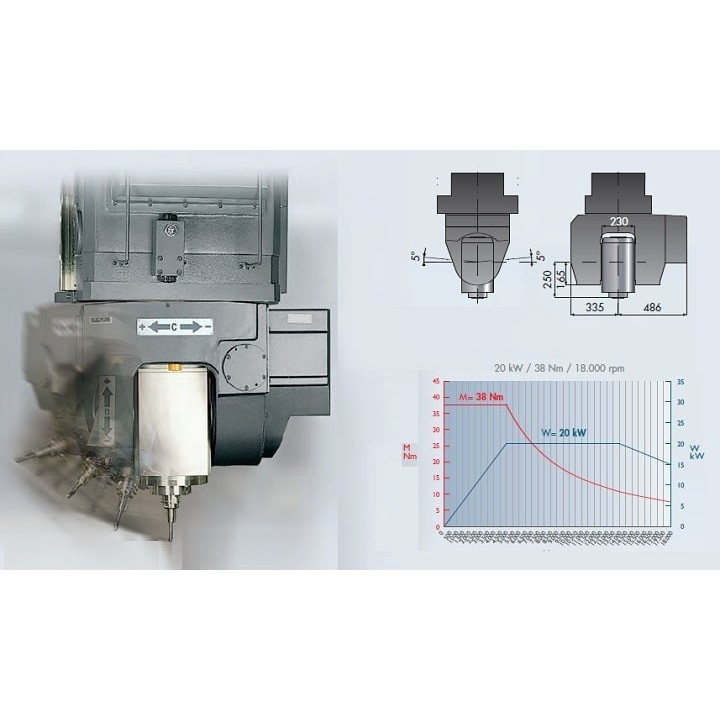

Head: 4-5 CCE continuous shaft
Mooring tool: Hydraulic
Cone: HSK 63
Speed ​​range: 18,000 r.p.m.
Mandrel Power: 20 kW
Fast forward X-Y, Z: 20,000 - 30,000 mm-min
Maximum weight on table: 15,000 kg
Approximate machine weight: 65,000 kg

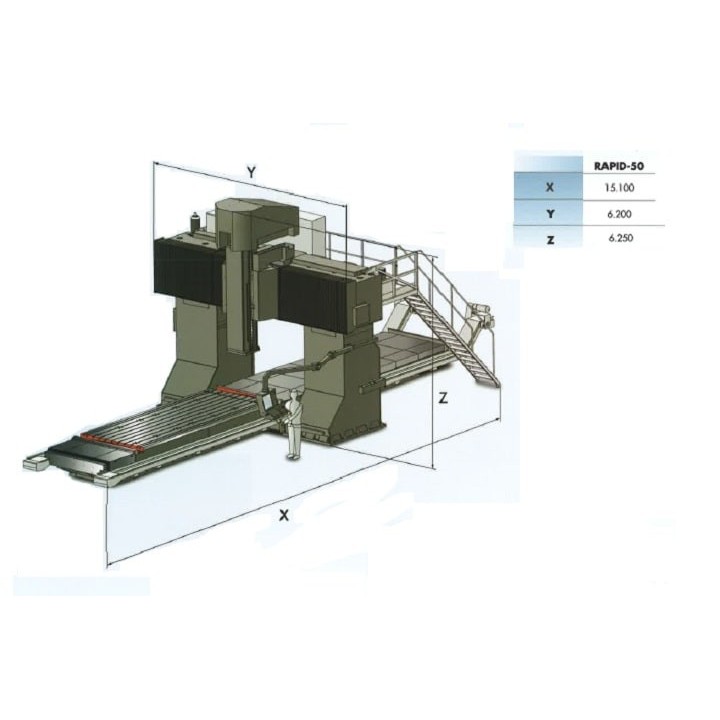

Machine dimensions: 15,100 x 6,200 x 6,250 mm
Integral fairing
Automatic tool changer: ATC24
Chip Evacuators
Electronic steering wheel: HR-410
Sale price (Ex Work): Consult
Immediate delivery!
