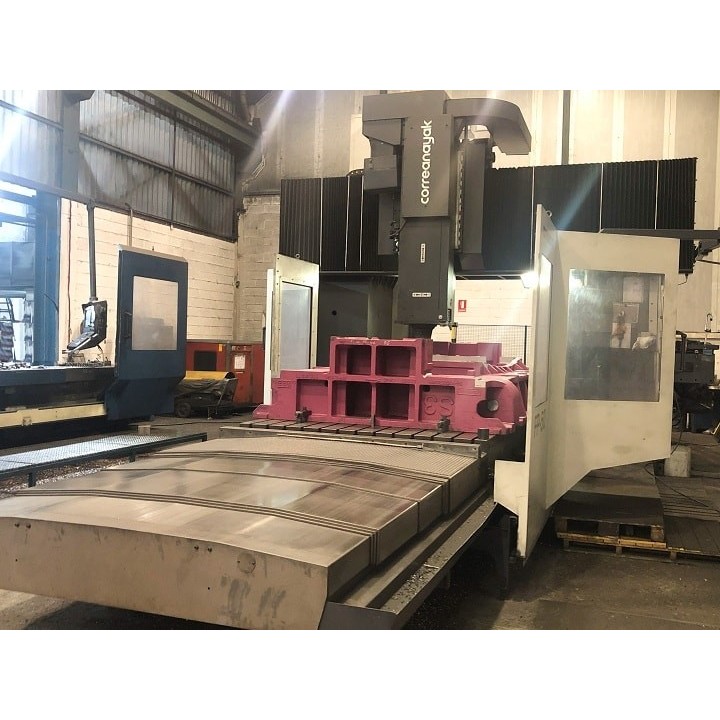

FP50/50 (892235)

Table dimensions: 5,000 x 2,000 mm
T-slot number: 13
T-slot dimensions: 22 mm
Longitudinal travel X: 5,000 mm
Transversal travel Y: 3,250 mm
Vertical travel Z: 1,000 mm
Distance between columns: 2,720 mm

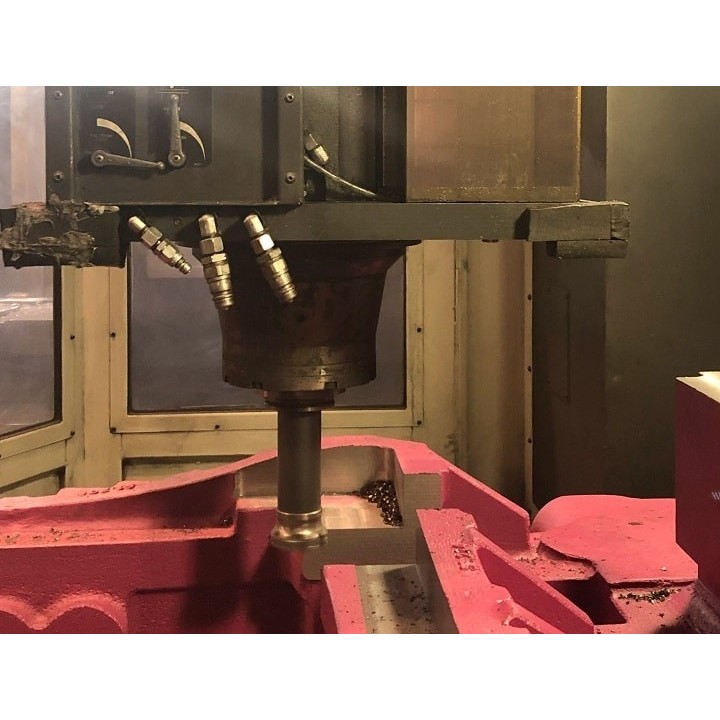

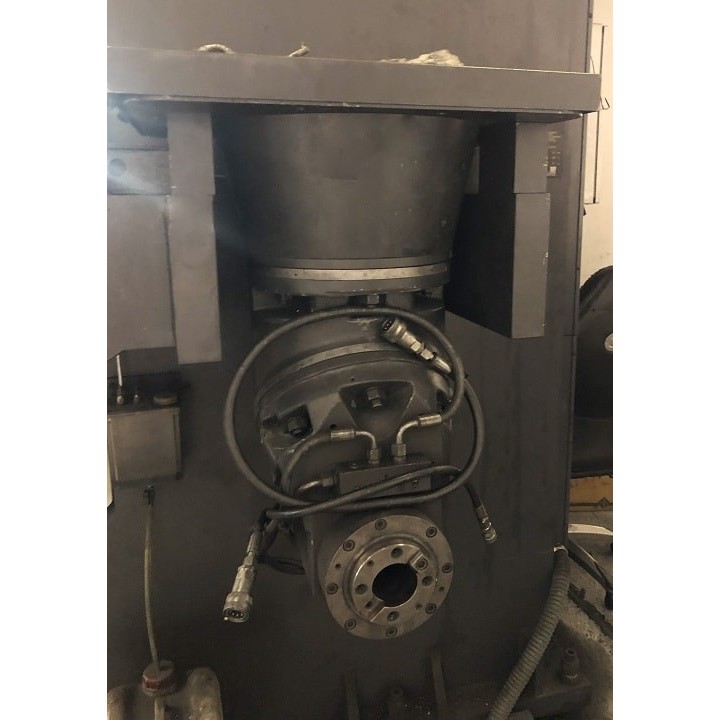

Head: 1- Universal manual (UM40)
   2- Direct output
Mooring tool: Hydraulic
Cone: ISO 50 - DIN69871
Speed ​​range: 3,000 r.p.m.
Mandrel Power: 37 KW - 582 Nm
Work advances: 2 - 5,000 mm-min
Fast forward X-Y, Z: 7,200 - 12,000 mm-min
Maximum weight on table: 25,000 kg
Approximate machine weight: 56,000 kg
Machine dimensions: 12,700 x 5,070 x 4,900 mm
Fairing

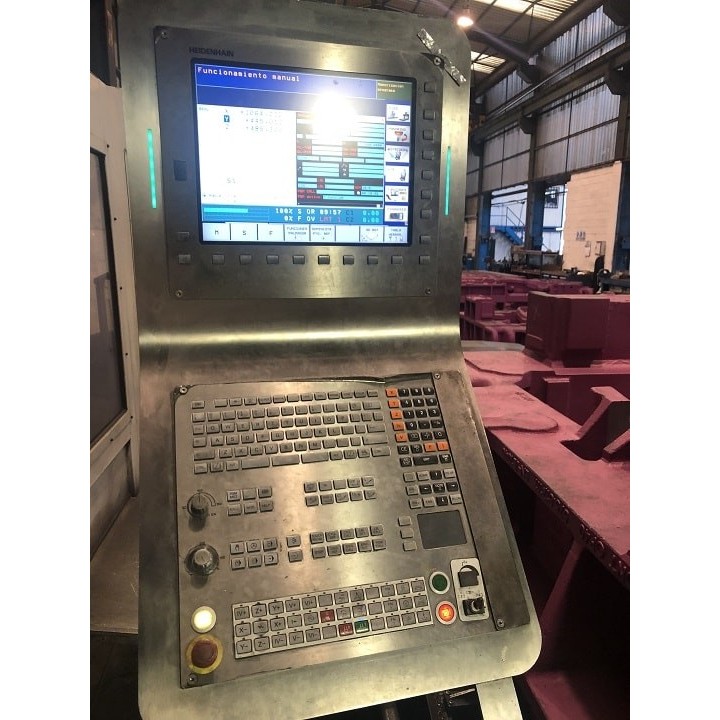

Electronic steering wheel: HR-410
Chip evacuator: Longitudinal using pallets
Column head support. Manual shift
Sale price (Ex Work): Consult
Immediate delivery!
