FP40/50

Name: FP40/50
Brand: CORREA
SKU: 6903

CORREA

CORREA FP40-50 reconstructed bridge milling machine, whose structure offers an excellent combination of rigidity and dynamic performance. Thanks to its continuous 5-axis head allows a very versatile and high quality machining. Ideal for sectors such as the automobile or aeronautics.
CORREA 5-axis bridge milling machine, rebuilt and with guarantees.

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

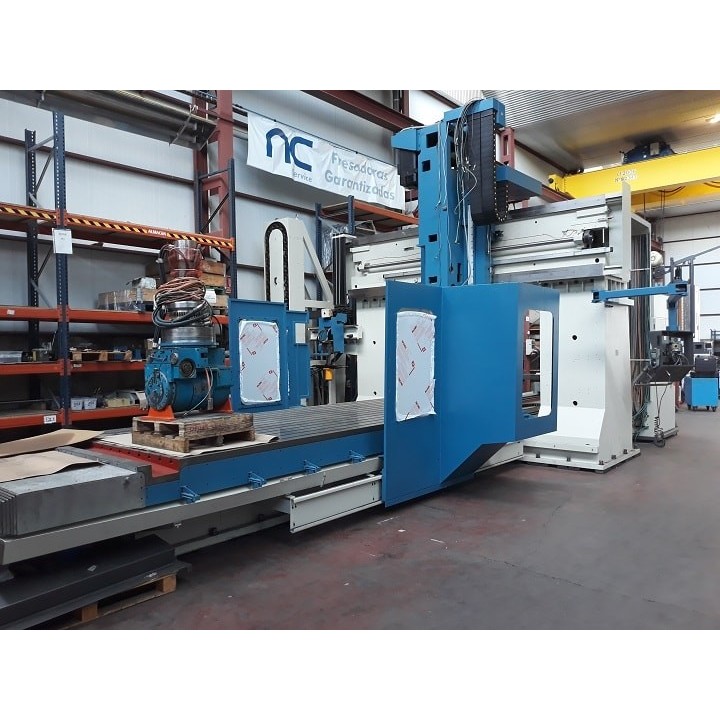

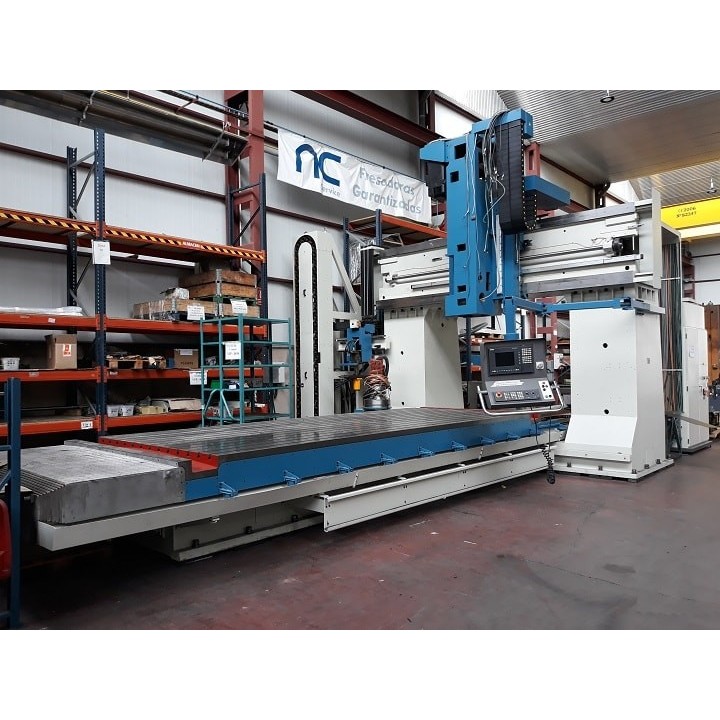

CORREA FP40-50 bridge milling machine
Year of manufacture: 1998
Year of reconstruction: 2018
Numerical control: SIEMENS 840D - Opt. New HEIDENHAIN TNC-530

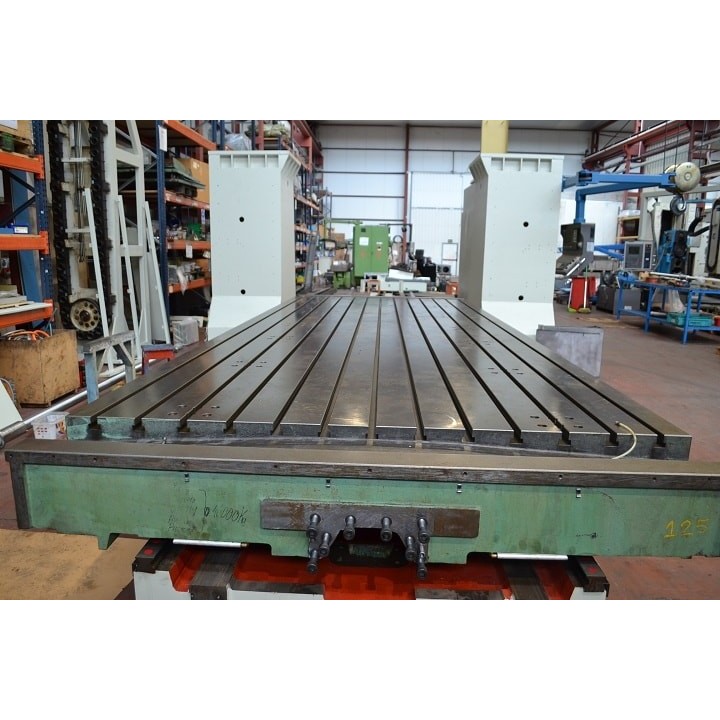

Table dimensions: 5,000 x 2,000 mm
T-slot number: 13
T-slot dimensions: 22 mm
X-Y-Z paths (mm): 5,000 - 3,250 - 1,000
Distance between columns: 2500 mm

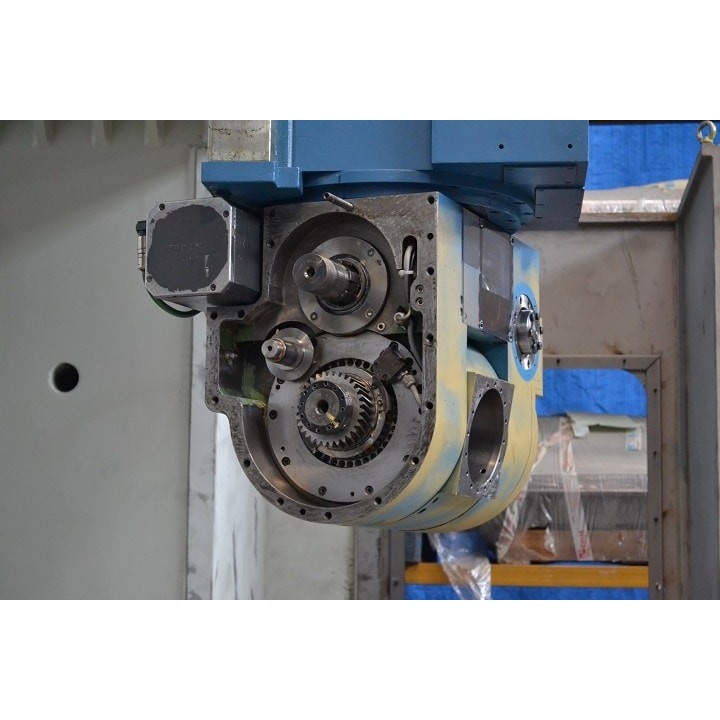

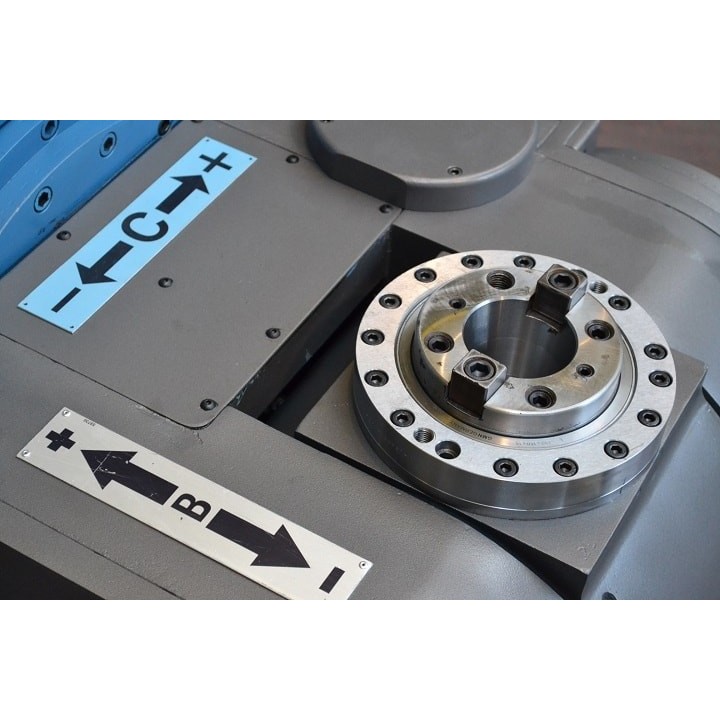

Head: C5E- 5 axis continuous head
Mooring tool: Hydraulic
Cone: BT 50
Speed range: 40 - 4,000 rpm
Mandrel Power: 37 KW - 372 Nm
Work advances: 2 - 5,000 mm-min
Fast forward X-Y, Z: 7,200 - 12,000 mm-min
Maximum weight on table: 25,000 kg
Approximate machine weight: 40,500 kg
Machine dimensions: 12,700 x 7,070 x 4,900 mm
Fairing
Automatic tool changer: ATC-60
Electronic steering wheel: HR-510
Guaranteed
