BA40

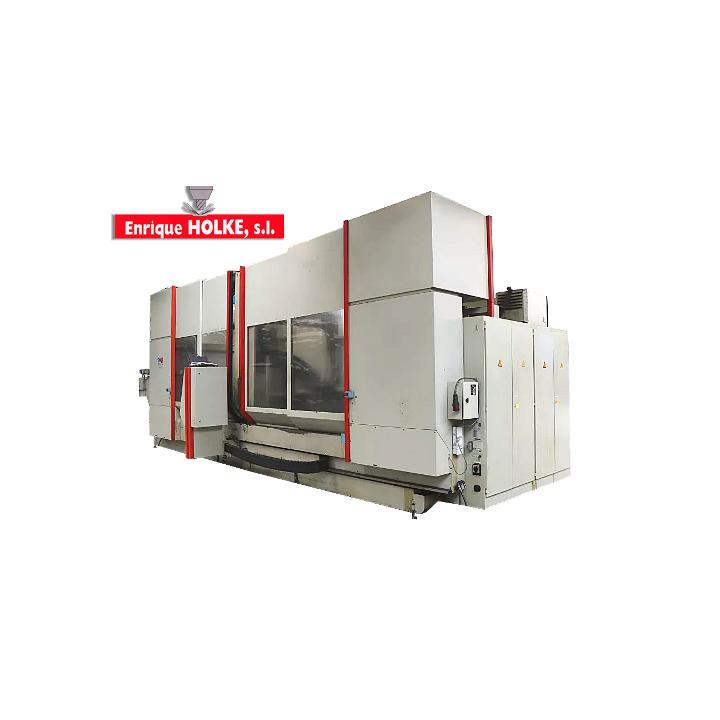

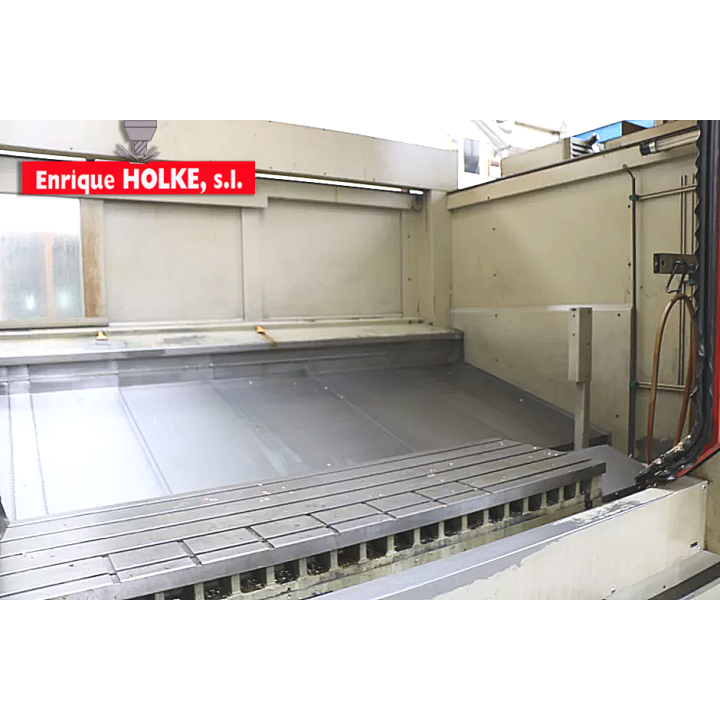

Secondhand vertical machining center SW BA40 revised.
Machine for work in tandem.
CE standards.
FAGOR 8065 control (new).
System of measurements by linear encoders (rules).
Internal cooling with filtration system.
Structure of great rigidity.
Automatic doors fairing.
Chip extractor.
CHARACTERISTICS
Maximum travel axis Z mm 630
Maximum travel axis and 630 mm
Maximum travel axis X mm 4750
Maximum X axis drive for tandem work 2000 mm per table
Power capacity Kw 100% ED 24 - 40% ED 31
Double winding head motor, cooled by liquid.
S1 S6 - 40% 1-min IMV15
22Kw 55A 31Kw 71A 500 KT 40 ° IP54
22Kw 42A 7000
Encoder type: RON 350 2048 Pulses
Speed ​​range rpm 20 - 5000
Fast forward (X, Y, Z) m 25-min
Number of tools 40
Spindle cone DIN 69871 ISO 50
Type of tool stay DIN 69872 - 28
Dimensions of the machine mm 10,600 x 3,700 x 3,600
Approximate weight Kg 26,000
