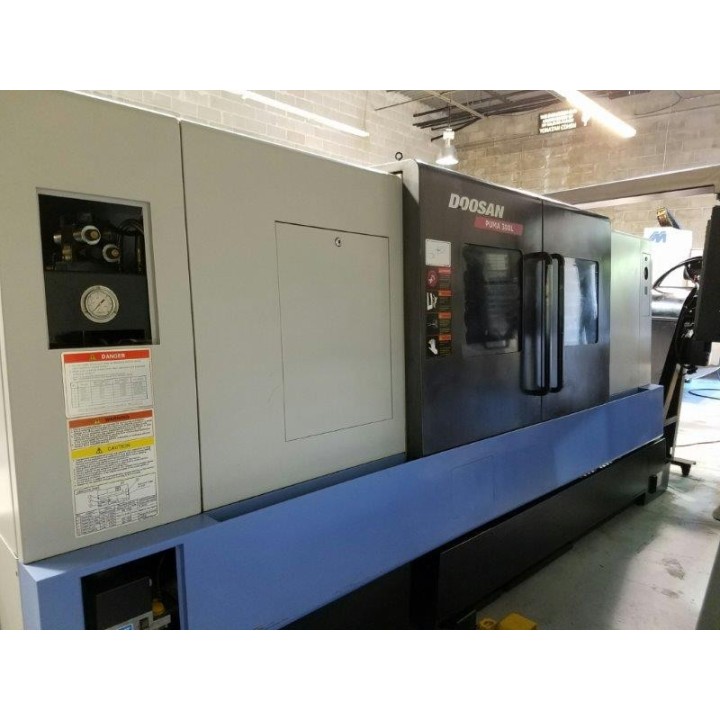

PUMA-300LC

SWING OVER BED ....................... 23.2"
SWING OVER CARRIAGE .................. 17.7"
DISTANCE BETWEEN CENTERS ............. 52.8"
MAX. TURNING DIAMETER ................ 15.7"
MAX. TURNING LENGTH .................. 50.4"
SPINDLE SPEED ........................ 28 - 2,800 RPM
SPINDLE NOSE ......................... A2-11
DRAW TUBE I.D. ....................... 4.05"
SPINDLE BORE DIAMETER ................ 4.53"
SPINDLE MOTOR ( 2-SPEED GEARBOX ) .... 35 HP
X-AXIS TRAVEL ........................ 11"
Z-AXIS TRAVEL ....................... 52.4"
X/Z AXIS RAPID TRAVERSE RATE ......... 630 IPM / 945 IPM

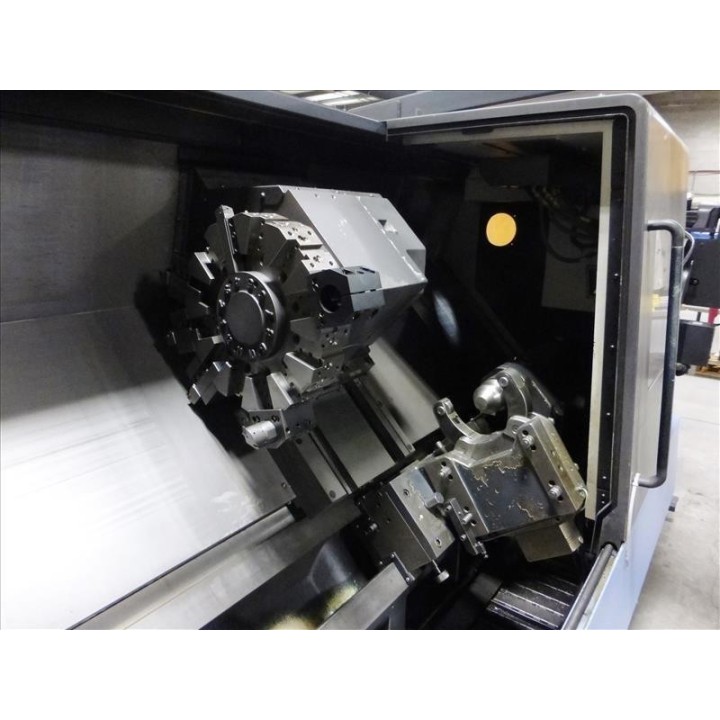

NO. OF POSITIONS IN TURRET ........... 12 STATIONS
TAILSTOCK QUILL DIAMTER .............. 3.9"
TAILSTOCK QUILL STROKE ............... 3.9"
TAILSTOCK SPINDLE TAPER .............. MT#4
FLOOR SPACE .................... 164" X 76"
WEIGHT ............................... 14,730 LBS

EQUIPPED WITH:

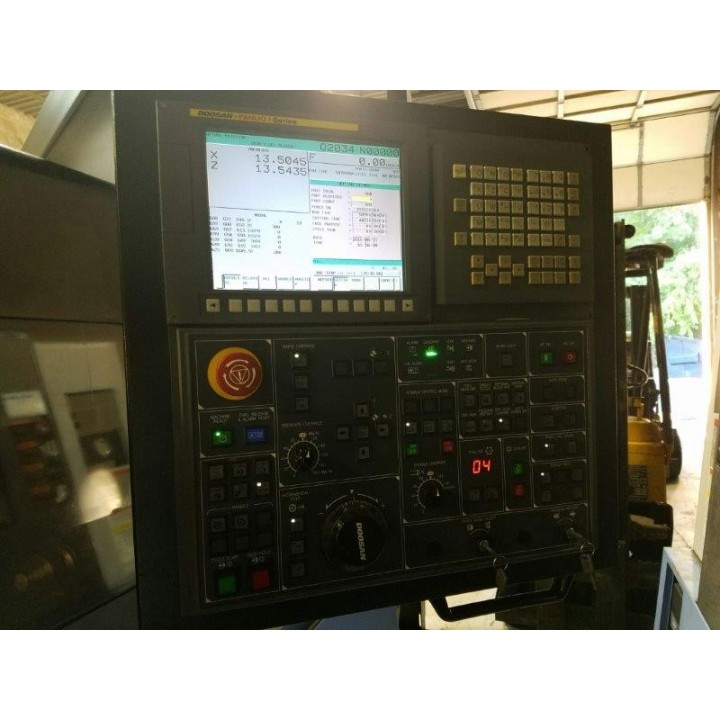

* DOOSAN FANUC I SERIES CNC CONTROL

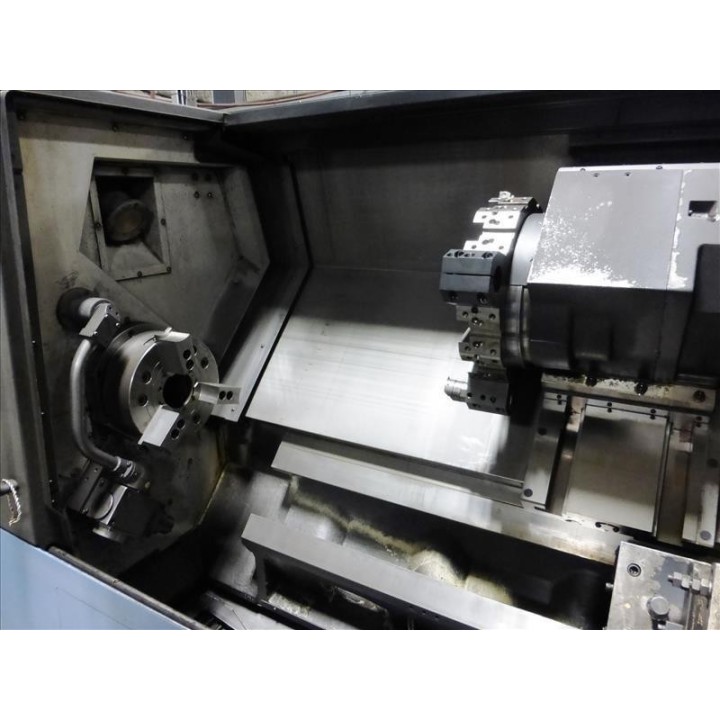

* 12" SAMCHULLY HYDRAULIC CHUCK

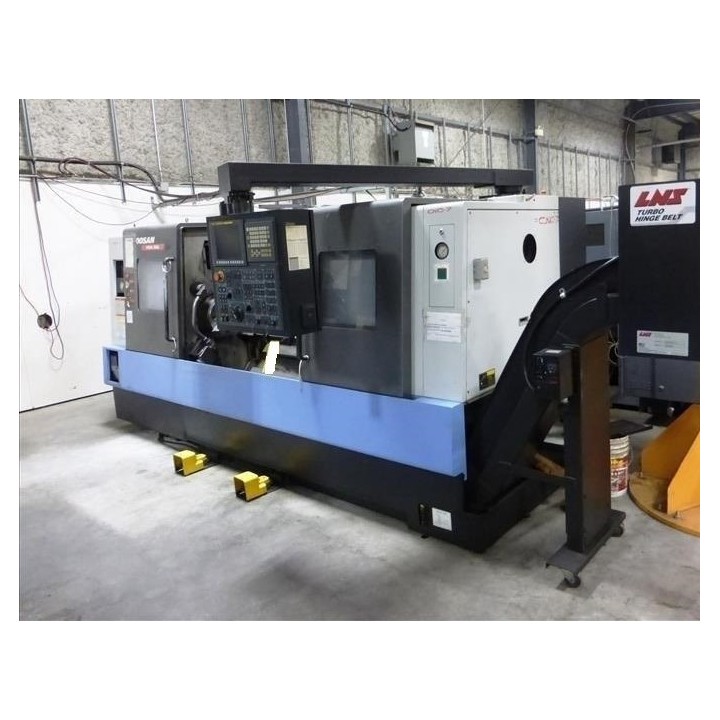

* LNS TURBO CHIP CONVEYOR
* SCHUNK HYDRAULIC STEADY REST
