VF-9/50

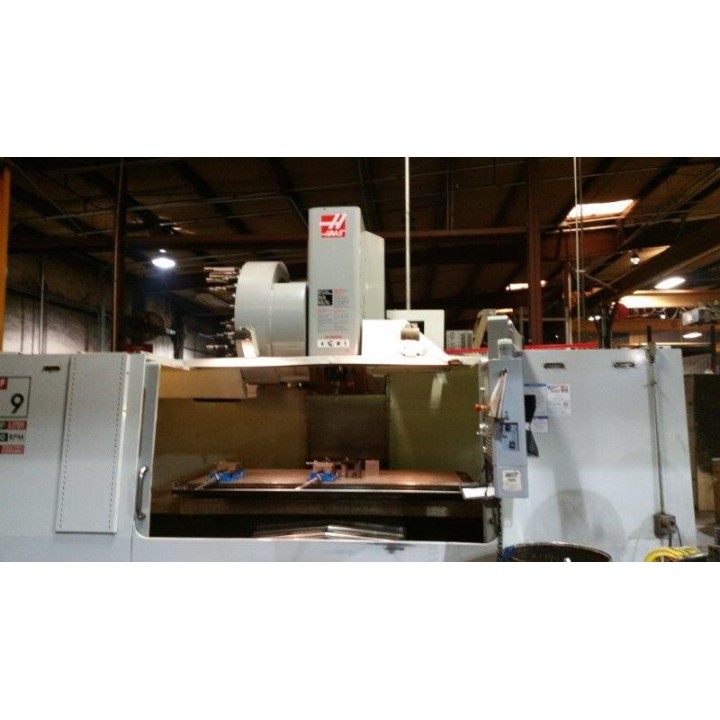

HAAS VF-9/50 VERTICAL MACHINING CENTER
S/N: 1065893 - NEW: 2008

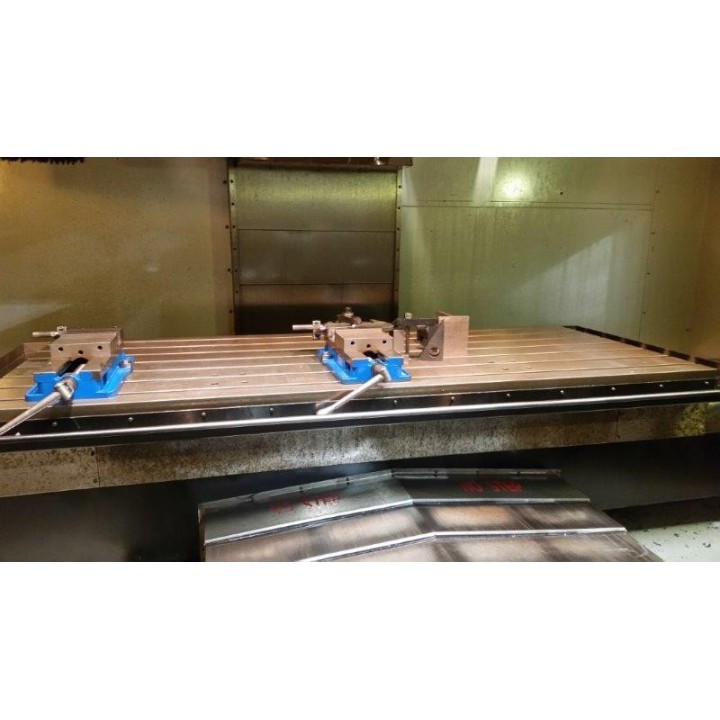

TABLE SIZE .................... 36" X 84"
MAX WEIGHT ON TABLE ........... 4000 LBS
X-AXIS TRAVEL ................. 84"
Y-AXIS TRAVEL ................. 40"
Z-AXIS TRVAEL ................. 30"
SPINDLE NOSE TO TABLE MIN/MAX ...... 5/35"
RAPID TRAVERSE X/Y/Z .......... 600 IPM
MAX CUTTING ................... 500 IPM
SPINDLE SPEEDS ( 2-SPEEDS GEARED ) ....... 7500 RPM
MAX TORQUE .................... 340 FT-LB @ 700 RPM
MAIN MOTOR .................... 30 HP
SPINDLE TAPER ................. CAT 50

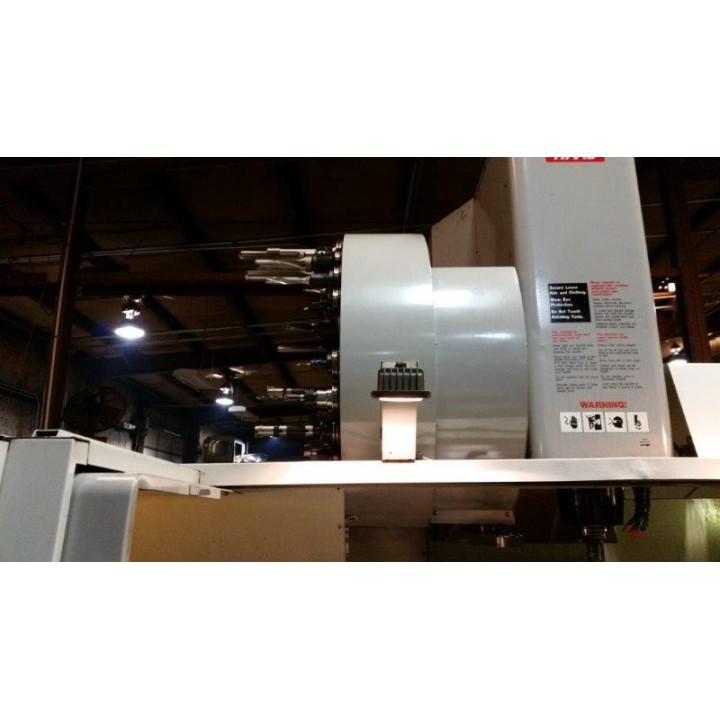

TOOL CHANGER SIDE MOUNT .......... 30 ATC
MAX TOOL WEIGHT .................. 30 LB
MACHINE DIMENSIONS ............... 183" X 140" X 191"
MACHINE WEIGHT ................... 25,000 LBS

EQUIPPED WITH:
* HAAS CNC CONTROL EXPANDED MEMORY 16MB
KEYSWITCH MEMORY LOCK FOR FRONT PENDAND
MACRO SOFTWARE FOR MILL
* 2-SPEED GEARED * HIGH INTESITY LIGHTING
* COOLANT THROUGH SPINDLE * PROGRAMMABLE COOLANT
AUXILARY FILTER FOR TSCHP55 GALLON CLNT
* CHIP AUGER * MANUALS
* EXCELLENT CONDITION
