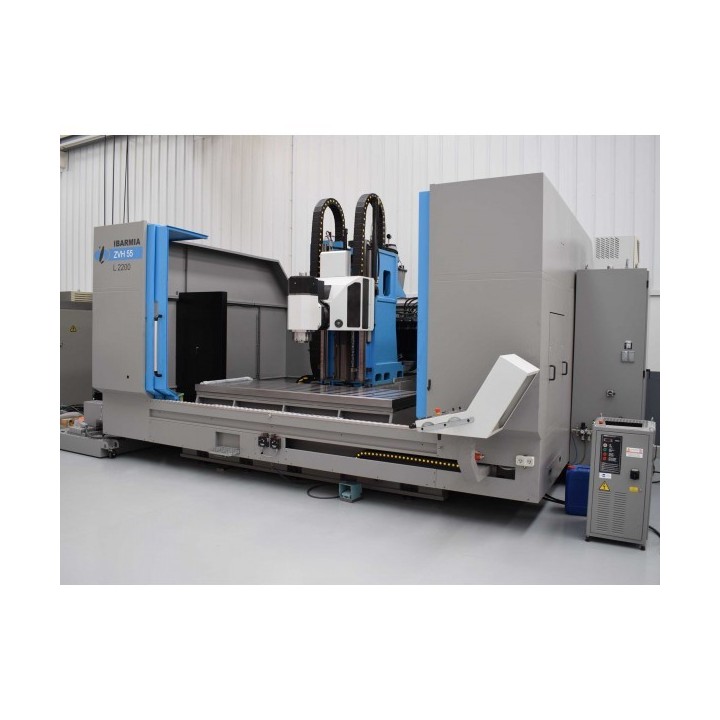

Ibarmia ZVH 55 L2200

Centro Ibarmia used in Maquinaria Colás. Year 2003. Excellent condition. More information and budget request at http: - www.maquinariacolas.com-machinery-center-machining-of-occasion-ibarmia-zvh55-l2200-

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

Year 2003
CNC Heidenhain TNC 530
Surface of the table 2.600 x 850 mm.
Longitudinal Course (X-axis) 2,200 mm
Transverse Course (Y-Axis) 800 mm
Vertical Course (Z Axis) 860 mm
Automatic Spindle CNC ± 105 °
Max. Feed rate Of the Axes (X, Y, Z) 30 m-min
Revolutions 8,000 mm-min
HSK Headset A-100
Main Motor Power 25 KW
Charger Tools RANDOM INCLUDED-INCLUDED
Nº Tools Charger 40 Herr.- 40 Tools
Axle Measurement System Heidenhain Optical Rule
Heidenhain HR-410 Handwheel INCLUDED
Shaving Evacuator INCLUDED
Admissible weight on table 2,000 kg.
Machine Weight 16 Tn.
Total Machine Power 55 Kw.
Machine Color RAL 5012 - RAL 7037
