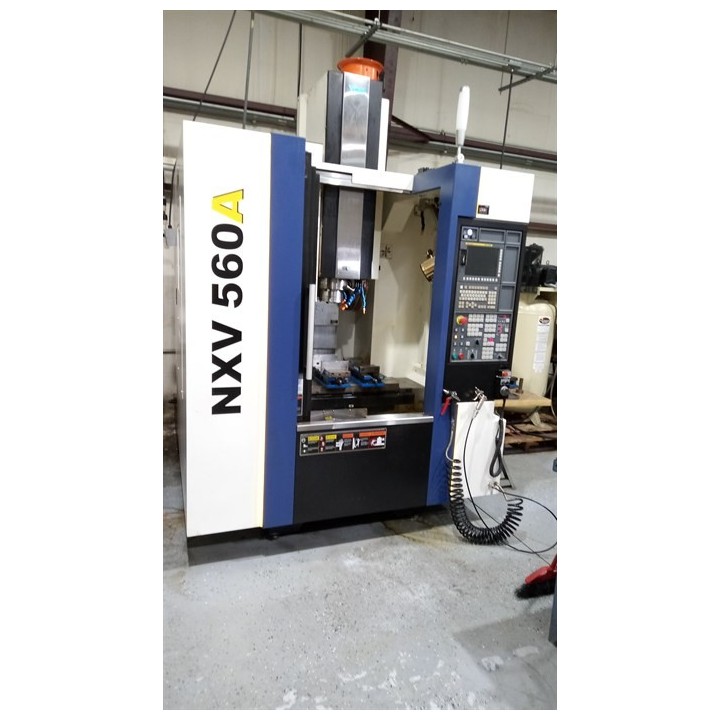

NXV 560A

Number Of Tables / Pallets 1, Table Size 27.6" X 16.5", Weight On Table 1100 LBS., Spindle Nose To Table 4.3" ~ 22", X - Axis Travel 22.0", Y - Axis Travel 16.1", Z - Axis Travel 17.7", Rapid Traverse X, Y, Z 1890, 1890, 1890 IPM, Spindle Speed 12,000 RPM, Spindle Taper 40 BIG PLUS, Main Motor 25 HP, Automatic Tool Changer 20 ATC, Tool Diameter 4.92", Tool Length 11.9",Tool Weight 17.6 LBS., Machine Weight 6614 LBS.,RIGID TAPPING FANUC MXP 200 FA CNC COLOR CONTROL, FILTRATION SYSTEM MH 250 BIG PLUS SPINDLE,SPINDLE CHILLER HAND HELD REMOTE MPG, MEMORY CARD PROGRAM EDIT & OPERATION CUSTOM MACRO B AND TOOL PATH GRAPHICS,MANUAL GUIDE I CONVERSATIONAL PROGRAMMING HELICAL INTERPOLATION
