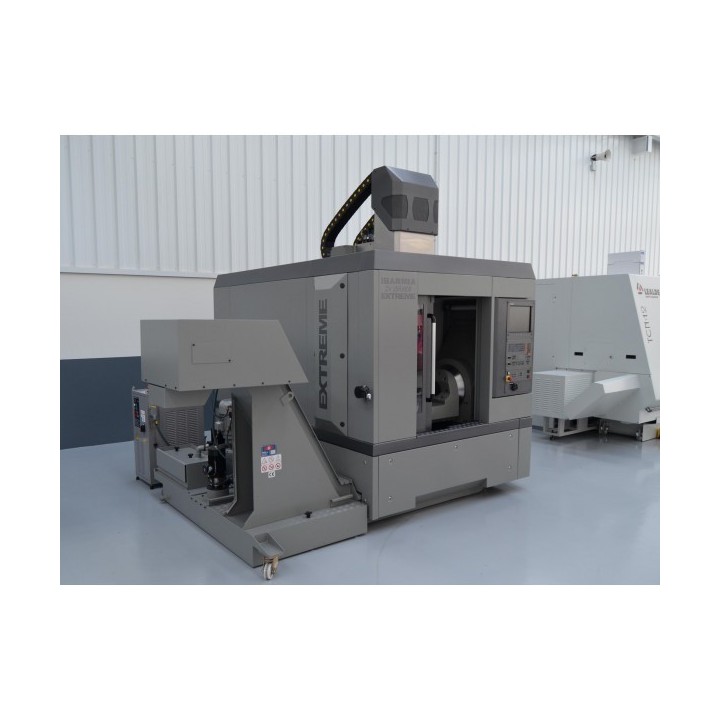

Ibarmia 5 Ejes ZV 25 U600

Dimensions of the work table Ø 400 mm.
Longitudinal Course (X-axis) 600 mm.
Transverse Course (Y-Axis) 428 mm
Vertical Course (Z axis) 410 mm.
Course Axis A + 120º- 120º - min.0,001º
Course Axis C 360º-min. 0.001
Fast forward Axis 60,000 mm-min
Spindle cone type ISO-40
Range of Revolutions 15,000 rpm
Main Motor Power 35 -125 Kw.
No. of Herr. Of the Tool Scraper 24 Herr.
Maximum tool length 300 mm.
Cooling Through Tool 24 BAR INCLUDED
Optical Rules INCLUDED
Chip conveyor INCLUDED
Net Weight 7,500 Kg.
HEIDENHAIN iTNC-530 Numerical Control
Occupation Space 12m2
Year of Construction 2002
Machine Condition VERY GOOD
