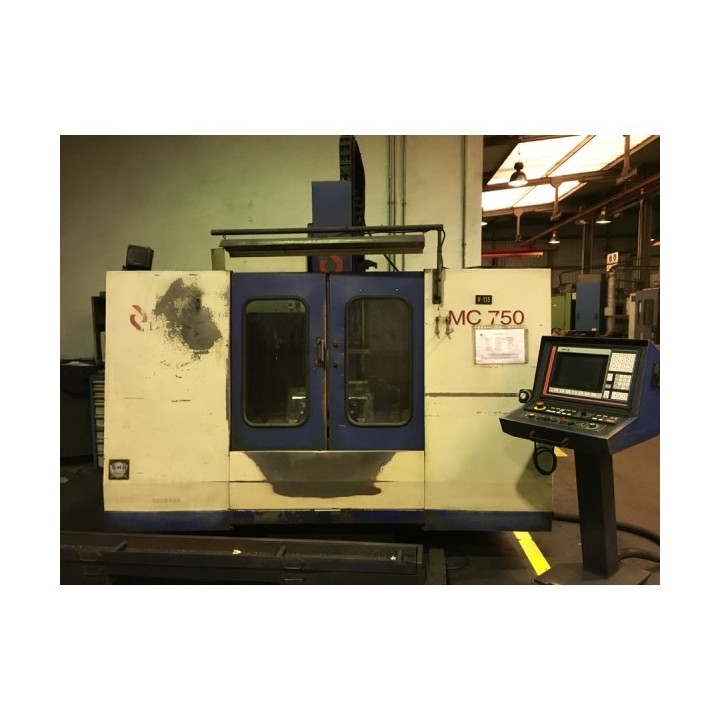

CNC Vertical Machining Center LAGUN mod. MC-750

Manufacturer: Lagun
Model: MC-750
YOM: 1997
Country
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

X travel 750 mm
Y travel 410 mm
Z travel 510 mm

Occasional seller

M
Metalequip Private seller
Member since 2017
40 ads online

SEND REQUEST

CNC Vertical Machining Center LAGUN mod. MC-750

Axes (X-Y-Z): 750x410x510 mm
Table height from floor: 750 mm
Table dimensions: 900x400 mm
Minimum-maximum spindle-to-table distance: 150-600 mm
Distance between table center and column: 195-605 mm
Distance from center axis to column: 400 mm
Maximum table weight: 450 kg
Spindle taper: MAS-403-BT 40
Spindle speed: 60 - 6000 rpm
Positioning accuracy: + - 0.005 mm
Repeatability: + - 0.005 mm

  • Seller's country: Poland
  • State: Used - Functional
  • X Travel: 500 - 1,000 mm
  • Y travel: 300 - 600 mm
  • Z travel: 500 - 800 mm
  • Spindle speed: 3,000 - 8,000 rpm
  • Condition: Array
  • Weight: 0.000000
