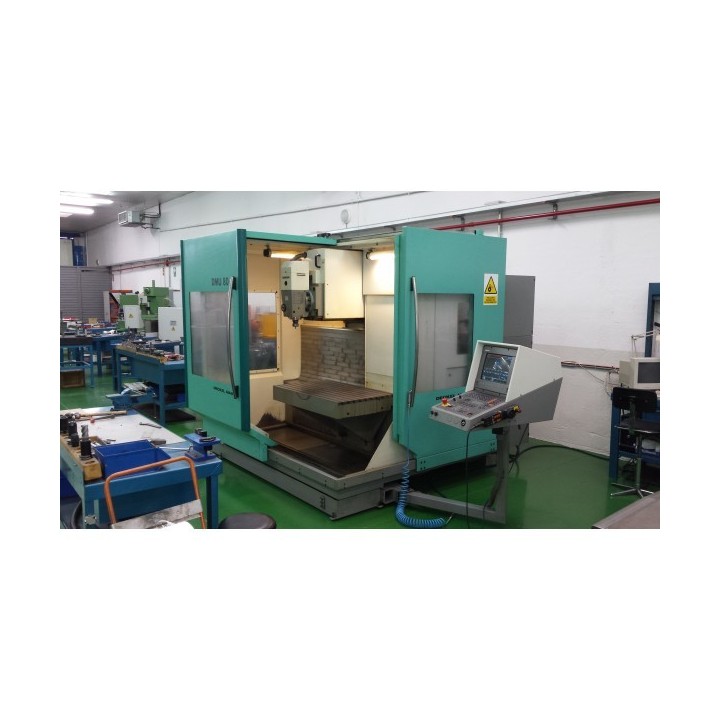

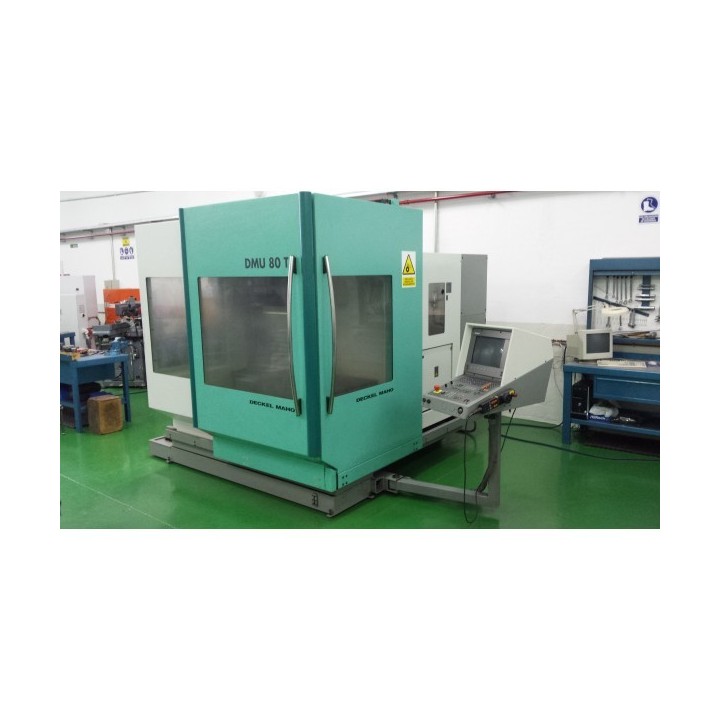

Deckel MaHo DMU 80T CNC milling machine

€43,500.00
Tax excluded
FOR SALE Deckel MaHo DMU 80T Milling Machine WITH 25-POSITION TOOL CHANGER, ALONG WITH WORKBENCH AND TOOL HOLDER.
Country
Share
Price €43,500.00
Condition Used - Working

Machine data

Condition Used - Working
Hours of use 3.000 h
Price type Fixed price

Technical specifications

Weight 6.000 kg
Length 3.200 mm
Width 3.200 mm
Height 2.500 mm
X travel 800 mm
Y travel 650 mm
Tool changer slots 25

Occasional seller

K
Kradimold SL Private seller
Member since 2017
5 ads online

SEND REQUEST

Fresadora cnc Deckel MaHo DMU 80T
Fresadora cnc Deckel MaHo DMU 80T
Fresadora cnc Deckel MaHo DMU 80T
Fresadora cnc Deckel MaHo DMU 80T
Fresadora cnc Deckel MaHo DMU 80T
Fresadora cnc Deckel MaHo DMU 80T
Fresadora cnc Deckel MaHo DMU 80T

Technical specifications:
• Name: DECKEL MAHO DMU 80 T
• Machine no.: 182349
• Manufacturer: DECKEL MAHO
• Model / Type: DMU 80 T
• Year of manufacture: 1998
• Travel X, Y, Z axes: 800 mm, 650 mm, 550 mm
• Control: HEIDENHAIN TNC 426

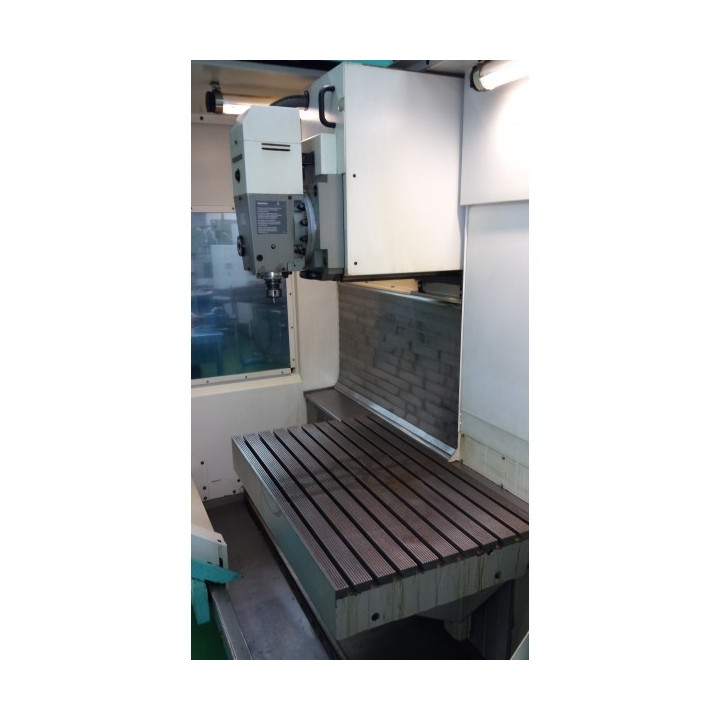

• Table surface area l x w:
1100 x 650 mm
• Taper: SK 40

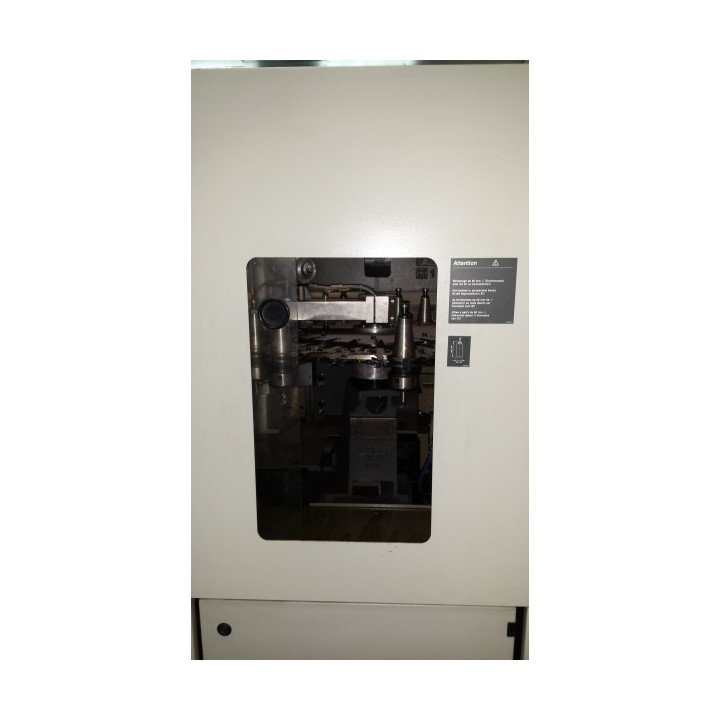

• Tool changer positions: 25
• Spindle speed range: 20 - 8000 rpm
• Approximate weight: 6000 kg
• Dimensions (l x w x h): 3200 x 3200 x 2500 mm

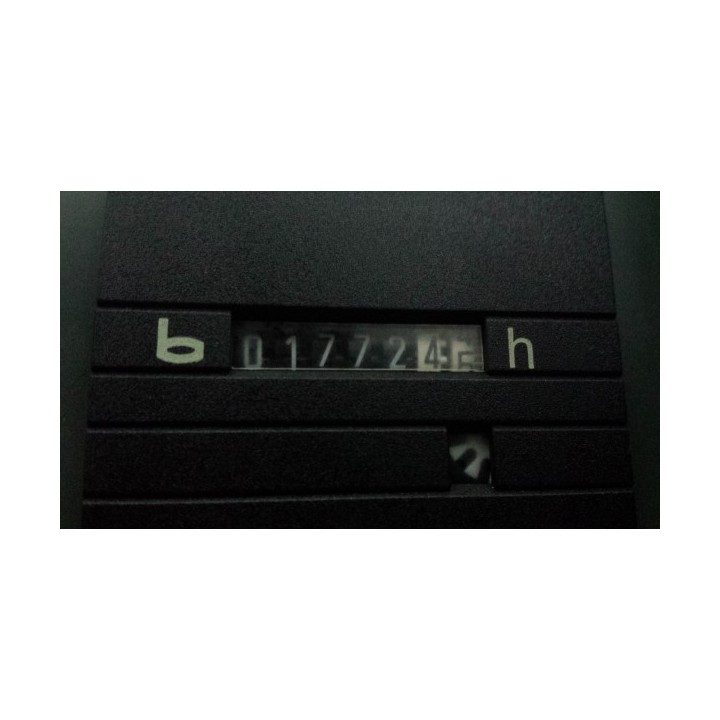

* WORKING HOURS: 1772 HOURS

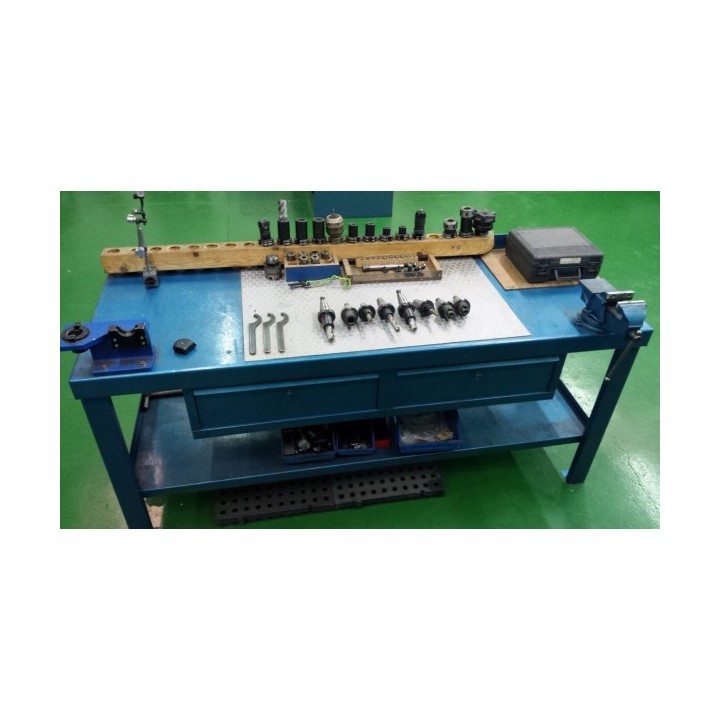

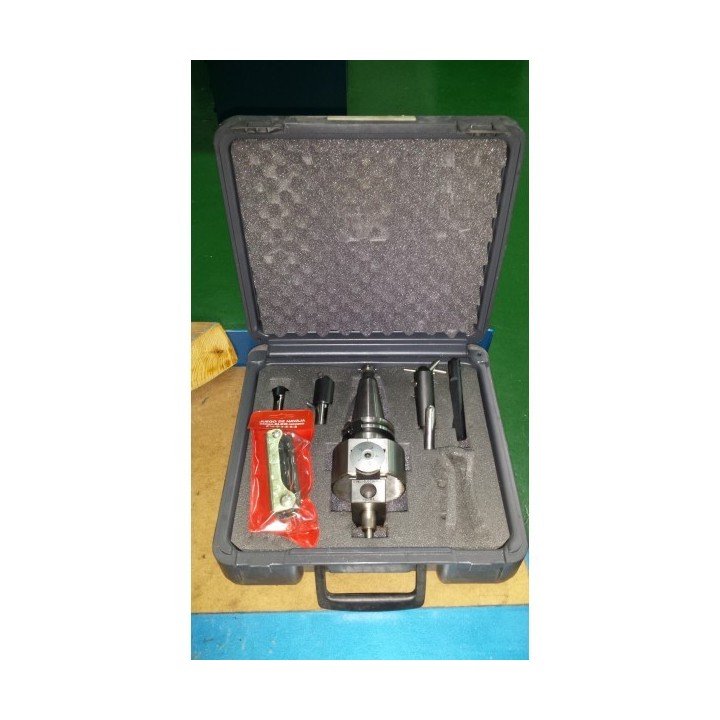

Includes a workbench with 31 tool holders (drill chucks, machining plates, collet chucks, and 20 various cutting tools) and a boring head. Also includes a magnetic base with a dial indicator, a ground base for holding cylindrical parts from ɸ2 mm to ɸ20 mm, and an extension collet chuck with collets from ɸ2 mm to ɸ10 mm.
The bench is supplied with the necessary tooling for changing tools in the collet chucks, as well as a cast iron vise.

  • Condition
    Used

  • Year
    1998
  • CNC
    HEINDENHAIN
  • Cone type:
    ISO-40
  • X travel (mm)
    800
  • Y travel (mm)
    650
  • Z travel (mm)
    550
  • Hours of use
    1000 -5000
  • Rotation speed (rpm)
    I'm sorry, but the text you provided for translation is simply "8000". This appears to be a number, which is the same in both Spanish and English. Could you please provide the full text you'd like translated?
  • Chip extractor
    NO
  • Table size (width) (mm)
    650
  • Table size (length) (mm)
    1100
  • Tool changer (num tools)
    I need the text you want me to translate. You only provided "25", which is a number and doesn't need translation. Please provide the full Spanish text you'd like translated to English.
  • Seller's country
    Spain
  • State
    Used - Functional
  • Hours of use (value)
    3000
  • Weight
    5,000 - 10,000 kg
  • Long
    3,000 - 5,000 mm
  • Width
    More than 3,000 mm
  • High
    2,500 - 3,500 mm
  • X Travel
    500 - 1,000 mm
  • Y travel
    600 - 1,000 mm
  • Z travel
    More than 800 mm
  • Spindle speed
    8,000 - 15,000 rpm
  • Tool changer
    20 - 30
