ANAYAK HVM-2300 MILLING MACHINE

ANAYAK HVM-2300 MILLING MACHINE
Country
Share
Ask for price On request
Condition Used - Working

Machine data

Condition Used - Working
Price type On request

Technical specifications

Length 7.300 mm
Width 6.300 mm
Height 3.500 mm
Spindle power 22 kW
Spindle taper ISO 50

Occasional seller

R
RETMA EUROPA, S.L. Private seller
Member since 2017
71 ads online

SEND REQUEST

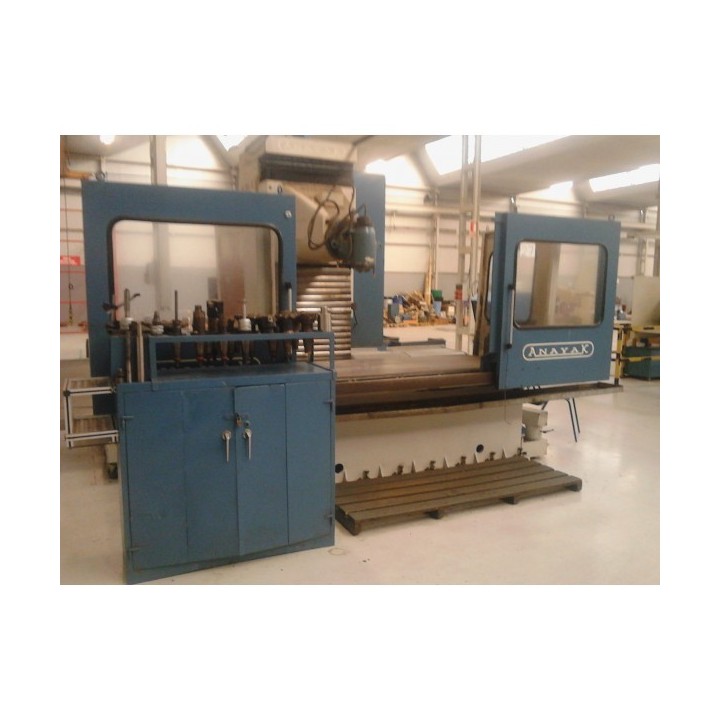

FRESADORA ANAYAK HVM-2300
FRESADORA ANAYAK HVM-2300

ANAYAK HVM-2300 MILLING MACHINE
Maximum travel X axis 2000 mm, Y axis 1200 mm, Z axis 1000 mm.
With universal head.
Hydraulic tool clamping.
Electronic handwheel.
ISO 50 taper.
Speed range 60-2000 rpm.
Power 18/22 kW.
CNC GE FANUC 0MC.
Table dimensions 2300 x 1000 mm.
Maximum table load 10000 kg.
Overall dimensions 7300 x 6300 x 3500 mm approx.
Weight 22000 kg approx.
Includes cabinet with tool holder and clamping plates.

  • Condition
    Used

  • Seller's country
    Spain
  • State
    Used - Functional
  • Weight
    More than 10,000 kg
  • Long
    More than 5,000 mm
  • Width
    More than 3,000 mm
  • High
    More than 3,500 mm
  • X Travel
    2,000 - 3,000 mm
  • Y travel
    More than 1,000 mm
  • Z travel
    More than 800 mm
  • Spindle speed
    Up to 3,000 rpm
  • Spindle power
    15 - 30 kW
  • CNC spindle cone
    ISO 50
