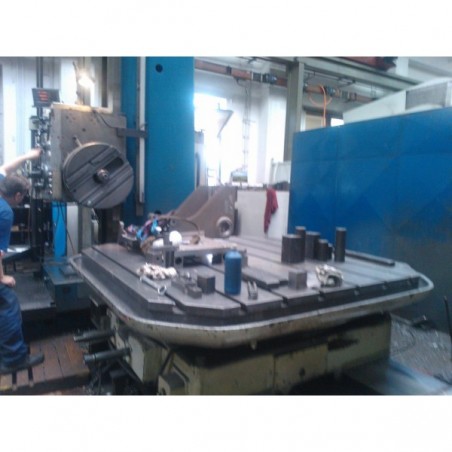

Floor-Type Boring Mills TOS 150 CNC

Tos 150 CNC Floor-Type Drilling Machines
Spindle diameter 150 mm
ISO 50
Spindle speed 2,600 RPM
ATC
Main motor power 65 kW
Latest generation CNC
X 12,000 mm
Y 3,550 mm
Z 1,000 mm
W 800 mm

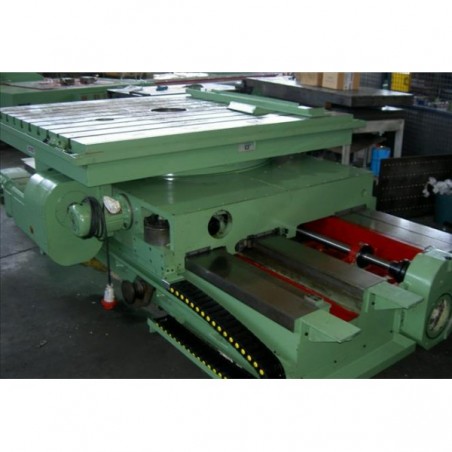

Available with the following rotary tables:
1) Rotary table 1,800 x 2,000 mm - 1,250 mm Travel - Capacity 18 T - B-axis (dual pinion - ball screw)
2) Rotary table 1,800 x 2,200 mm - 2,000 mm Travel - Capacity 18 T - B-axis (dual pinion - ball screw)
3) Rotary table 1,800 x 2,200 mm - 3,500 mm Travel - Capacity 18 T - B-axis (dual ball screw)
4) Rotary table 2,000 x 2,000 mm - 1,250 mm Travel - Capacity 25 T Manual - Conventional
5) Rotary table 2,000 x 2,000 mm - 3,000 mm Travel - Capacity 25 T Manual - Conventional
6) Rotary table 2,000 x 2,500 mm - 3,550 mm Travel - Capacity 40 T - B-axis (dual pinion - ball screw)
7) Rotary table 2,500 x 2,500 mm - 2,000 mm Travel - Capacity 45 T Manual - Conventional
8) Rotary table 2,800 x 3,000 mm - 2,000 mm Travel - Capacity 45 T Manual - Conventional
9) Rotary table 3,600 x 3,600 mm - 2,000 mm Travel - 60 T Manual - Conventional
10) Rotary table 3,500 x 4,500 mm - 2,500 mm Travel - Capacity 100 T Manual - Conventional
If necessary, the dual pinion and ball screw for the B-axis can be installed on any of these tables.
Floor plates (Piani Stolle) of various sizes available.
Price upon request with no obligation on your part.
