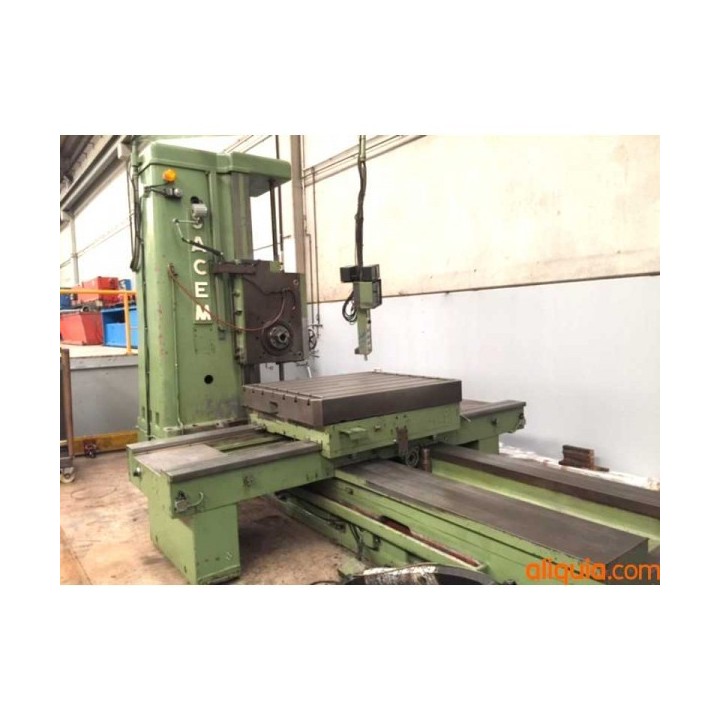

SACEM boring machine, FAGOR display

Features:

Main spindle diameter: 110 mm.
Main spindle inner taper: ISO 50.
Longitudinal travel of the main spindle (quill): 900 mm
Spindle vertical travel: 18.
Minimum and maximum speed: 5 to 1000.
Rotary table dimensions: 1,260 x 1,400 mm.
Rapid traverse for X, Y, Z, and W axes: 5,000 mm/min.
Table cross travel: 2,000 mm
Table longitudinal travel: 1,500 mm.
Rapid traverse in all movements: 2,000 mm/min.
Maximum weight on table: 8,000 kg Head vertical travel: 1,400 mm.
Drive motor power: 25 HP

For more information, to request additional details or a visit, you must register as a user on the aliquia.com website.
