CF22/25 (9670801)

Name: CF22/25 (9670801)
Brand: CORREA
SKU: 9518

CORREA

The CORREA DIANA25 fixed bed milling machine was designed for those sectors that, in addition to requiring high versatility and rigidity in machining, need optimal finishing conditions.
Fully revised milling machine, with excellent geometry and precision conditions. Guaranteed

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

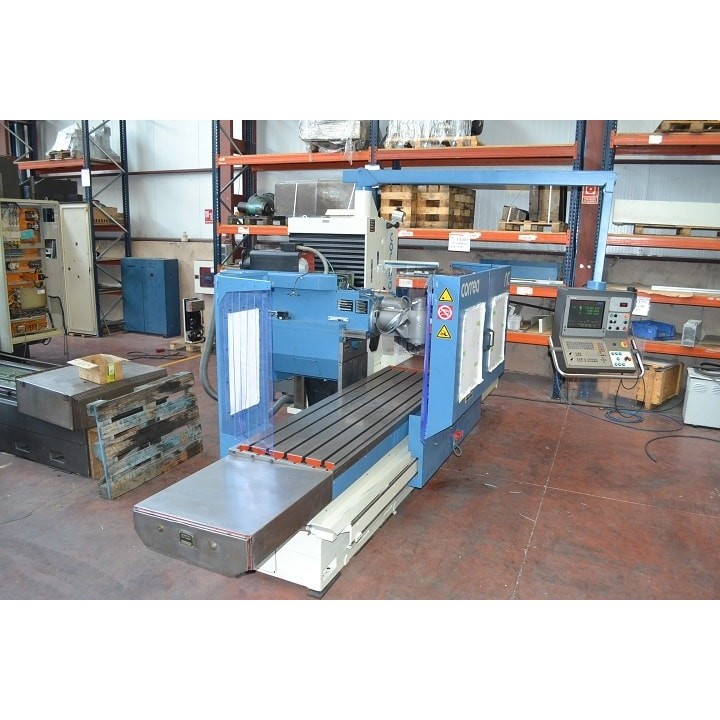

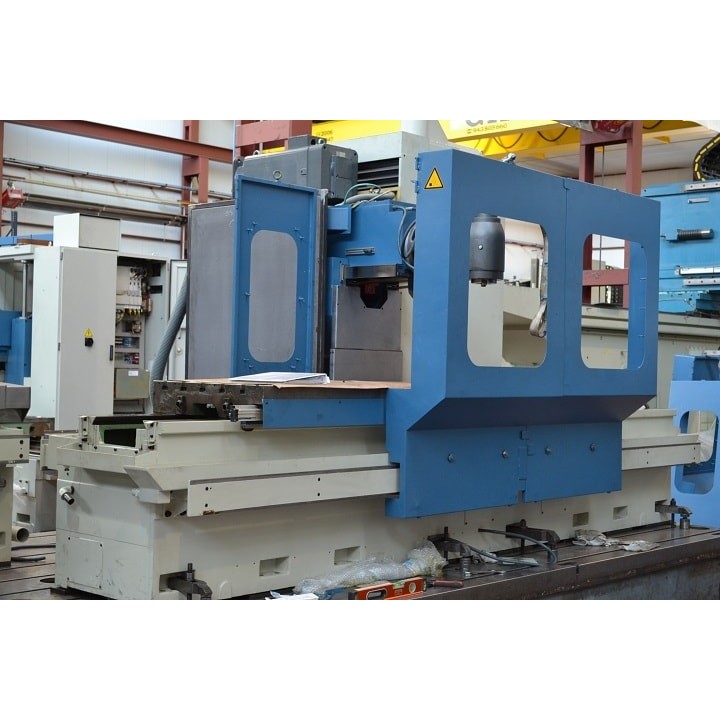

CORREA CF22-25 fixed bench milling machine (N-s: 9670801)
Year of manufacture: 1998

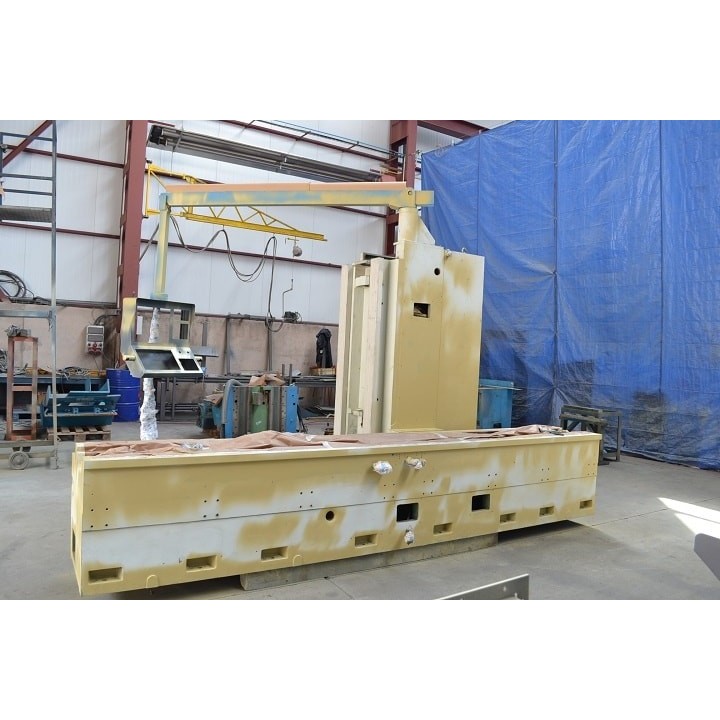

Status: Rebuilt
Numerical control: HEIDENHAIN TNC-407A
Table dimensions: 2,500 x 700 mm
Slots Number: 5
Slots dimensions: 22mm
Longitudinal travel X: 2,500 mm
Transversal travel Y: 800 mm
Vertical travel Z: 800 mm

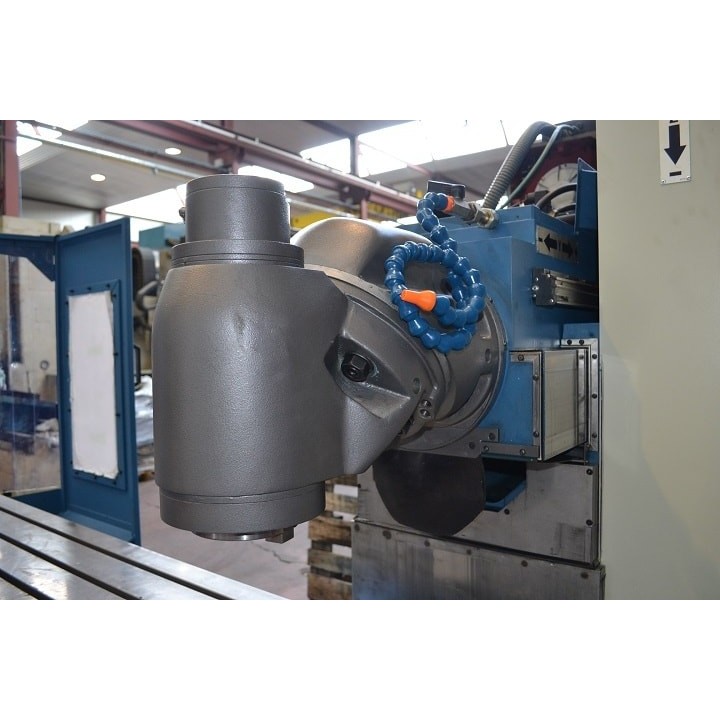

Head: Universal manual (U22)
Mooring tool: Hydraulic
Cone: ISO50 - DIN2080
Speed range: 20 - 4,000 r.p.m.
Mandrel Power: 22 kW
Work advances: 5 - 5,000 mm-min
Fast forward (X - Y, Z): 12,000 mm-min
Maximum weight on table: 4,000 kg
Approximate machine weight: 9,500 kg
Machine dimensions: 6,605 x 2,900 x 2,760 mm
ACCESSORIES:
Fairing
Electronic flyer: New! HR-510
Taladrina: External
Terms of sale:
Warranty: Mechanical part 6 months
Sale price (Ex Work): Consult
