Fuera de stock

A25/30 (9253802)

Name: A25/30 (9253802)
Brand: CORREA
SKU: 8699

CORREA

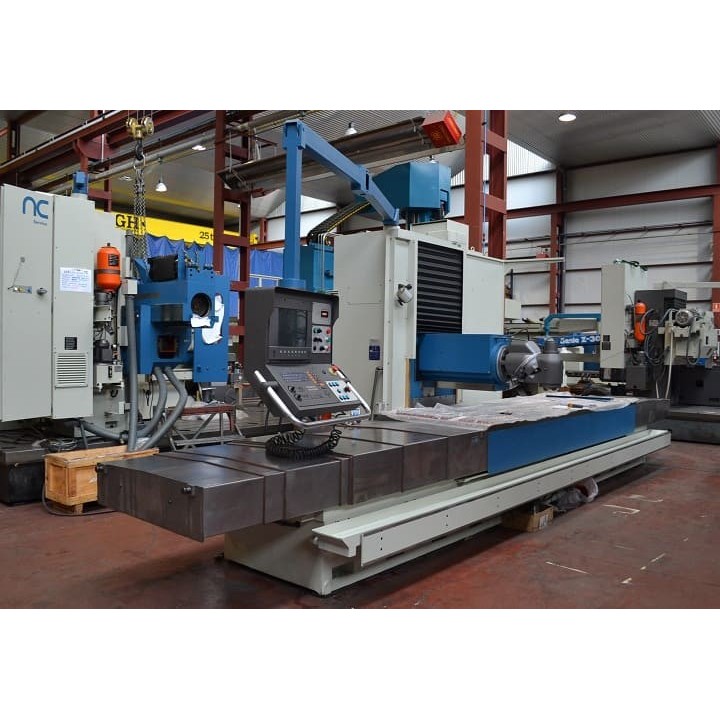

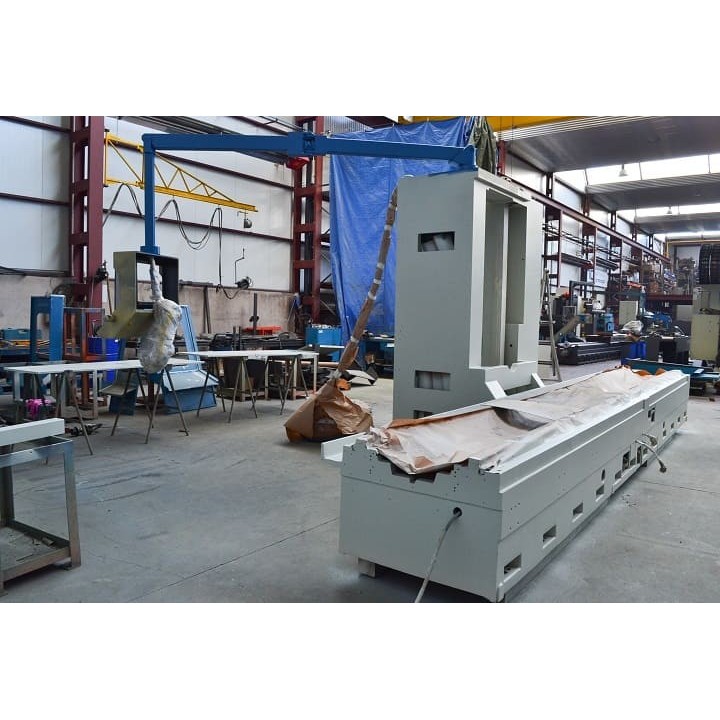

Bed type CORREA A25-30 milling machine fully mechanically inspected. The design concept of friction slideways brings this model with the rigidity and acuracy needed for strong and quality machining.

Country

Spain

Notificarme cuando esté disponible

¿Te interesa este producto? Envíanos un email y te avisaremos cuando esté disponible.

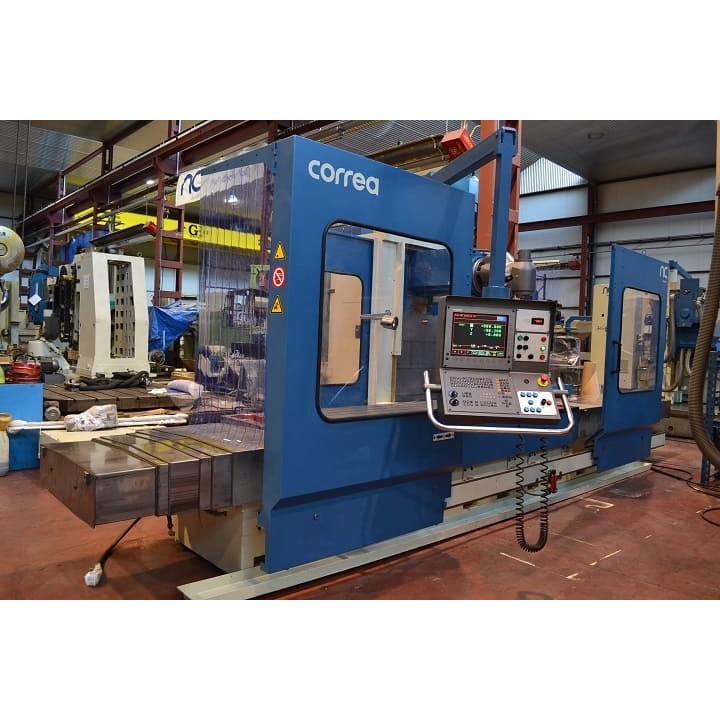

CORREA A 25-30 fixed bench milling machine
Year of manufacture: 1997
Condition: Revised and new paint

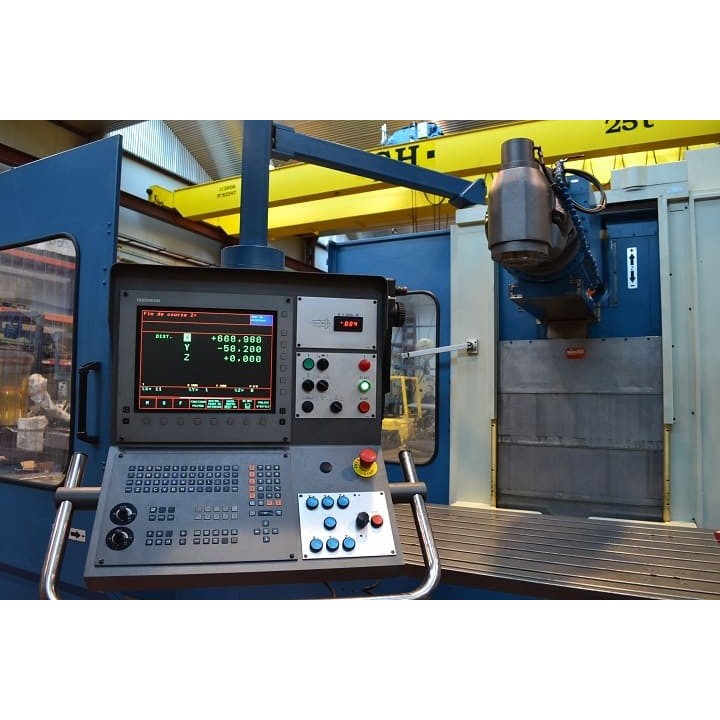

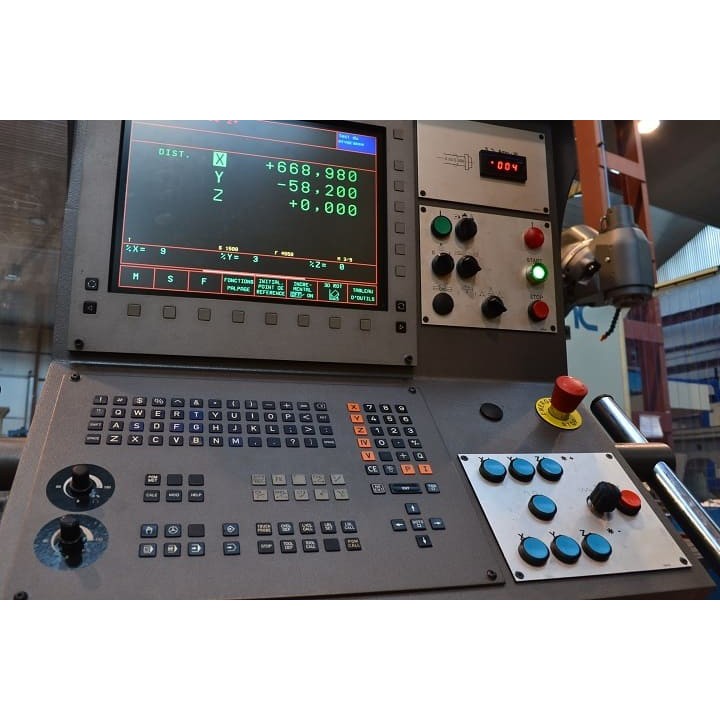

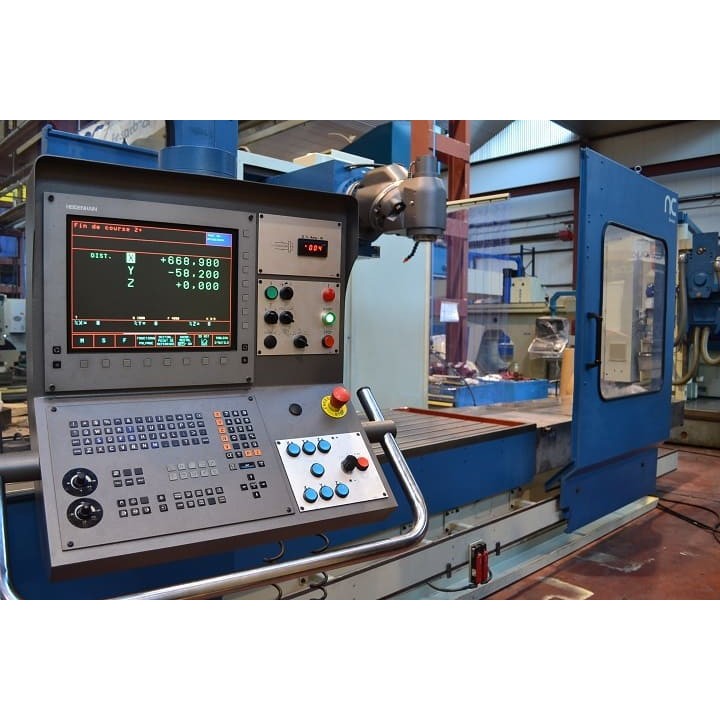

Numerical control: HEIDENHAIN TNC-426
Table dimensions: 3,000 x 1,000 mm
Number of slots in T: 8
T-slot dimensions: 22 mm
X travel: 3,000 mm
Y travel: 1,200 mm
Z travel: 1,000 mm

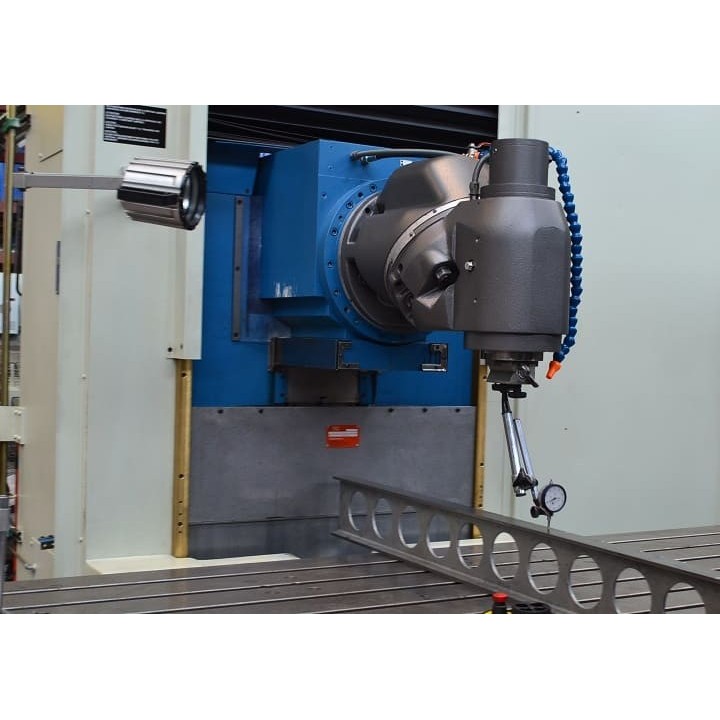

Head model: Universal Manual
Mooring tool: Hydraulic
Cone: ISO 50
Speed range: 20 - 3,000 rpm
Mandrel Power: 22 kW
Work advances: 2 - 5,000 mm-min
Fast forward X - 8,000 mm-min - Y, Z - 10,000 mm-min
Maximum weight on table: 7,000 kg
Approximate machine weight: 19,000 kg
Machine dimensions: 7,810 x 4,664 x 2,750 mm
ACCESSORIES:
Fairing: Yes
Electronic steering wheel: HR-410
Sale price (Ex Work): Consult
