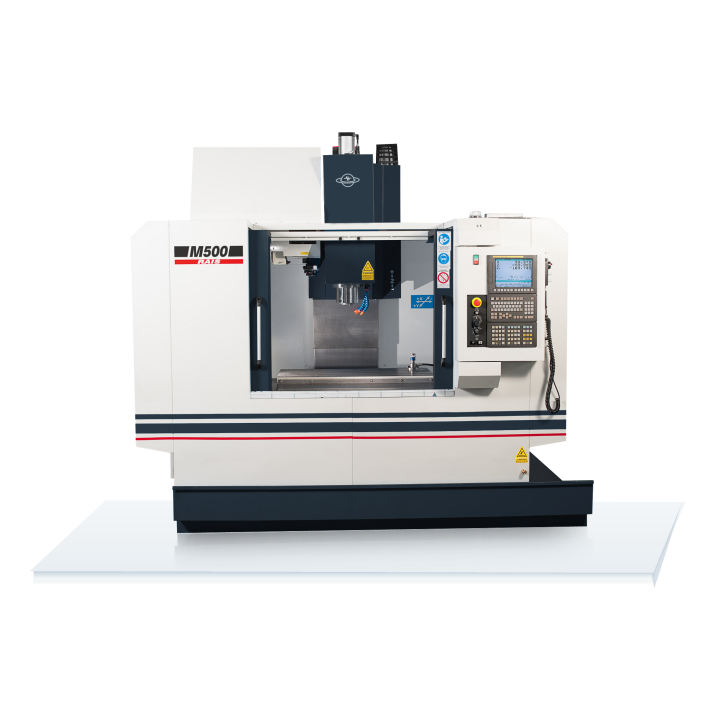

M500

MACHINE CAPABILITY AND ADVANTAGESAM

24 ATC fast tool change magazine - 2.8 sec.
High-quality housing castings of grey cast iron. Optimum ribbed base, column, spindle casing and table. Ensured for maximum rigidity and minimum bending under applied load conditions.
Cartridge type spindle, without need of maintenance. High precision bearings (P4 class). The increased axial tighting force eliminates vibrations at heavy cutting conditions.
Linear guide ways along the three axes - size 35, zero clearance. Stable cutting under full load conditions. Minimum friction when in motion. High precision and high speed with no need for adjustment during operational life.
All ball screws - high precision, class Р3, Ø40 mm OD, with a double nut, pre-loaded to control backlash. High precision of positioning and smooth operation.
Directly coupled to the ball screws AC servo motors along all axes: guaranteed excellent interpolation accuracy.
Telescopic guards along the three axes: long life of the ball screws and the linear guide ways; fast and efficient flushing of chips by means of coolant liquid.
Fully enclosed electrical cabinet with heat exchanger, accordance to CE requirements.
Fully enclosed splash duard. Swivel panel of the CNC control. Maximum convenience for adjusting and operation purposes.
Automated air blow during tool change ensures cleaning of the spindle cone and holder.
New Machine
Made in E.U
Note; We provide eny adjustment to request.
