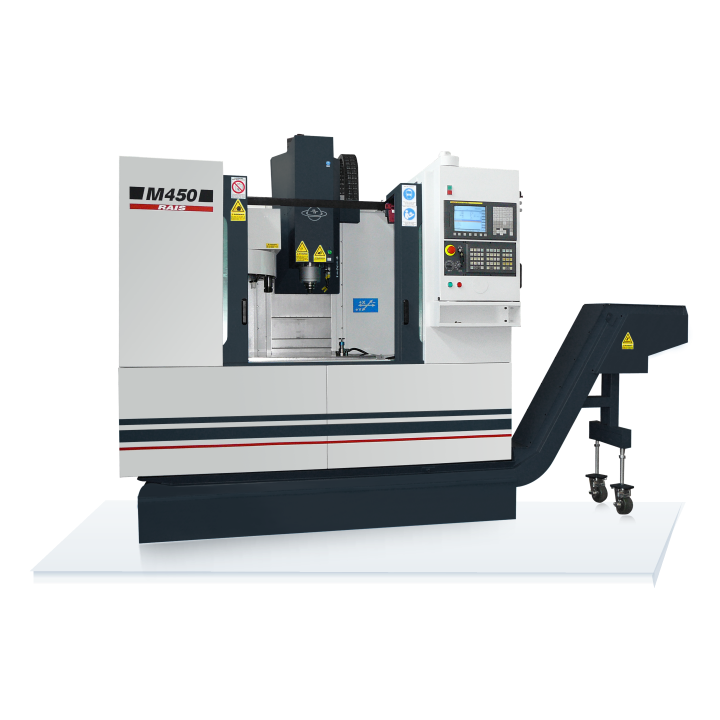

M450

Directly driven spindle assembly and high precision bearings: minimum run out of the spindle taper; improved smoothness of operation under high-speed machining conditions ; increased tool durability.
Linear guide ways along the three axes - size 25, zero clearance. Stable cutting under full load conditions. Minimum friction when in motion. High precision and high speed with no need for adjustment during operational life.
Telescopic guards along the three axes: long life of the ball screws and the linear guide ways; fast and efficient flushing of chips by means of coolant liquid.
All ball screws - high precision, class Р3, Ø32 mm OD, with a double nut, pre-loaded to control backlash. High precision of positioning and smooth ope-ration.
Automated air blow during tool change ensures cleaning of the spindle taper and holder.
Fully enclosed splash guard. Swivel panel of the CNC control. Maximum convenience for adjusting and operation purposes.
Directly coupled to the ball screws AC servo motors along all axes: guaranteed excellent interpolation accuracy.
High-quality housing castings of gray cast iron. Optimum ribbed base, column and spindle casing; guaranteed maximum rigidity and minimum bending under applied load conditions..
