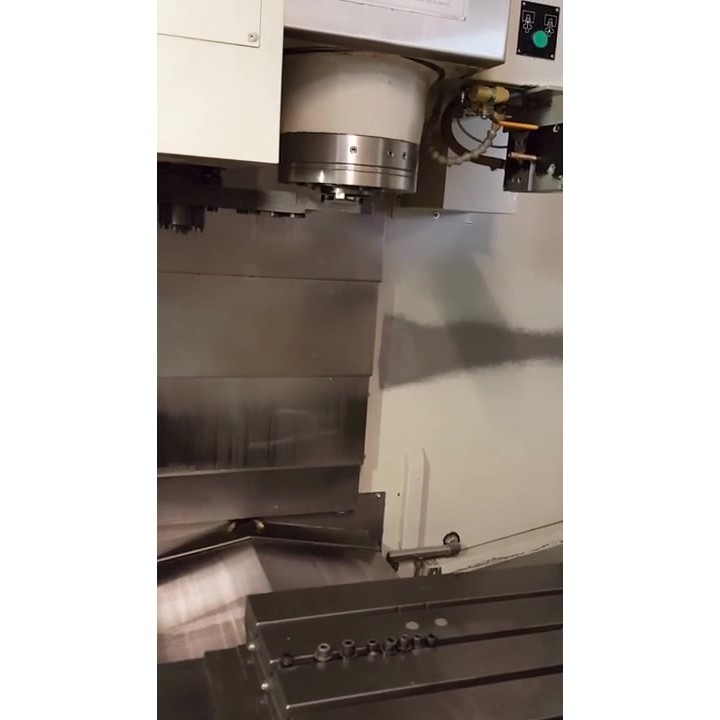

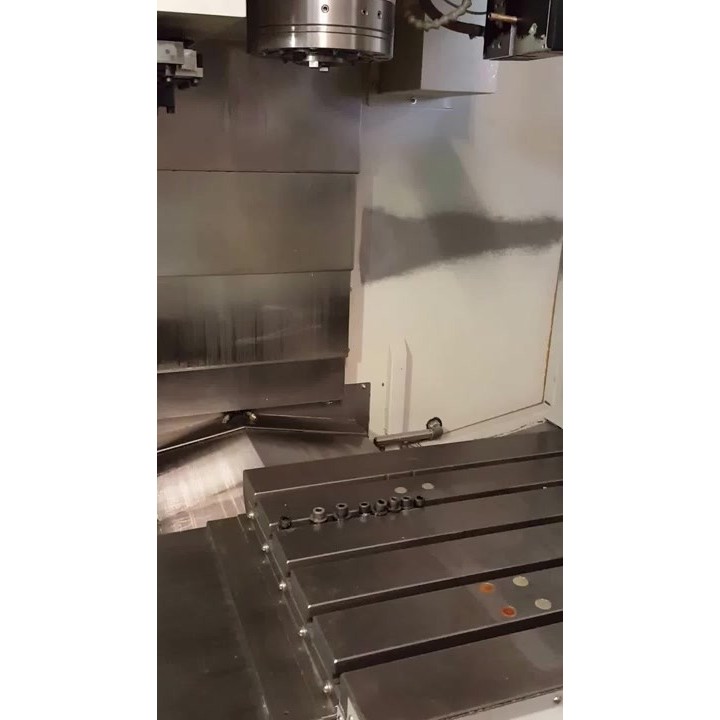

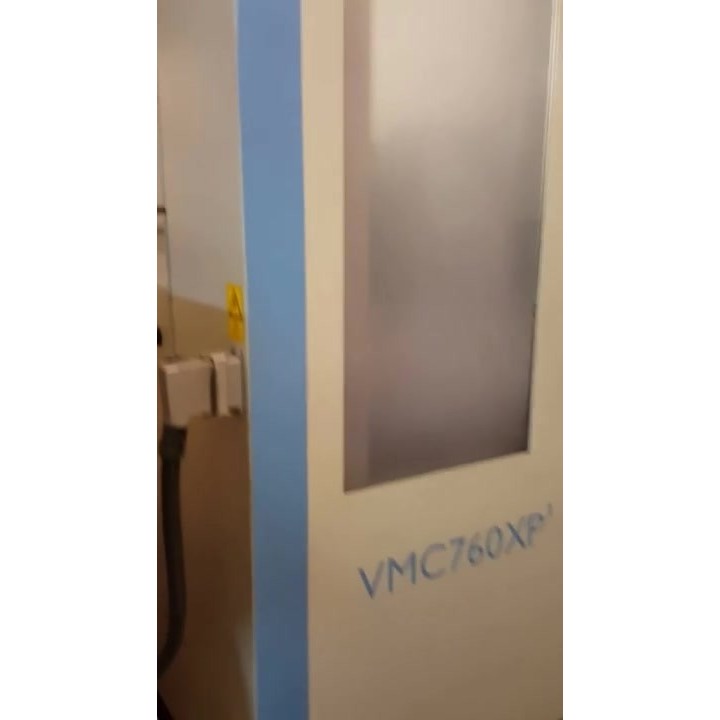

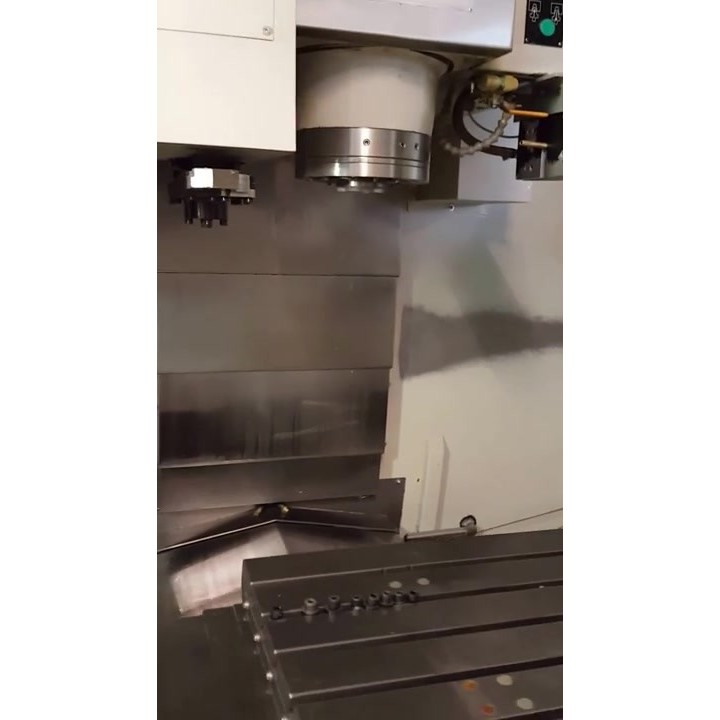

Hardinge Bridgeport XP3 760

FEEDRATE:
Rapid traverse rate: 43/43/36m/min (1690/1690/1410in./min)
WORKTABLE:
Table Load: 900kg (2000lbs)

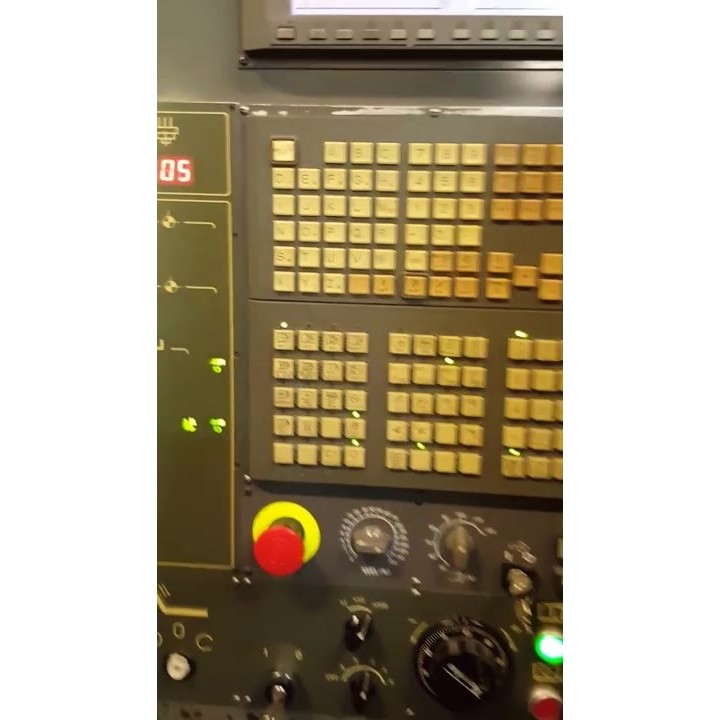

CNC CONTROL:
Fanuc: 18i MB4th axis preparation: Standard (No Drive however)
SPINDLE:
Spindle speed: 12,000rpm (Belt-driven)
Max Torque Fanuc: 118Nm (87ft-lb)
ATC:
Tool shank: BT40
Standard Carousel capacity: 30 Tool Diameter (Max.): 86mm <125> (3.4in.) <4.9>
Tool Weight (Max.): 7kg (15.0lbs)
Tool Length (Max.): 300mm (11.8in.)
Tool Change Times
Chip-to-chip/Tool-to-Tool time (turret-type): 4secs
ACCURACY:
Positioning: Ap 0.010mm (0.0004in.)
Repeatability Full Stroke (x axis): Ru 0.004mm (0.00016in.)
MACHINE SIZE:
Machine height: 2,940mm (116in.)
Floor Space: 2,850 x 3,000mm (112 x 118in.)
Mass of Machine: 6,500kg (14,300lbs)
