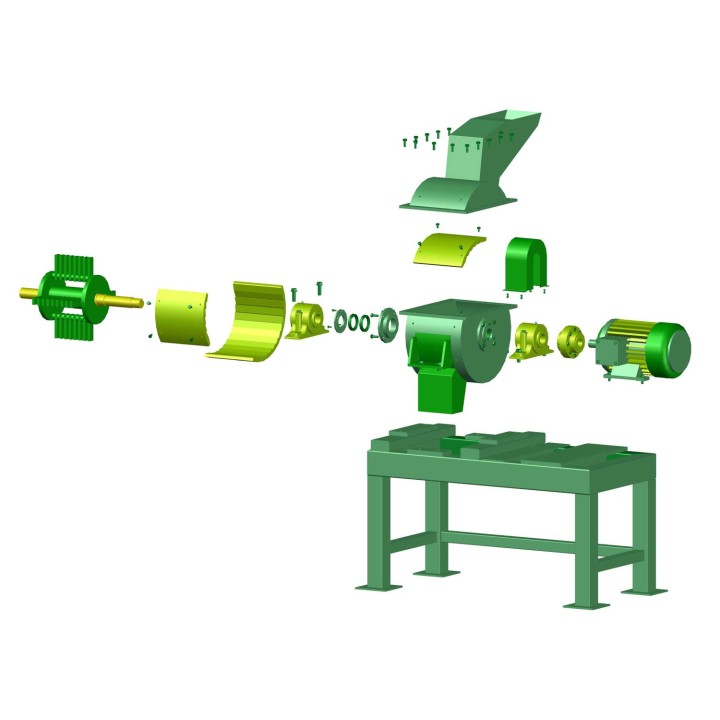

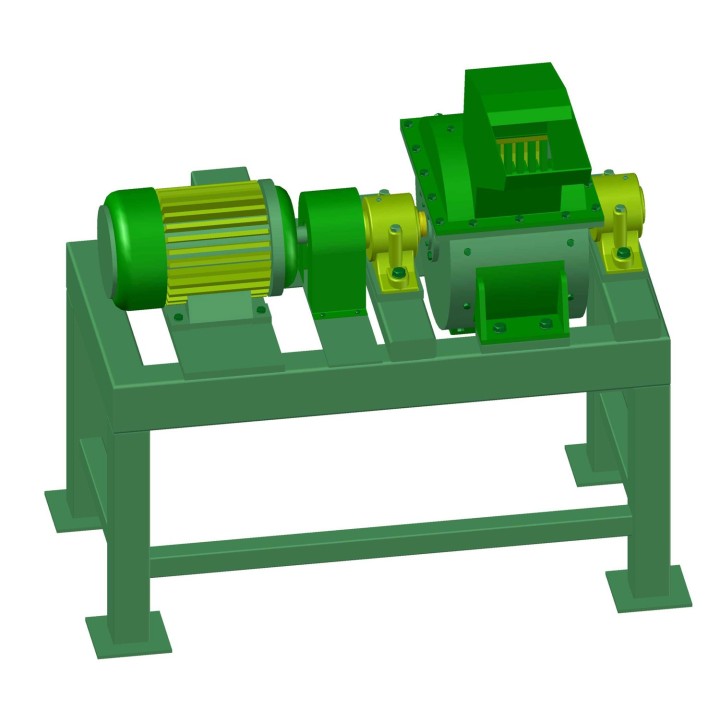

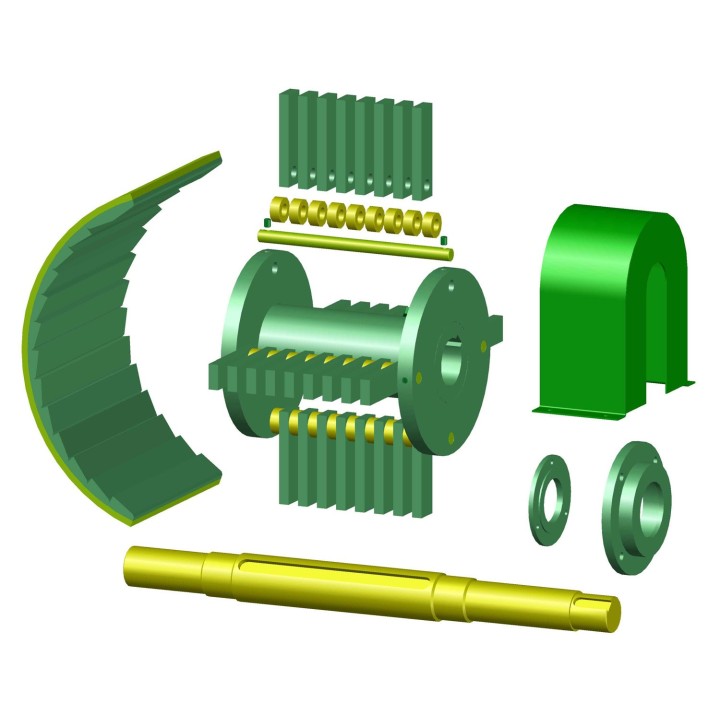

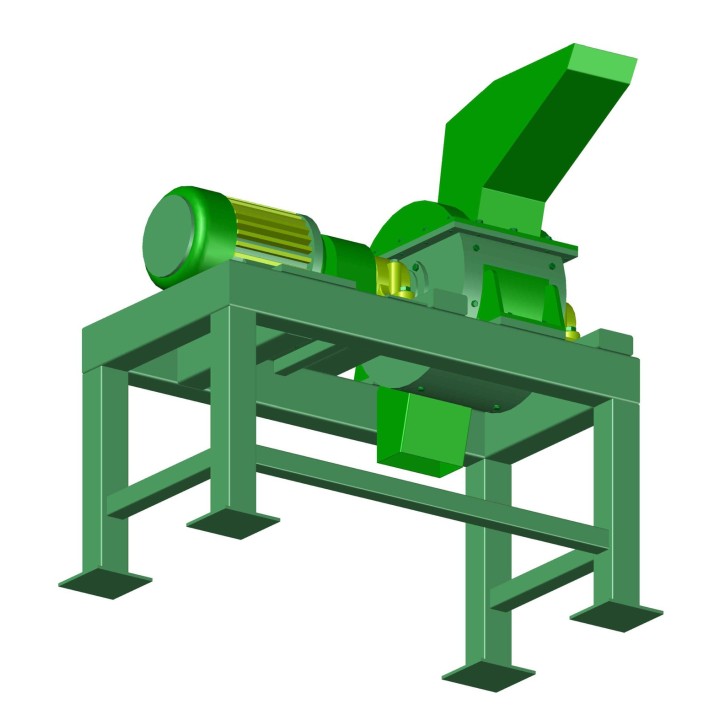

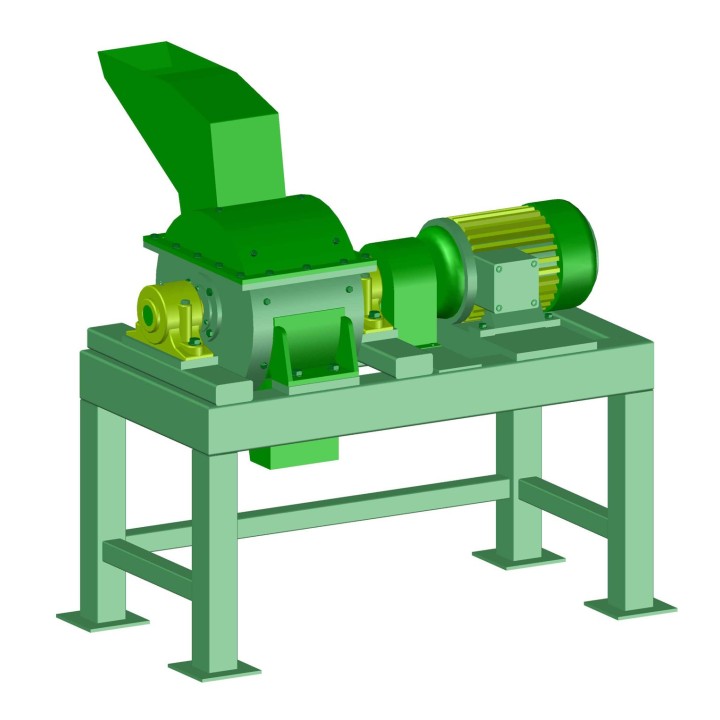

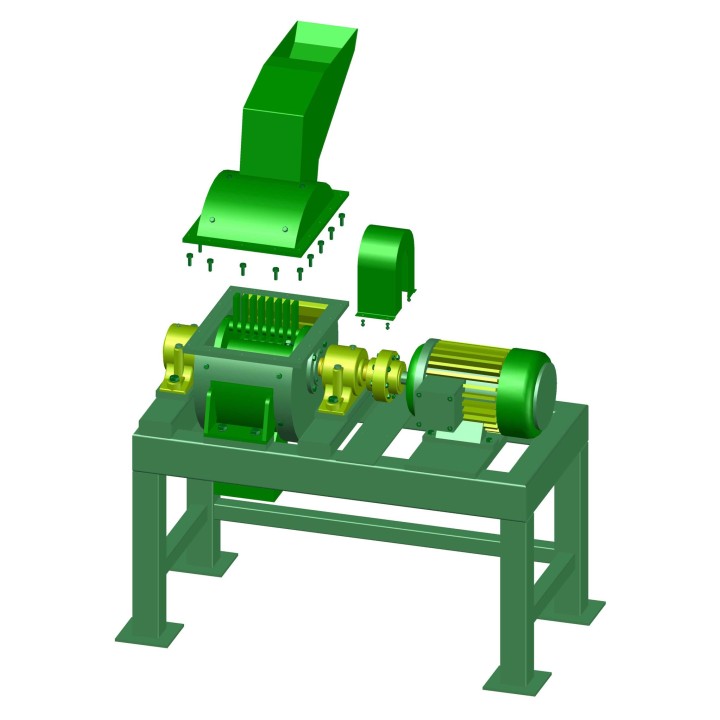

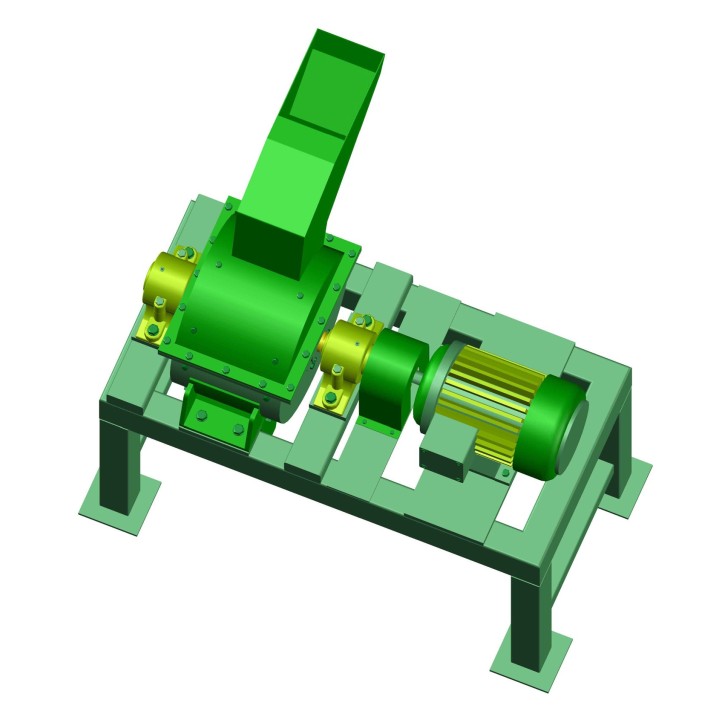

Complete drawings of a Hammer Crusher (Mill) are sold, whose design characteristics are: —Working power 10HP (direct gear coupling) —Speed ​​1500RPM —Number of hammers (2 rows of 9 hammers) + (2 rows of 8 hammers) -34 crossed hammers - Crusher chamber inlet and outlet face 180 °.
The author of the design is the well-known Ing Teodoro Kresisch, and you can buy the complete plans in ebook (pdf) format, in A4 size, ready to print, visiting the page of Editorial Libroptica, in technical books, or click on the following link http: - www.libroptica.com-Hammer Breaker.html
