TritPlast

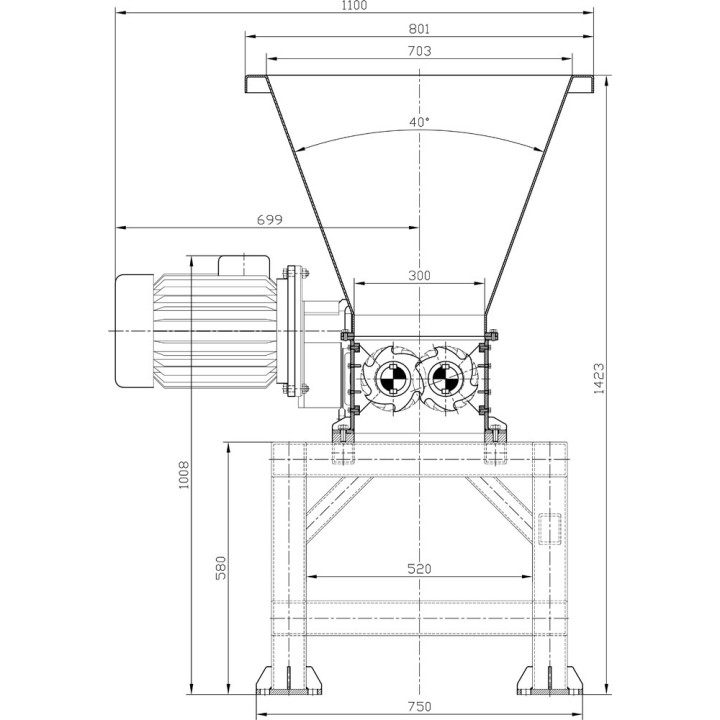

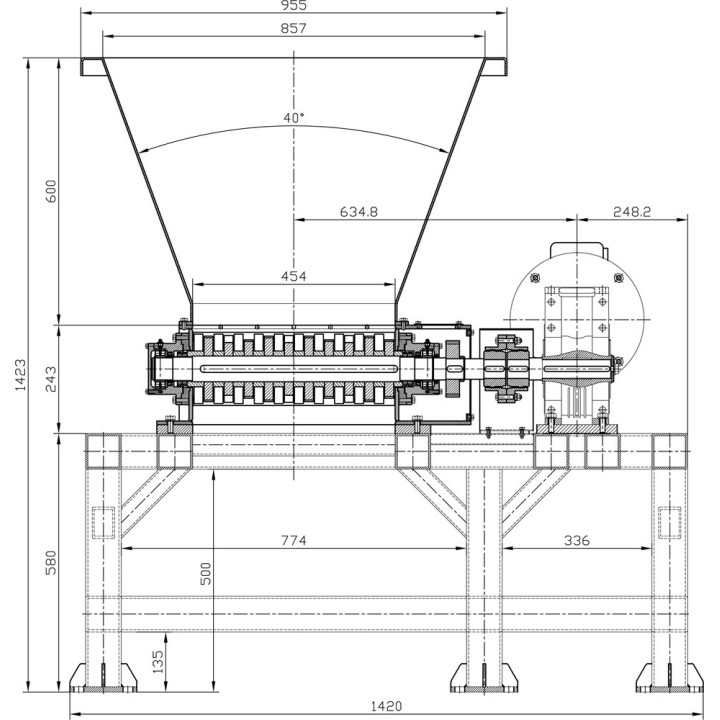

Complete plans are developed to manufacture the Crusher.

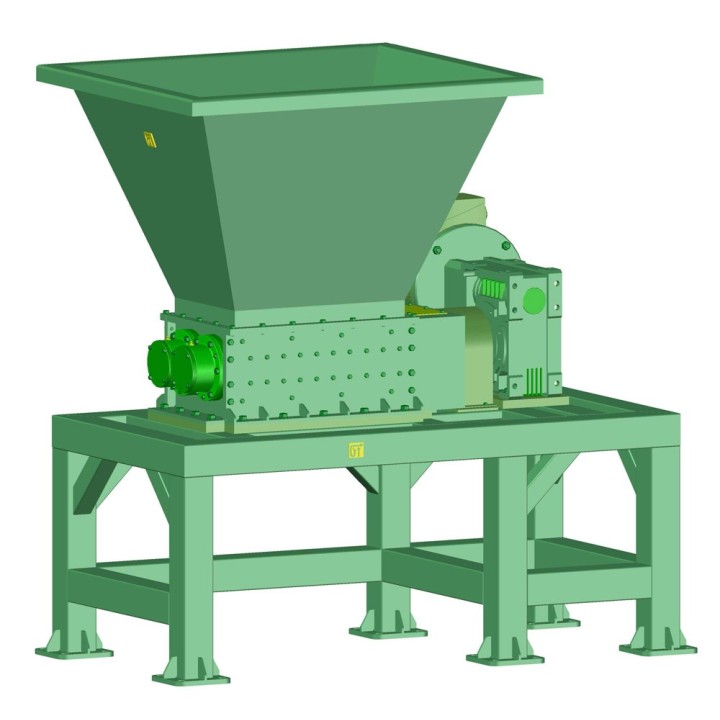

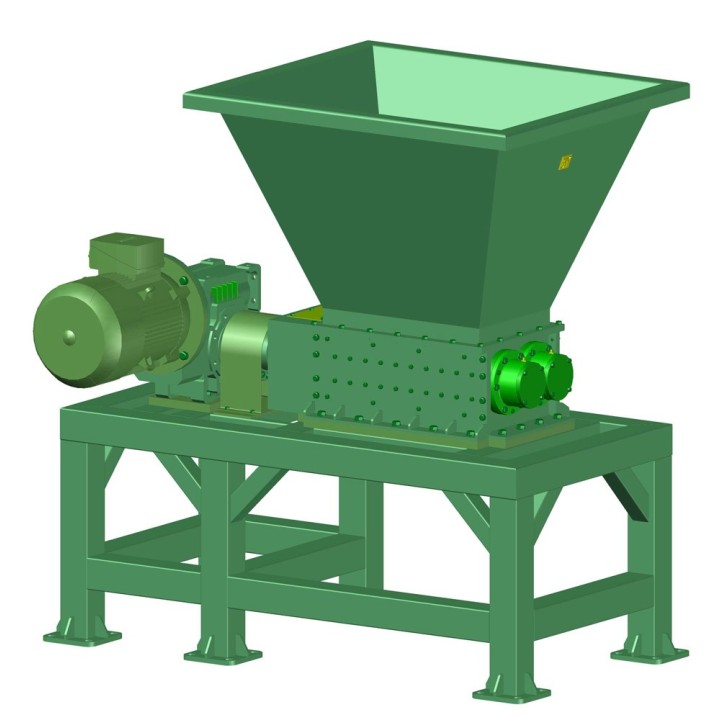

The action of two opposing blades axes and the scrapers make an equipment suitable for shredding all kinds of plastic bottles, drums, food and detergent containers, plastic sheets and tubes, hospital plastic products, irrigation pipes and toys.
The possible crushing materials are PET - HDPE - LDPE - PVC - PP - PS.
Power: 10 HP (7.5kW)
Spin: 36 RPM
Rotating Blades: 10 + 10 (two axis)
Scraper Blades: 10 + 10
Inlet: 857 x 703 mm
Grinding chamber (and outlet): 454 x 300 millimeters
Production: 70-120 Kg-h
Plastic-Maximum Thickness: 4 mm
Equipment Weight: 535 Kg
Only complete drawings are sold to build the equipment.
The design is by the well-known Ing Teodoro Kresisch, and you can buy the complete plans in pdf format. The payment method is online.
