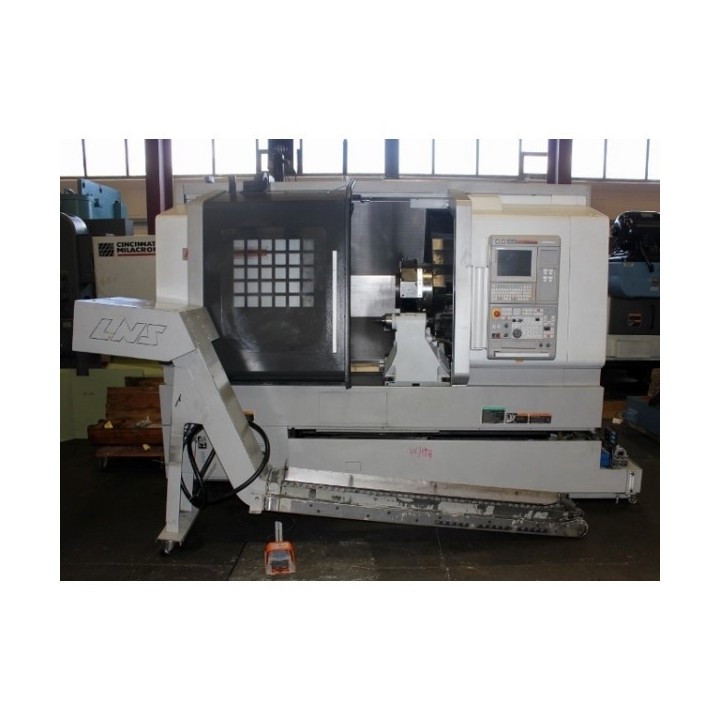

MORI SEIKI NLX2500Y/700

Equipped With:

#M-730BM MITSUBISHI four-axis CNC with MAPPS (Mori Advanced Programming
Production System) conversational automatic programming, USB ports, and ethernet
interface
Twelve station turret with built-in direct drive milling motor and Y-axis control

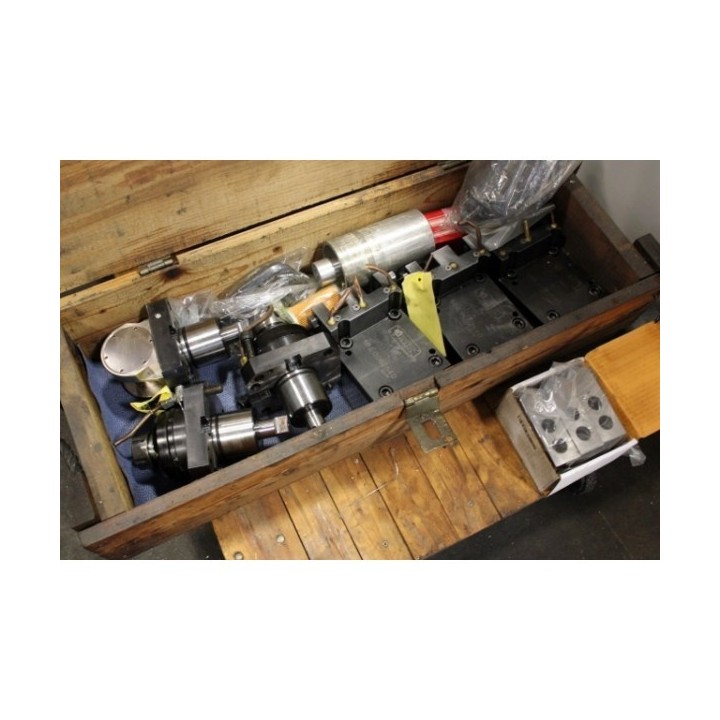

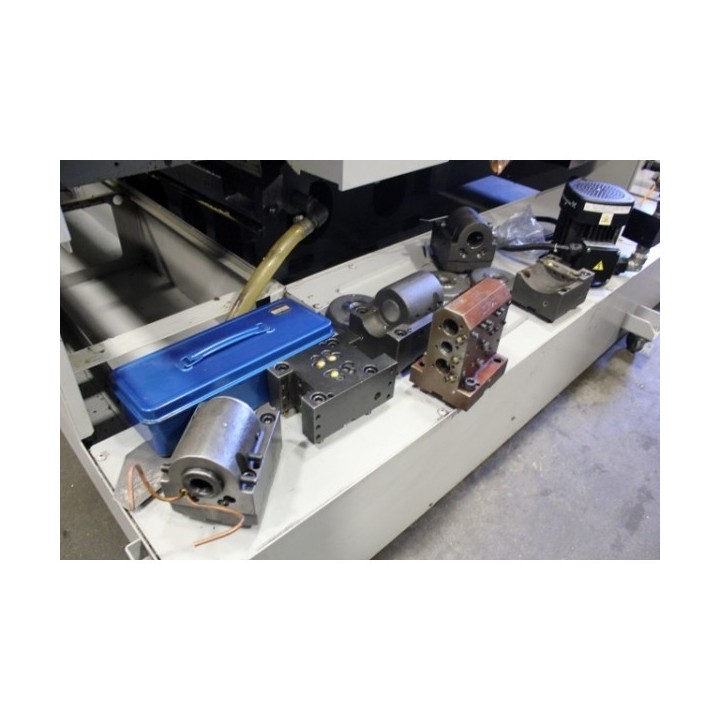

(6) Live, (4) O.D., and (2) I.D. tool holders
10" Diameter KITIGAWA three-jaw hydraulic chuck
Remote electric foot pedal for the clamping and unclamping of the hydraulic chuck
Tailstock with built-in center
LNS Turbo hinge-type chip conveyor
Automatic door option
Tool pre-setter
DAIKIN "Eco Rich" hydraulic system with 1 H.P. pump motor
DAIKIN oil cooling unit
D-30 Chip Blaster high pressure coolant unit
Coolant system with external pump and tank
4.1 H.P. X, Y, & Z axes feed motors
7.5/5 H.P. (7.5 Minute/Continuous Duty) rotary tool drive motor
34.7/30 H.P. (30 Minute/Continuous Duty) main spindle drive motor
Machine is wired for 3/60/220 volt operation.

Approximate Weight (Machine Only): 13,640 Lbs.

Approximate Dimensions (Machine Only): 120" L-R x 82" F-B x 84" High
