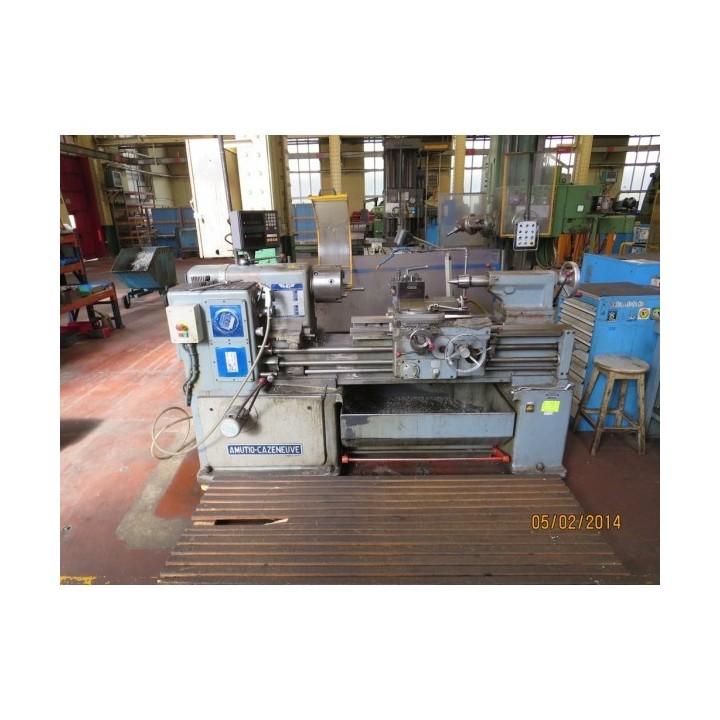

Engine Lathe CAZENUEVE mod. HB 575

Distance between centers: 1500mm
Height between centers: 250 mm
Diameter over bed: 575 mm
Diameter inside the spindle axis: 50 mm
Diameter over cross slide: 220 mm
Maximum run cross slide: 305 mm
Power Output: 12.5 - 10-7 kw
Nº Head shaft speeds: 18
Spindle speed: 30-1500 rpm

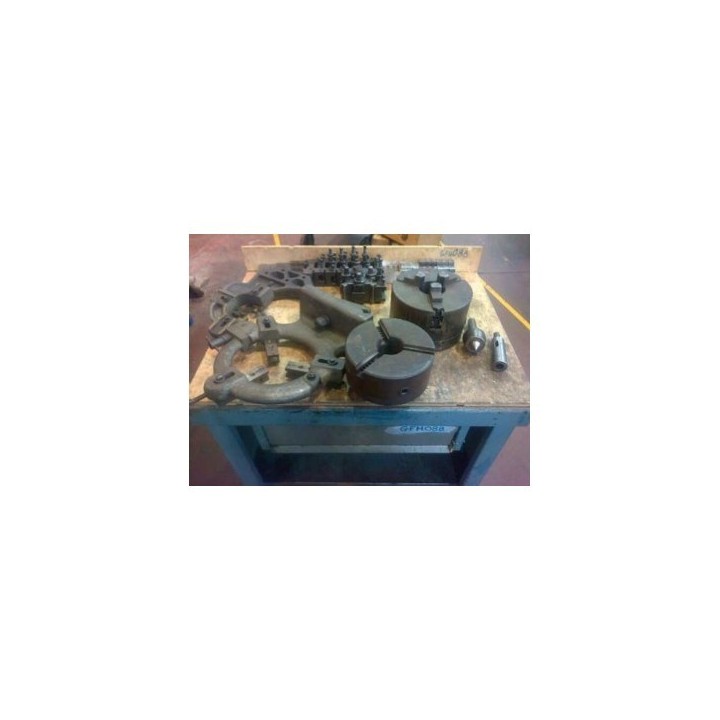

Fruit Three claws of 320 mm in diameter
Chip conveyor and coolant pump
Stop System Emergency
Main spindle motor: 12 Hp
Dimensions: 3,030 x 1,000 x 1,345 mm
Weight Approximately: 3 Ton.
Digital positioner
